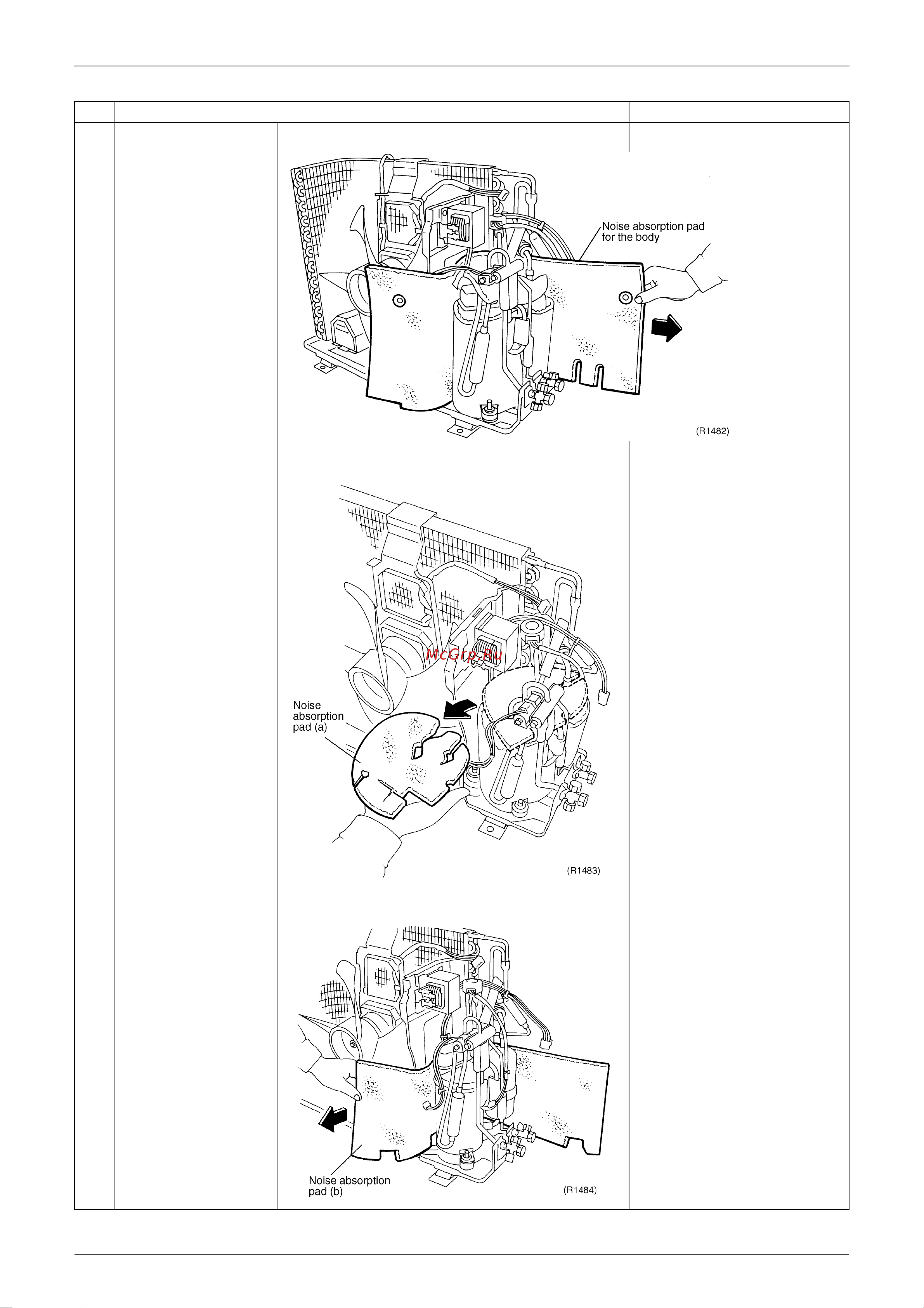

Outdoor Unit (25/35 class) Si21-205A
276 Removal Procedure
2
Pull out the noise
absorption pad for the
body.
3
Pull out the top pad of
the noise absorption
(a).
Since the slit prepared for
the piping on the noise
absorption pad is torn easily,
remove the pad carefully.
4
Pull out the noise
absorption pad (b).
When restoring, the noise
absorption pad should pass
the internal side of the
piping.
Step Procedure Points
