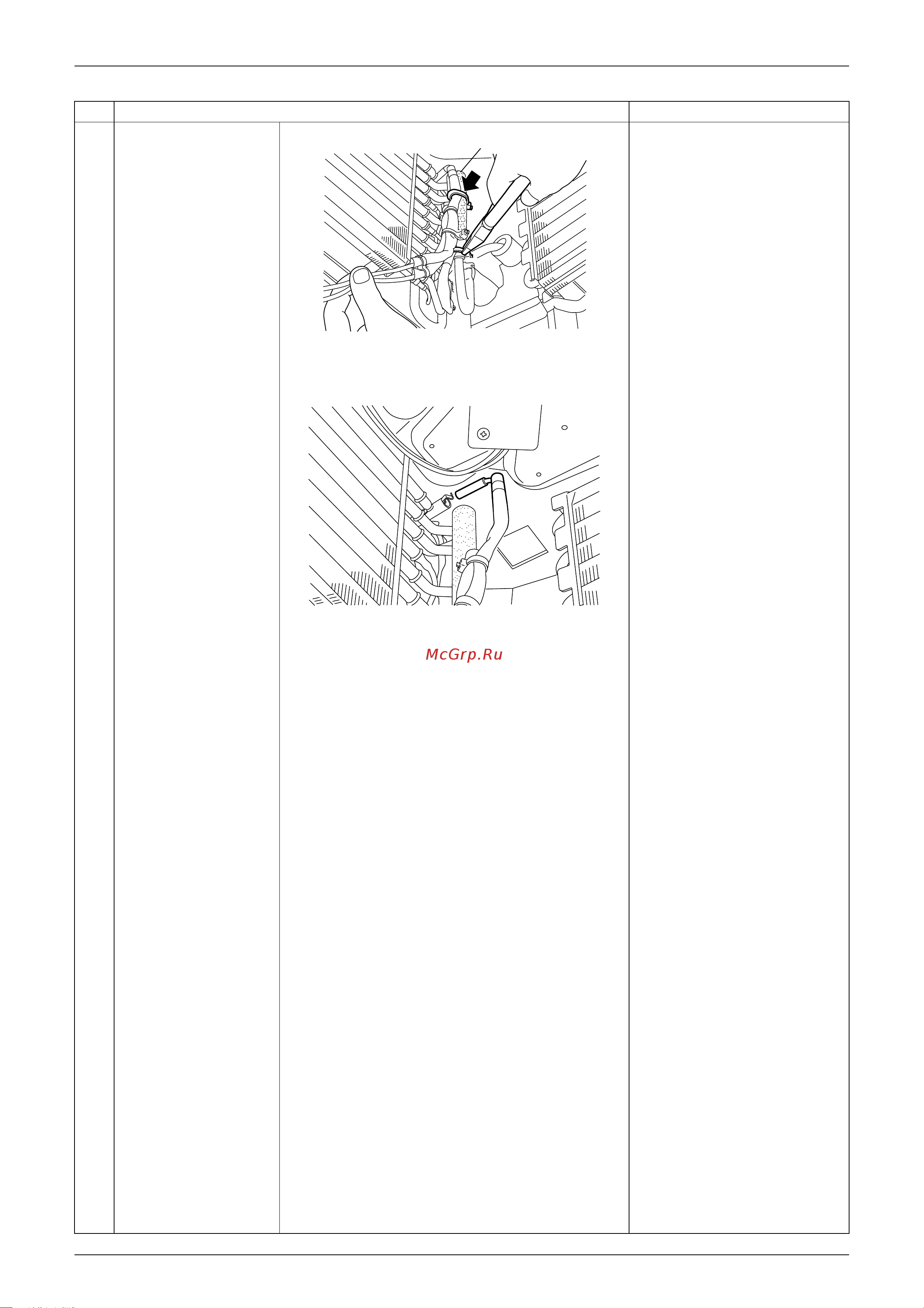

Si21-205A FFQ25/35/50/60BV1B
Removal Procedure 245
5
Take out the two tie
wraps fixing the anti
sweat tube of header
and thermistor.
(Be sure not to take out
other tie wrap.)
Heat resistance tie wrap is
used. Be sure to use a heat
resistance tie wrap when
installing new thermistor.
∗
Heat resistance tie wrap
Parts No. :1278921
(Drg No. :4SA90202-1)
6
Pull out the thermistor
from the insertion pipe.
Thermistor for heating :
The upper one wrapped
with a yellow tape
Thermistor for liquid
pipe :
The lower one without
taping
Replace thermistor as an
ass'y. (Two thermistors are
bound with special heat
resistance tube.)
Step
Procedure Points
(S2673)
Anti sweat tube
(S2674)
