Si21-205A FFQ25/35/50/60BV1B
Removal Procedure 247

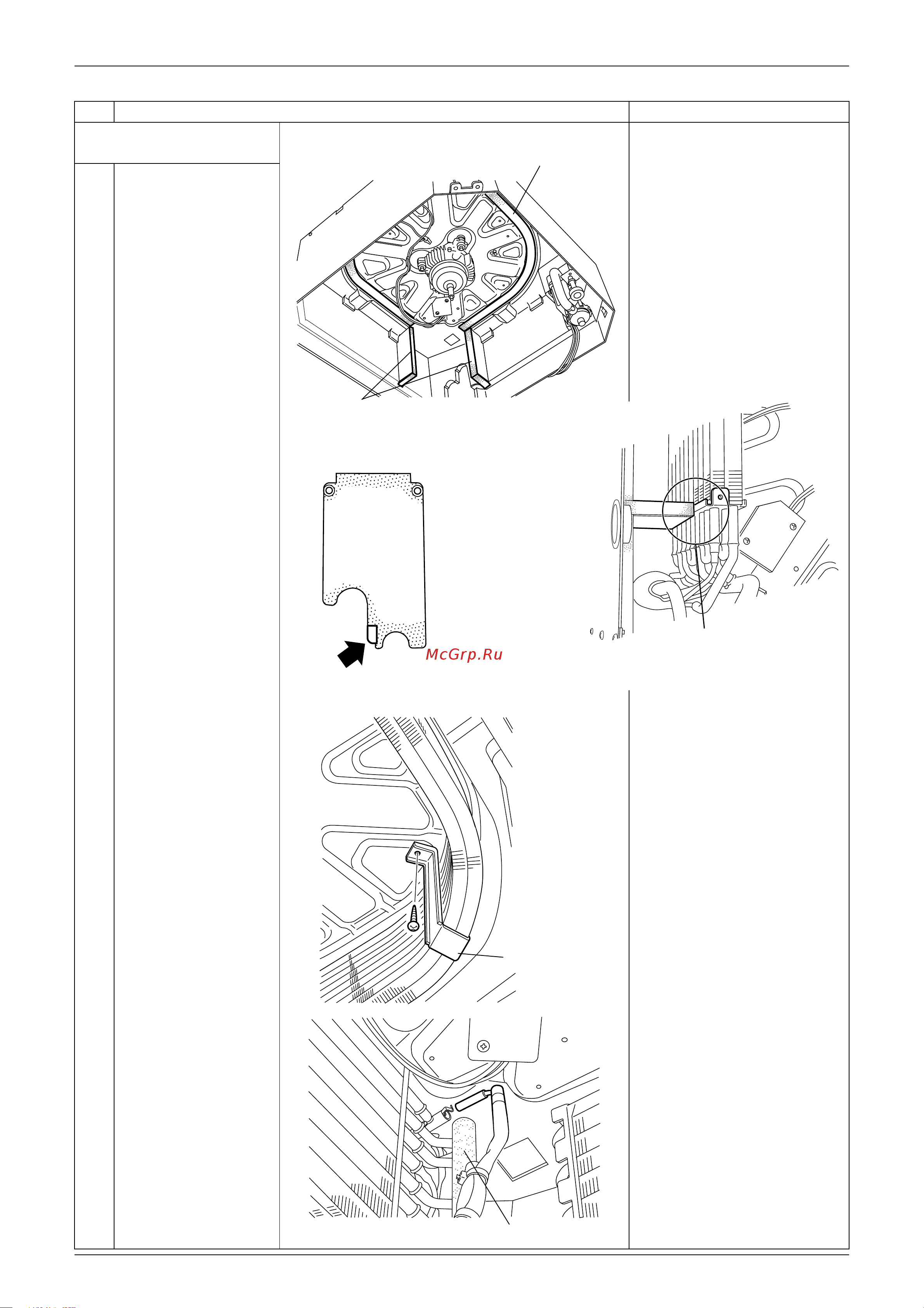

2. Installing the heat
exchanger
1
Insert the heat
exchanger in the
groove of ceiling
polystyrene foam
properly, and bring the
tube plate section of
heat exchanger into
intimate contact with
the polystyrene partition
plate correctly.
2
Insert the claw section
of pipe fixing plate into
the contracted part of
the external plate
securely.
3
Install the heat
exchanger mounting
plate.
4
Insert two thermistors.
Then cover the header
by anti sweat tube.
Set the lead wire with yellow
tape (for heating) upper side
while that with no tape (for
liquid) lower side.
Step
Procedure Points
Groove of ceiling polystyrene foam.
Polystyrene partition plate
for heat exchanger tube plate
(S2678)
Bring the heat exchanger
tube plate section into intimate
contact with polystyrene partition
plate without clearance.
(S2680)
(S2679)
Claw section
Heat exchanger
mounting plate
(S2681)
(S2682)
Anti sweat tube
