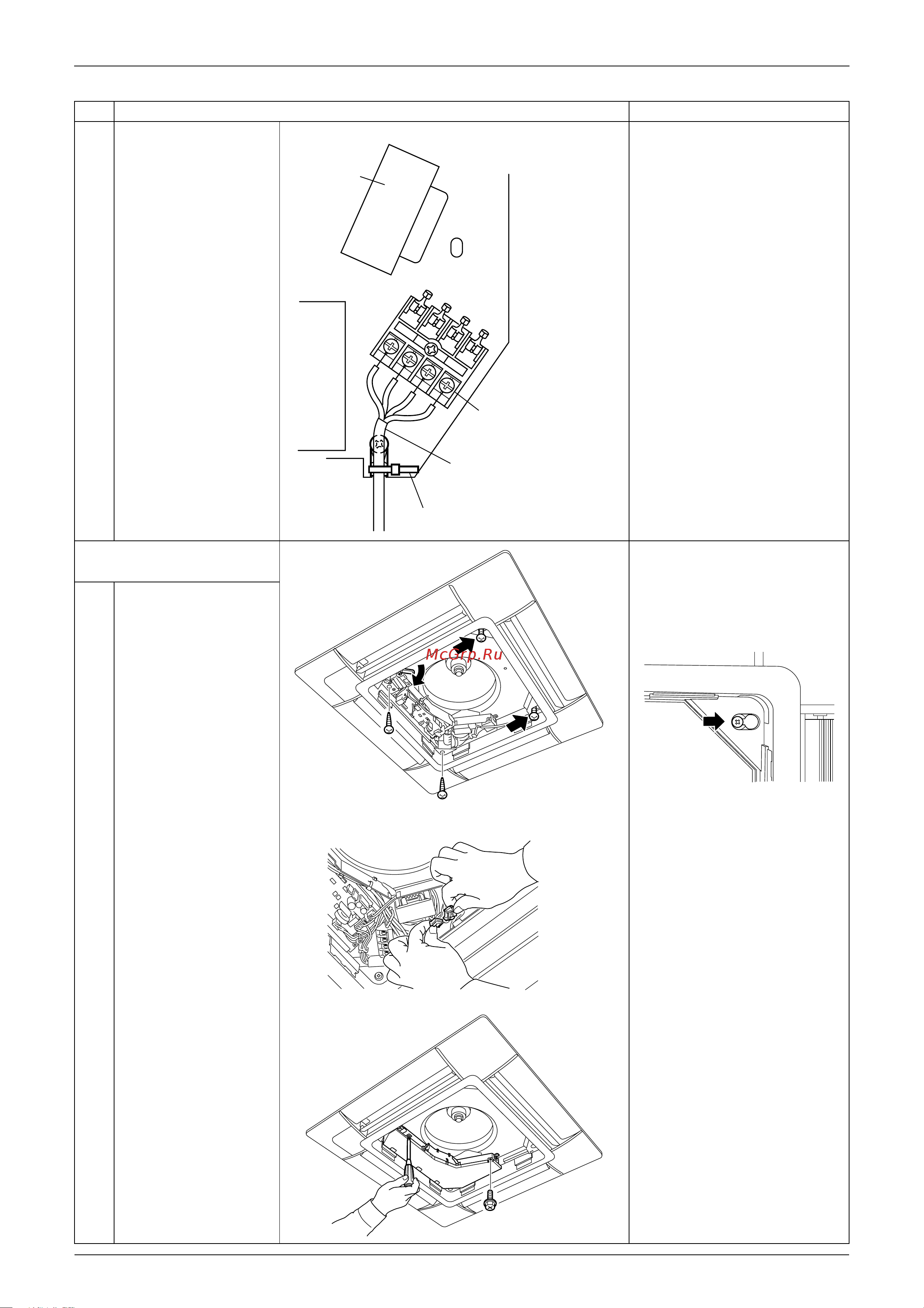

FFQ25/35/50/60BV1B Si21-205A
252 Removal Procedure
3
Re-connect the outdoor
unit connection wire,
the earth wire and wire
of remote controller as
they were, and fix them
securely with tie wrap.
(Only when install the
switch box)
Be sure to fix the lead wire to
be connected to the
connector X10A for low-
tension cable of transformer
to the switch box with tie
wrap
.
(The tie wrap is used for
preventing the wire from
contact with a hot part on the
PC board.)
3. Installing the decoration
panel
1
Put the two holes on the
decoration panel to the
panel mounting screws
and slide the panel, turn
the stoppers to prevent
the panel from falling
down, then install the
remainder two screws.
When installing the
decoration panel, be careful
not to catch the lead wire.
2
Insert the lead wires of
swing flap to the
connector on the PC
board.
3
Install the cover of
switch box and the
grille.
Step
Procedure Points
Power
transformer
Tie wrap
Terminal of outdoor unit
connection wire
Outdoor unit connection
wire and earth wire
(S2691)
PC
board
(S2692)
(S2693)
(S2637)
(S2636)
