Outdoor Unit (25/35 class) Si21-205A

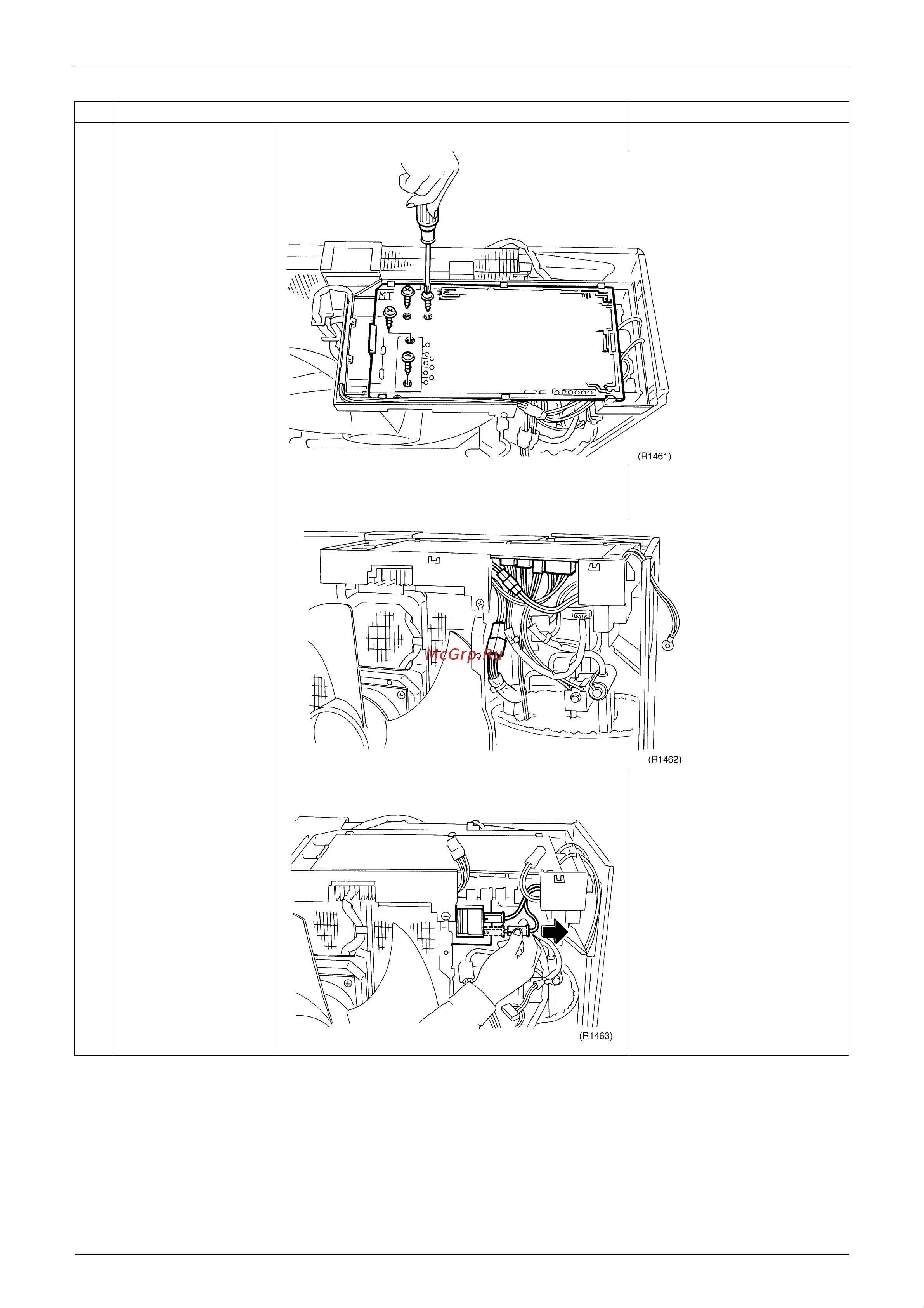

268 Removal Procedure
2
Remove the four
screws fixing the PCB.
3
Disconnect the six wire
harness.
4
Disconnect the two
connectors of the
reactor.
There is another reactor
located on bottom frame.
Fasten clamp materials as
before when re-assembling.
Step Procedure Points
