Field Piping and Wiring Si21-205A
46 Field Piping and Wiring
(1) For piping facing back.
•
Remove the rear penetration lid and set the piping. (Refer to Fig. 14.16)
(2) For piping facing up.
•
When setting the piping to face up, the L-shaped branch piping kit sold separately is
required.
•
Removing the top penetration lid and use the L-shaped branch piping kit sold separately to
set the piping. (Refer to Fig. 14.15)
(3) For piping facing right.
•
Cut out a slit hole on the dressing board (right) and set the piping. (Refer to Fig. 16)
•
When piping is complete, cut the removed penetration lid into the shape of the piping using
scissors and attach. As when before removing the top penetration lid, secure the lead lines
for the swing motor and thermistor by passing them through the clamp section on the top
penetration lid. (Refer to Fig. 14.17)
•
When doing this, block any gaps between the piping penetration lid and the pipes using putty
to prevent dust from entering the indoor unit.
Insulation for gas pipe (6) (attached)
Small sealing pad (9) (attached)
Wrap from the bottom up
Gas piping
Liquid piping
Insulation for liquid pipe (7) (attached)
Clamp (4) (attached) (× 4)
Attach to the bottom (For both gas piping and liquid piping)

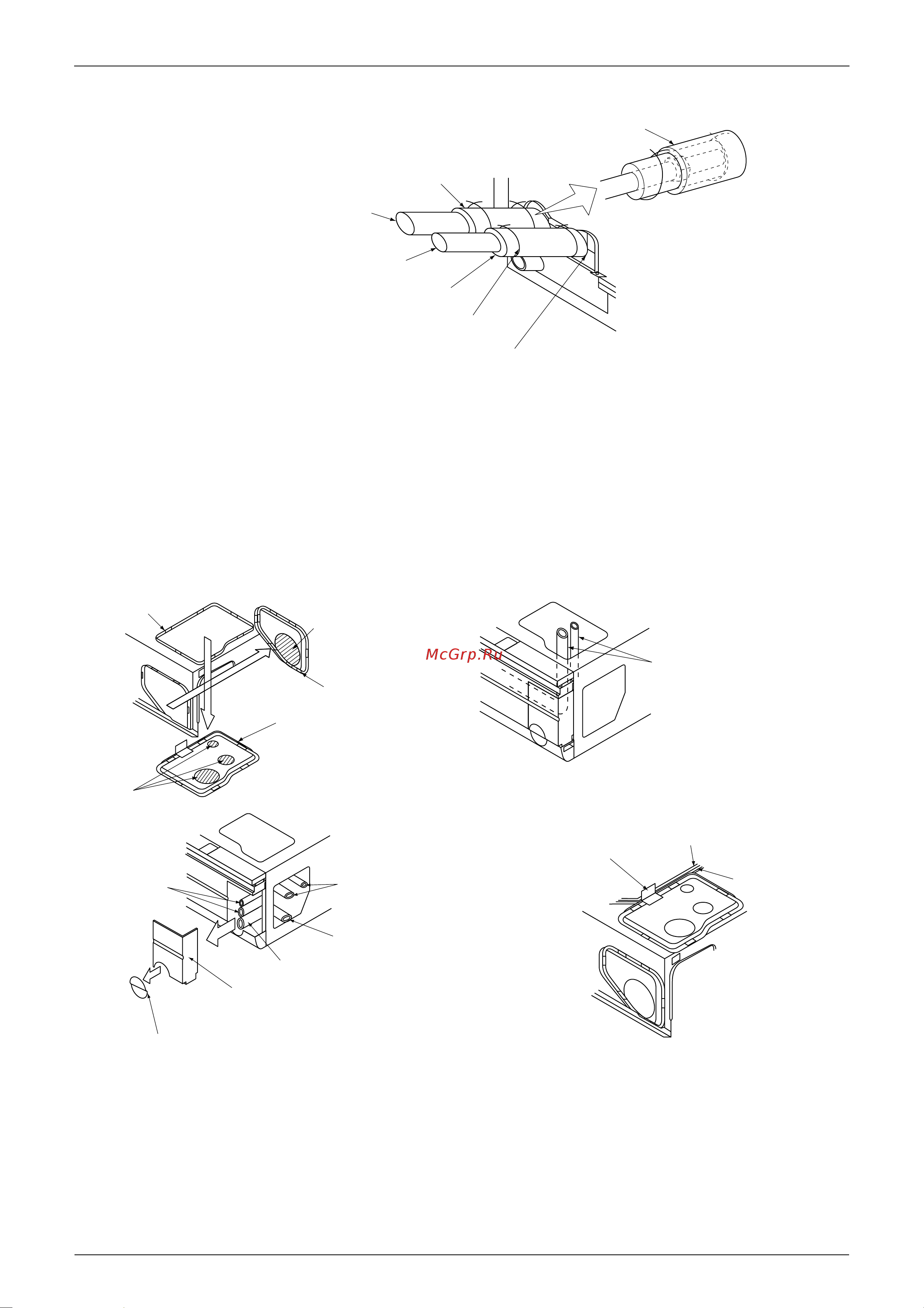

Fig. 13
Rear-facing
refrigerant piping
Rear right-facing
drain piping
Right-facing drain piping
Right-facing
refrigerant
piping
Dressing board (right)
removable part
If only setting the drain piping to
face right, cut this section only.
Top plate
Cut out
Rear
penetration lid
Top penetration lid
Cut out
Upward-facing
refrigerant piping
L-shaped branch piping
kit (Optional accessories)
Top penetration
lid clamp section
Thermistor lead line
Swing motor
lead line
Fig. 14 Fig. 15
Fig. 17
Fig. 16
