Indoor Unit Si21-205A
78 Function and Control

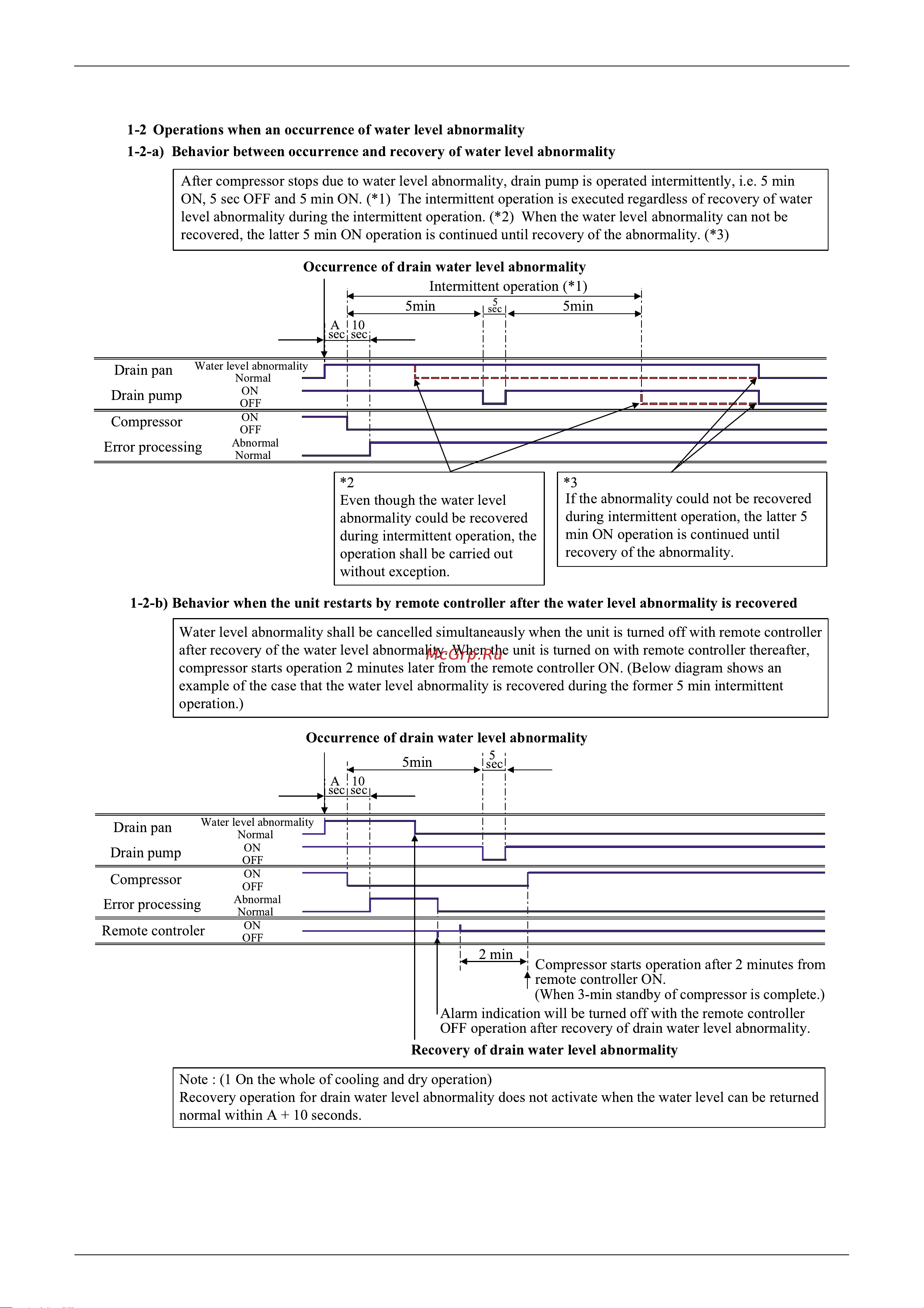

1-2 Operations when an occurrence of water level abnormality
1-2-a) Behavior between occurrence and recovery of water level abnormality
Occurrence of drain water level abnormality
5
sec
A10
sec sec
1-2-b) Behavior when the unit restarts by remote controller after the water level abnormality is recovered
Intermittent operation (*1)
5min 5min
Compressor
ON
OFF
Drain pan
Water level abnormality
Normal
Drain pump
ON
OFF
Error processing
Abnormal
Normal
After compressor stops due to water level abnormality, drain pump is operated intermittently, i.e. 5 min
ON, 5 sec OFF and 5 min ON. (*1) The intermittent operation is executed regardless of recovery of water
level abnormality during the intermittent operation. (*2) When the water level abnormality can not be
recovered, the latter 5 min ON operation is continued until recovery of the abnormality. (*3)
*2
Even though the water level
abnormality could be recovered
during intermittent operation, the
operation shall be carried out
without exception.
*3
If the abnormality could not be recovered
during intermittent operation, the latter 5
min ON operation is continued until
recovery of the abnormality.
Water level abnormality shall be cancelled simultaneausly when the unit is turned off with remote controller
after recovery of the water level abnormality. When the unit is turned on with remote controller thereafter,
compressor starts operation 2 minutes later from the remote controller ON. (Below diagram shows an
example of the case that the water level abnormality is recovered during the former 5 min intermittent
operation.)
Occurrence of drain water level abnormality
5
sec
A
10
sec
sec
Compressor starts operation after 2 minutes from
remote controller ON.
(When 3-min standby of compressor is complete.)
Alarm indication will be turned off with the remote controller
OFF operation after recovery of drain water level abnormality.
Recovery of drain water level abnormality
ON
2 min
Compressor
ON
OFF
Error processing
Abnormal
Normal
Remote controler
5min
Drain pan
Water level abnormality
Normal
Drain pump
ON
OFF
OFF
Note : (1 On the whole of cooling and dry operation)
Recovery operation for drain water level abnormality does not activate when the water level can be returned
normal withinA+10seconds.
