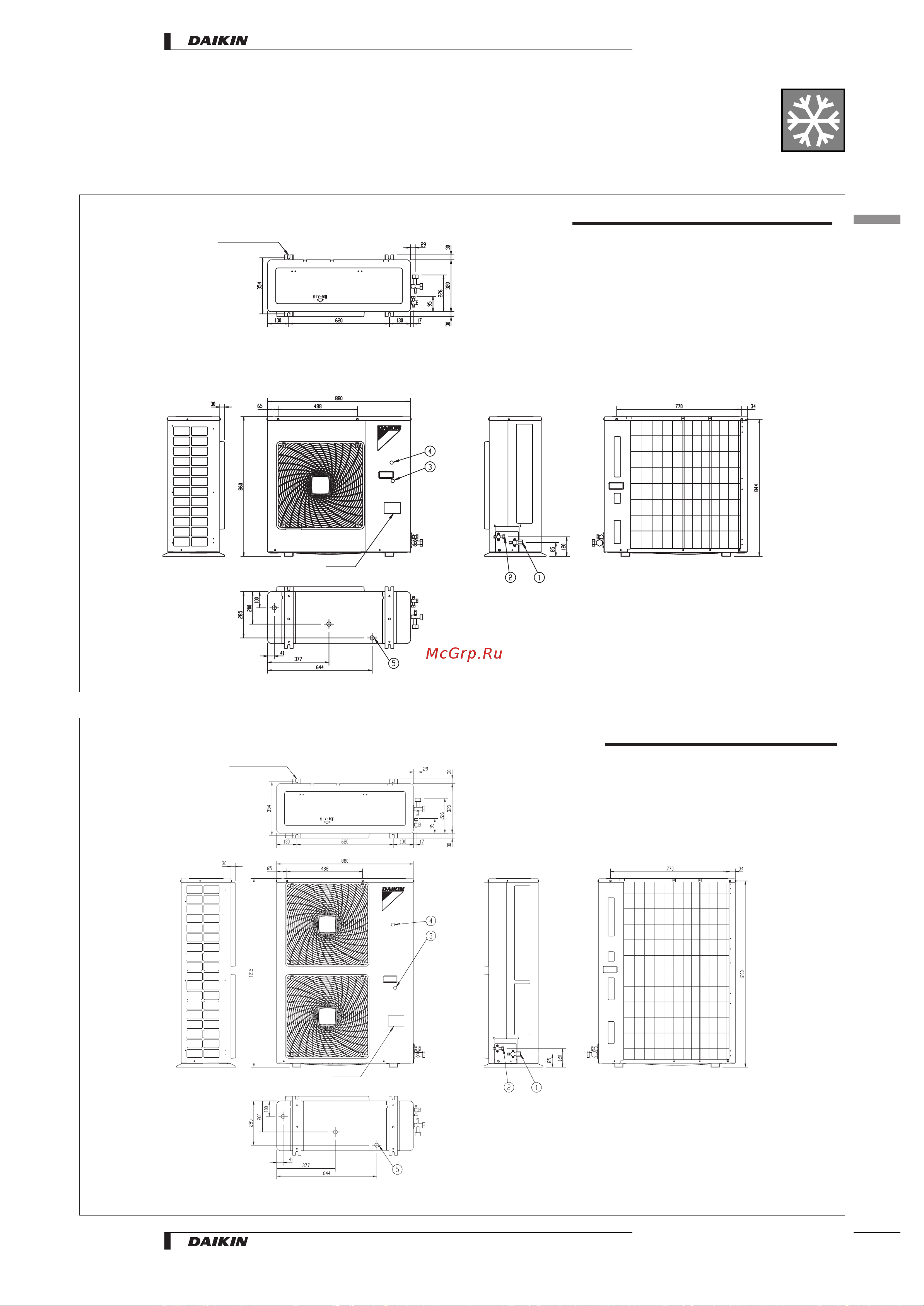

Daikin RP71B7V1 [27/48] Dimensional drawings
![Daikin RP125B7W1 [27/48] Dimensional drawings](/views2/1783025/page27/bg1b.png)
unit (mm)
1 Gas pipe connection J15.9 flare
2 Liquid pipe connection - J9.5 flare
3 Service port (in the unit)
4 Grounding terminal M5 (in switch box)
5 Drain outlet
RP71B7
Hole for anchor bolt
4-M12
DAIKIN name plate
3TW23184-1
unit (mm)
1 Gas pipe connection J19.1 flare
2 Liquid pipe connection - J9.5 flare
3 Service port (in the unit)
4 Grounding terminal M5 (in switch box)
5 Drain outlet
RP100-125B7
Hole for anchor bolt
4-M12
DAIKIN name plate
3TW23224-1
•
Pair Application • R-407C • R25-60GZ7RP71-250B7
4
Dimensional drawings
13
4
25
• Split - Sky Air • Outdoor Units
