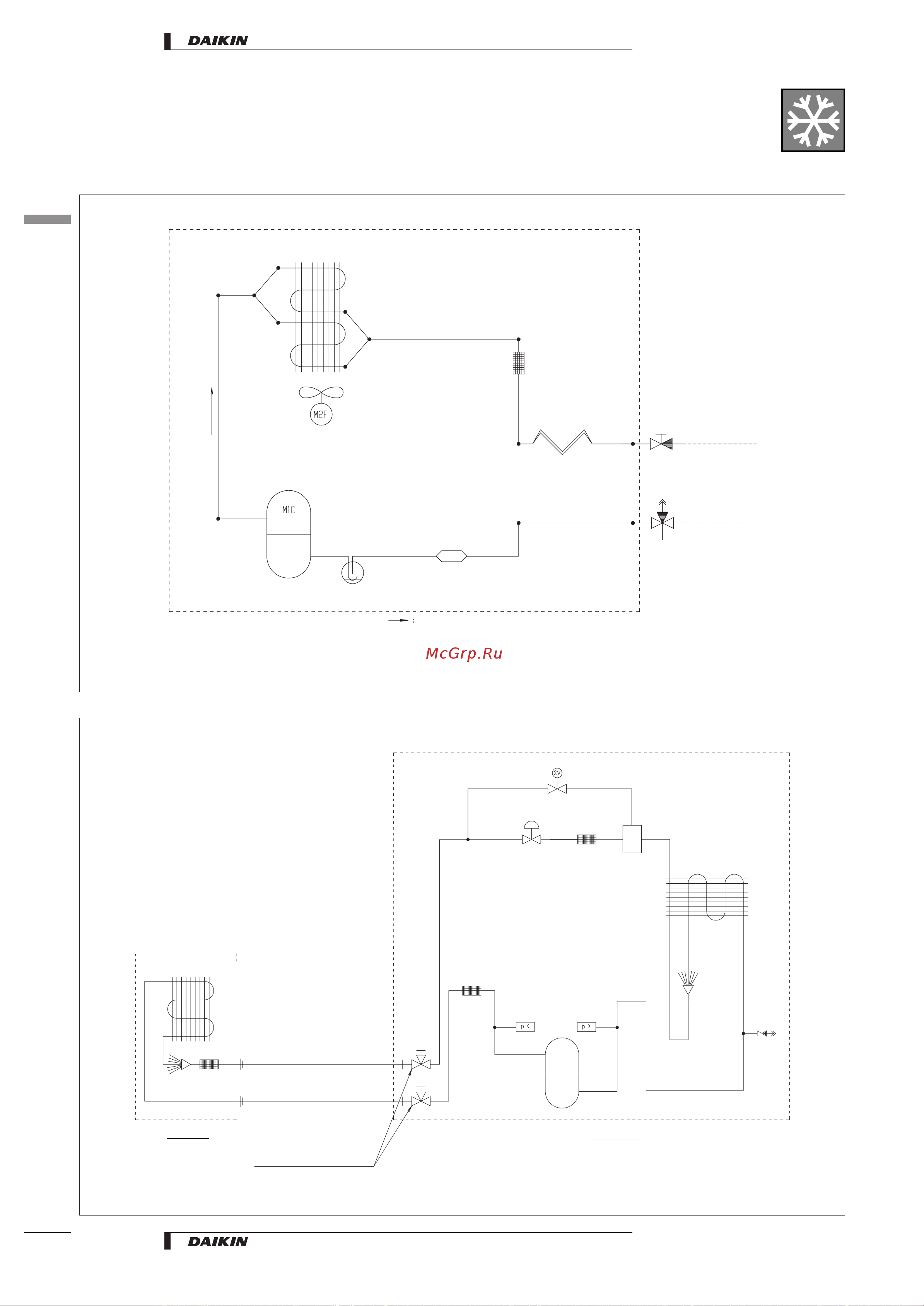

Daikin RP71B7V1 [32/48] Piping diagrams

Daikin RP125B7T1 [32/48] Piping diagrams
R60GZ7
3TW02105-1
Heat exchanger
Muffler
Filter
Capillary tube
O
Check valve
L
Flare connection
M
Screw connection
N
Flange connection
Z
Pinched pipe
P
Spinned pipe
Accumulator
M1C : Compressor motor
M2F : Fan motor
Refrigerant flow
Liquid stop valve
Field piping
(1/4 - 6.35mm Cut)
(/8 - 15.9mm Cut)
Gas line stop valve with service port
RP71B7
3TW23285-1
Field piping J9.5 C122OT-O
Field piping J15.9 C122OT-O
Outdoor unit
Heat exchanger
Filter
Filter
Electronic expansion
valve
Filter
Low pressure
switch
Heat exchanger
Compressor
Receiver
Service port
1/4’’
High pressure
switch
O Check valve L
Flare connection
M
Screw connection
N
Flange connection
Z
Pinched pipe
P
Spinned pipe
Stop valve
(with service port 1/4 flare)
Indoor unit
Solenoid valve
Pair Application R-407C R25-60GZ7RP71-250B7
