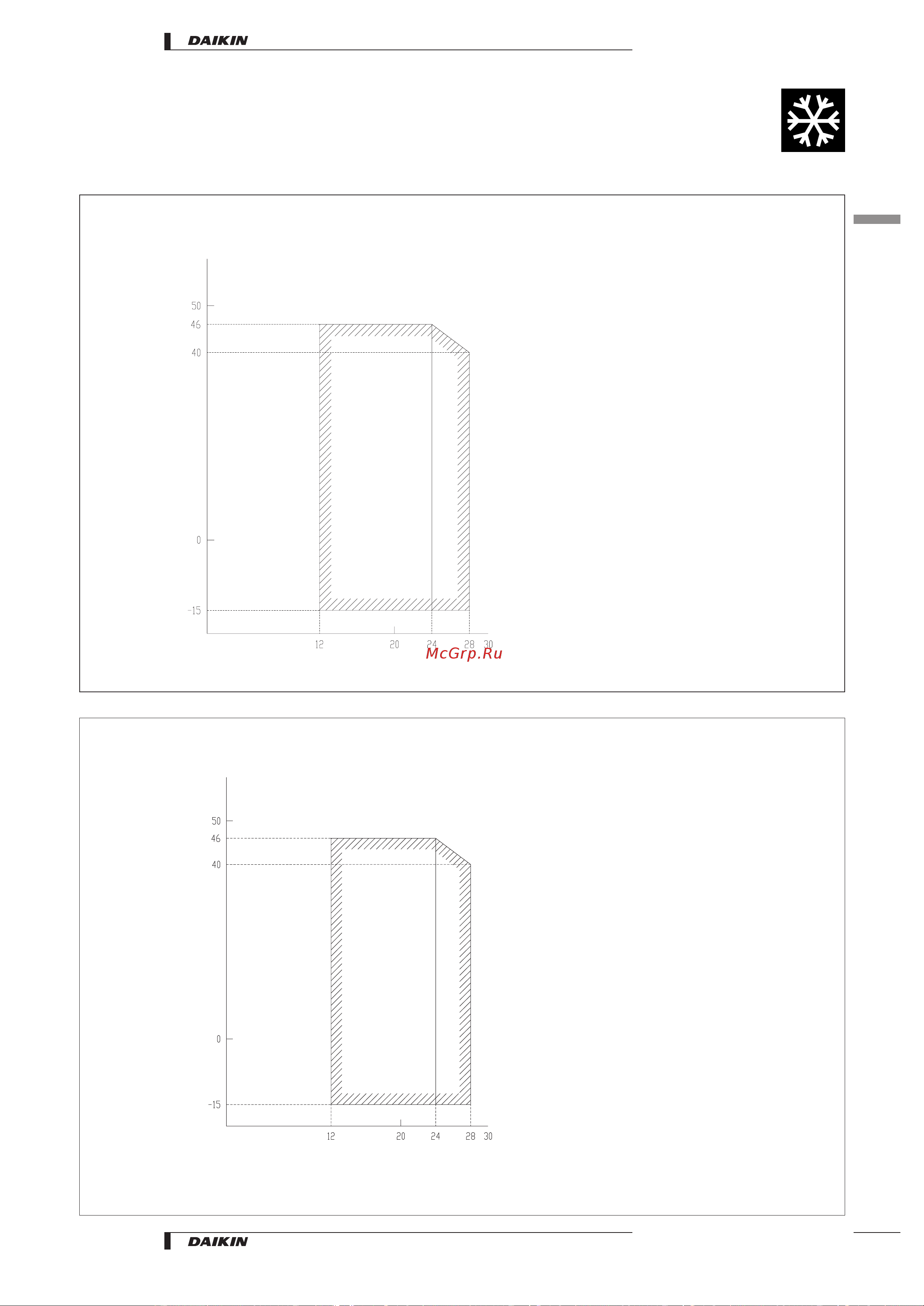

Operation range
R25∼45GZ7
4TW00883-1
Outdoor temp. (°CDB)
Continuous operation
Pull-down period
Indoor temp. (°CWB)
Notes:
The graph is based on the following conditions:
1. Equivalent piping length 7.5 m
2. Level difference 0 m
3. Air flow rate high
Outdoor temp. (°CDB)
Continuous operation
Indoor temp. (°CWB)
R60GZ7
4TW00623-1
Pull-down period
Notes:
The graph is based on the following conditions:
1. Equivalent piping length 7.5 m
2. Level difference 0 m
3. Air flow rate high
•
Pair Application • R-407C • R25-60GZ7RP71-250B7
