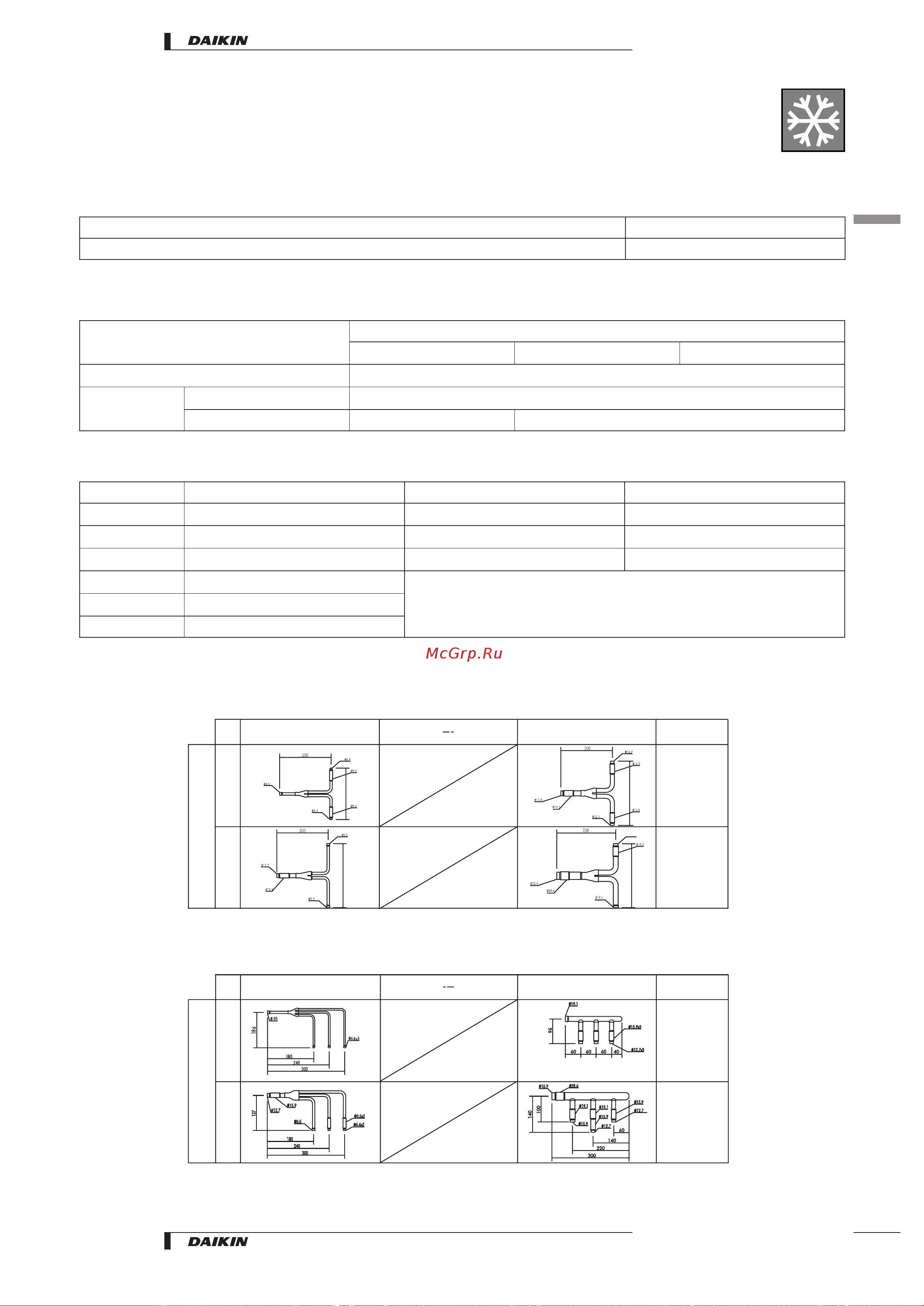

9
Accessories
9-2
Optional accessories
R25-35GZ7V11/R45GZ7V11/W11
Description Option
Drain piping kit - one drain outlet KIS95
Available options for RP71-125B7(V1,W1,T1)
Name of option
Kit name
RP71B7 RP100B7 RP125B7
Central drain plug KKPJ5F180
Refrigerant branch
piping
Twin KHRP79BA7
Triple − KHRP96H7
3TW23189-1
Available options for RP200-250B7W1
Option Option name RP200B7 RP250B7
Fan motor size up NFM22C5 X
Fan motor size up NFM22C10 X
Kit for discharge duct EKND26A10 X X
Refnet KHRP79BA7
Refer to the table with possible indoor combinations*Refnet KHRP102BA7
Refnet KHRP127HA7
3TW23619-2
*Table with possible indoor combinations = combination matrix 3TW23619-1, see chapter RP-B7 (twin / triple / double twin application).
Refnet kits overview
Liquid side joint Suction gas side joint Others
Insulator
Installation manual
Insulator
Installation manual
Outlet
Inlet
Outlet
Inlet
Outlet
Outlet
Outlet
Outlet
Inlet
Outlet
Outlet
Inlet
Sky Air
KHRP79BA7
KHRP102BA7
Sky Air
KHRP96H7
KHRP127HA7
Liquid side joint
Suction gas side header Others
Insulator
Installation manual
Insulator
Installation manual
Inlet
Outlet
Outlet
Outlet
Outlet
Inlet
Outlet
Inlet
Inlet
Outlet
Outlet
•
Pair Application • R-407C • R25-60GZ7RP71-250B7
