6

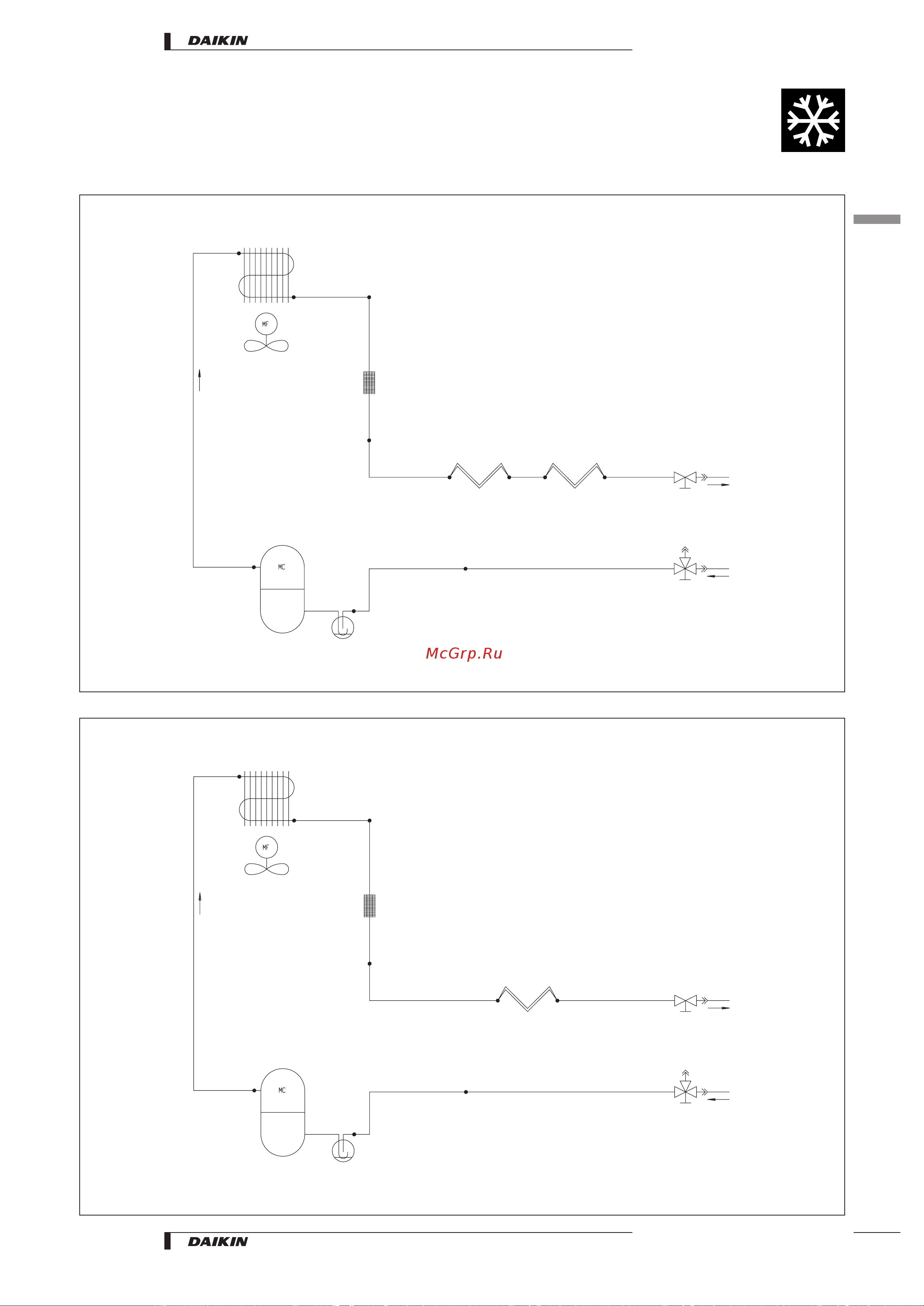

Piping diagrams
R25-35GZ7
3TW00875-1B
Heat exchanger
Compressor
Filter
Capillary tube (1)
Liquid stop valve
Gas stop valve with
service port
(3/8 CuT for R25)
(1/2 CuT for R35)
Accumulator
Propeller fan
(1/4 CuT)
Capillary tube (2)
O Check valve L Flare connection M Screw connection N Flange connection Z Pinched pipe P Spinned pipe
R45GZ7
3TW00915-1A
Heat exchanger
Filter
Compressor
Capillary tube Liquid stop valve
Gas stop valve with service
port
(5/8 CuT)
Accumulator
Propeller fan
(1/4 CuT)
O Check valve L Flare connection M Screw connection N Flange connection Z Pinched pipe P Spinned pipe
•
Pair Application • R-407C • R25-60GZ7RP71-250B7
13
6
29
• Split - Sky Air • Outdoor Units
