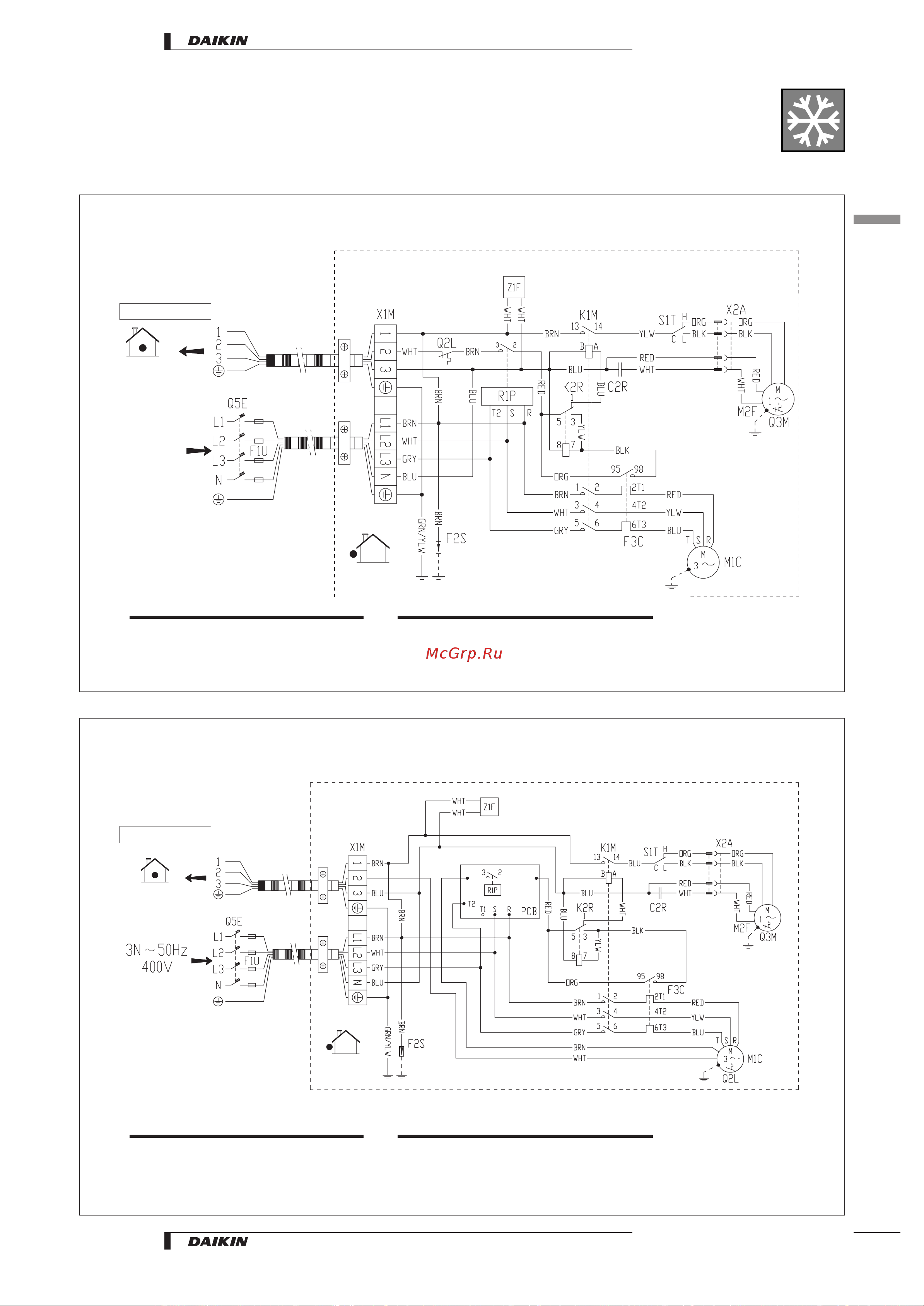

R45GZ7W11
3TW01936-1A
Outdoor
Indoor
C2R : Running capacitor
F1U : Field fuse
F2S : Surge arrester
F3C : Overcurrent relay
K1M : Compressor contactor
K2R : Magnetic relay
M1C : Compressor motor
M2F : Fan motor
L1,L2,L3 Live
N Neutral
R
Protective earth
g
Field wiring
R1P : Reverse phase protector
S1T : Thermostat
X1M : Terminal strip
Q2L : Overload protector (compressor internal)
Q3M : Thermal protector
Q5E : Field earth leak detector
X2A : Connector
Z1F : Noise filter
2N ∼ 50Hz
400V
R60GZ7W1
3TW02106-1A
Outdoor
Indoor
C2R : Running capacitor
F1U : Field fuse
F2S : Surge arrester
F3C : Overcurrent relay
K1M : Compressor contactor
K2R : Magnetic relay
M1C : Compressor motor
M2F : Fan motor
L1,L2,L3 Live
N Neutral
R
Protective earth
g
Field wiring
R1P : Reverse phase protector
S1T : Thermostat
X1M : Terminal strip
Q2L : Overload protector (compressor internal)
Q3M : Thermal protector
Q5E : Field earth leak detector
X2A : Connector
Z1F : Noise filter
•
Pair Application • R-407C • R25-60GZ7RP71-250B7
7
Wiring diagrams
13
7
33
• Split - Sky Air • Outdoor Units
