Daikin ETVH16SU23EA6V [122/296] Electrical installation

9 | Electrical installation

Installer reference guide

122

EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V

Daikin Altherma 3 H HT F

4P644738-1 – 2021.02

X5M

3 4 5 6

3 Fix the cable with cable ties to the cable tie mountings.

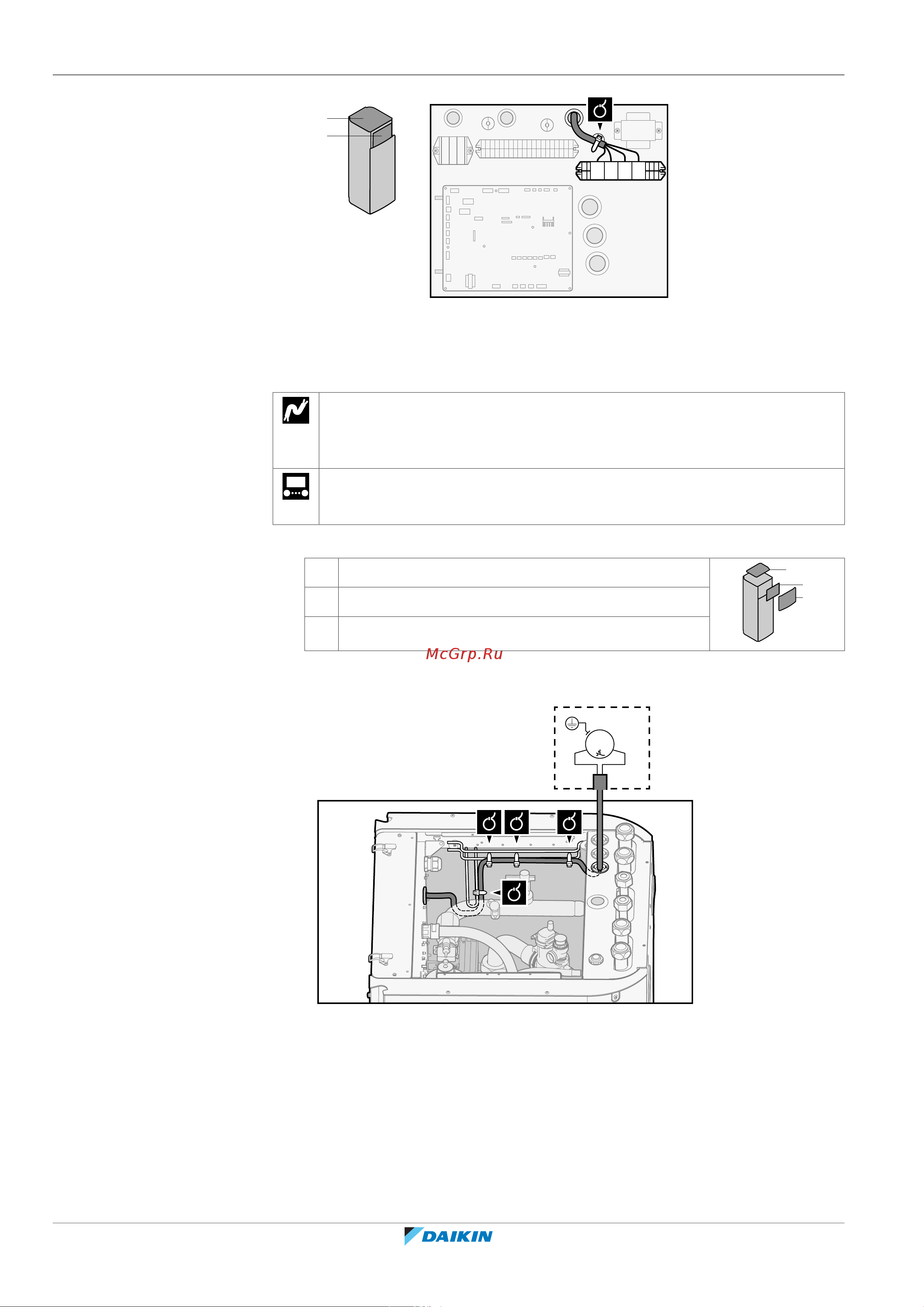

9.3.5 To connect the domestic hot water pump

Wires: (2+GND)×0.75mm²

DHW pump output. Maximum load: 2A (inrush), 230VAC, 1A

(continuous)

[9.2.2] DHW pump

[9.2.3] DHW pump schedule

1 Open the following (see "7.2.5To open the indoor unit"[470]):

1 Top panel

2 User interface panel

3 Upper switch box cover

2 Connect the domestic hot water pump cable to the appropriate terminals as

shown in the illustration below.

M2P
