7 | Unit installation
Installer reference guide
75
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02
±150
kg
4×

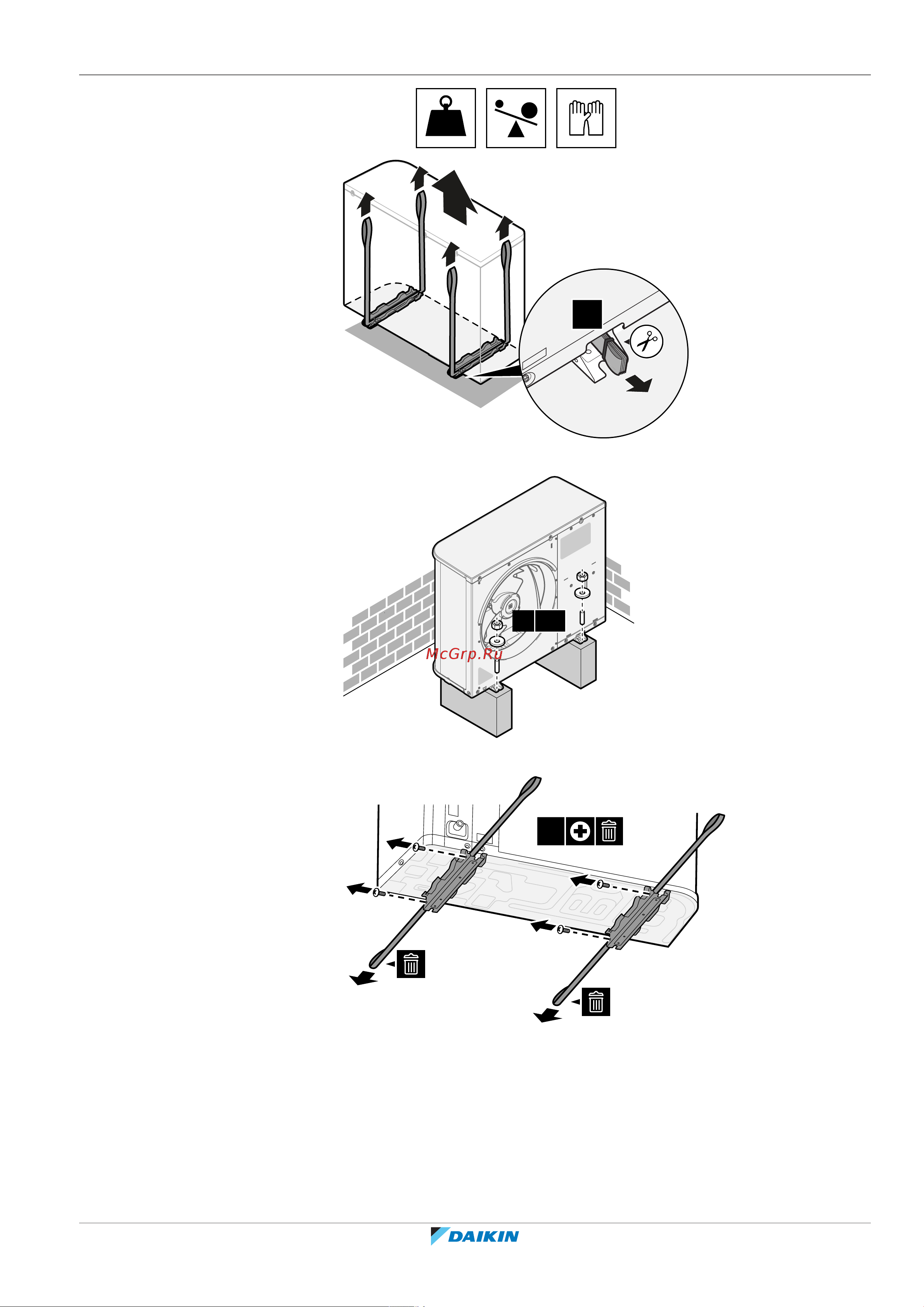

2 Fix the unit to the installation structure.
4× M12
3 Remove the slings (and screws), and dispose of them.
4×
7.3.5 To provide drainage
▪ Make sure that condensation water can be evacuated properly.
▪ Install the unit on a base to make sure that there is proper drainage in order to
avoid ice accumulation.
▪ Prepare a water drainage channel around the foundation to drain waste water
away from the unit.
