10 | Configuration
Installer reference guide
144
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02

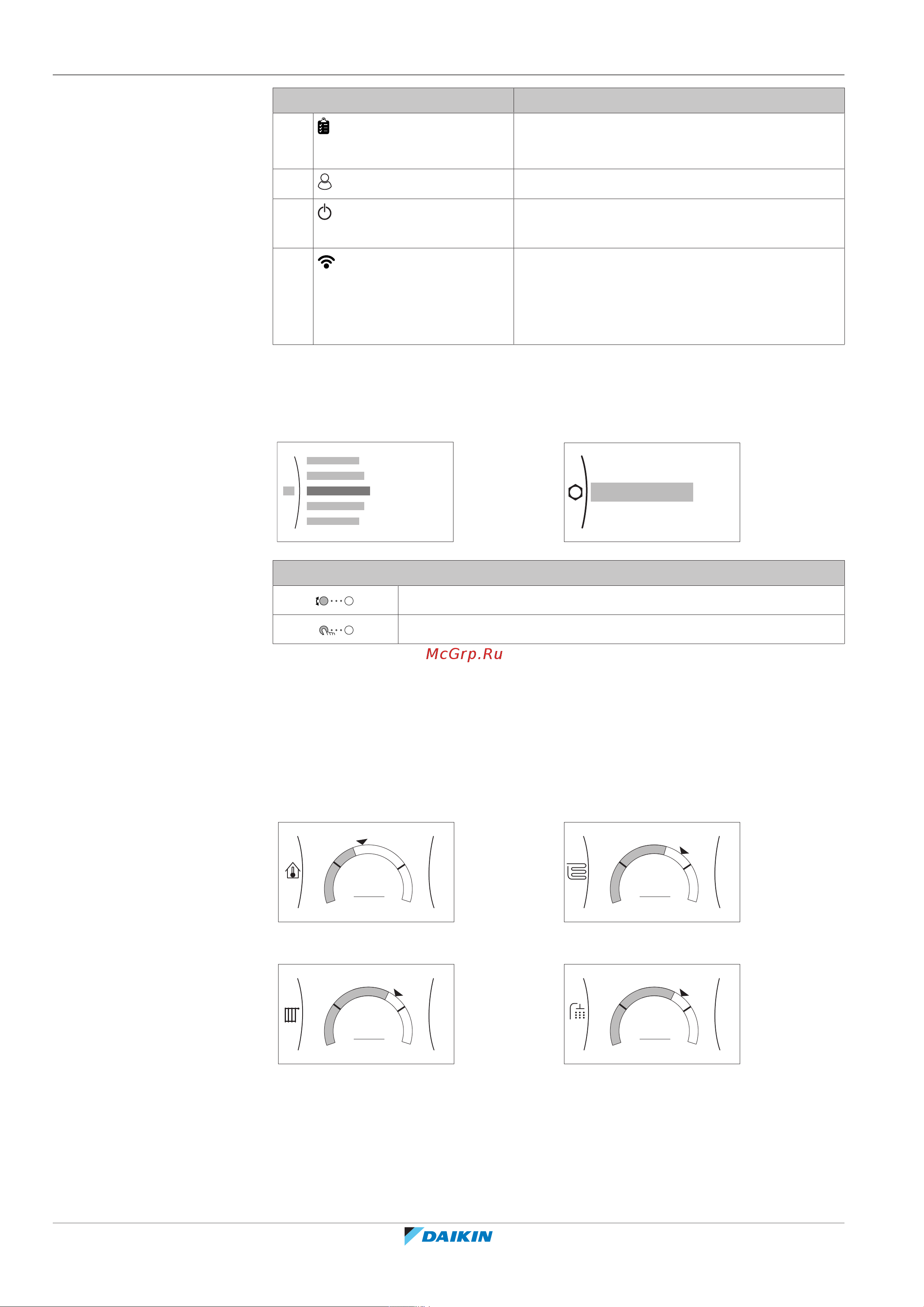

Submenu Description
[A]
Commissioning
Restriction: Only for the installer.
Perform tests and maintenance.
[B]
User profile
Change the active user profile.
[C]
Operation
Turn heating/cooling functionality and
domestic hot water preparation on or off.
[D] Wireless gateway Restriction: Only displayed if a wireless LAN
(WLAN) is installed.
Contains settings needed when configuring
the Daikin Residential Controller app.
10.3.4 Menu screen
Example:
7.1
Language
Time/date
Holiday
Possible actions on this screen
Go through the list.
Enter the submenu/setting.
10.3.5 Setpoint screen
The setpoint screen is displayed for screens describing system components that
need a setpoint value.
Examples
[1] Room temperature screen
+
–
21°C
1
Room
[2] Main zone screen
+
–
35°C
2
Main zone
[3] Additional zone screen
+
–
45°C
3
Additional zone
[5] Tank temperature screen
+
–
50°C
5
Tank
