6.2.1 Single room

Underfloor heating or radiators – Wired room thermostat

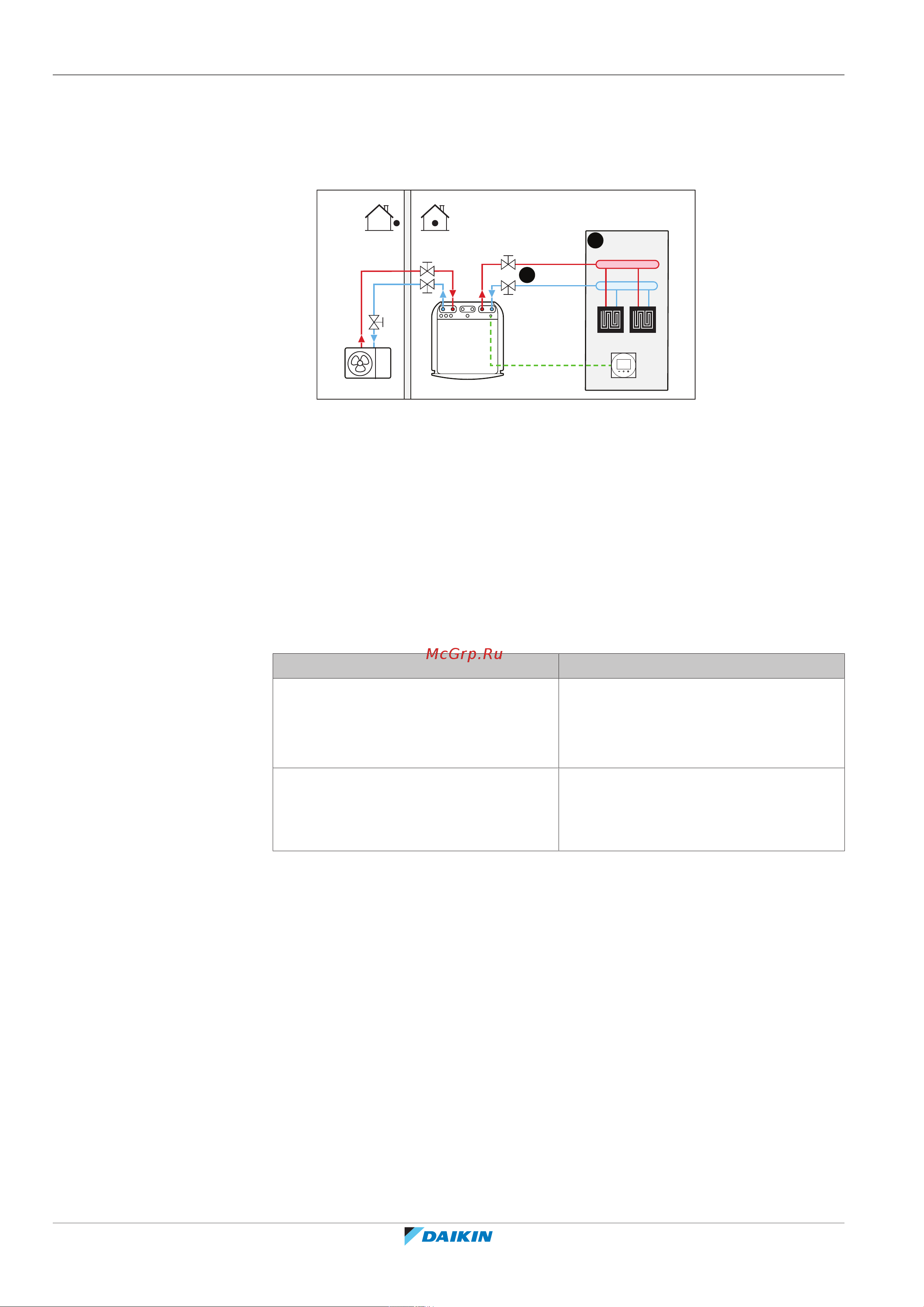

Setup

A Main leaving water temperature zone

B One single room

a Dedicated Human Comfort Interface (BRC1HHDA used as room thermostat)

▪ For more information about connecting the electrical wiring to the unit, see:

- "9.2Connections to the outdoor unit"[4105]

- "9.3Connections to the indoor unit"[4112]

▪ The underfloor heating or radiators are directly connected to the indoor unit.

▪ The room temperature is controlled by the dedicated Human Comfort Interface

(BRC1HHDA used as room thermostat).

Configuration

Setting Value

Unit temperature control:

▪ #: [2.9]

▪ Code: [C-07]

2 (Room thermostat): Unit operation

is decided based on the ambient

temperature of the dedicated Human

Comfort Interface.

Number of water temperature zones:

▪ #: [4.4]

▪ Code: [7-02]

0 (Single zone): Main

Benefits

▪ Highest comfort and efficiency. The smart room thermostat functionality can

decrease or increase the desired leaving water temperature based on the actual

room temperature (modulation). This results in:

- Stable room temperature matching the desired temperature (higher comfort)

- Less ON/OFF cycles (more quiet, higher comfort and higher efficiency)

- Lowest possible leaving water temperature (higher efficiency)

▪ Easy. You can easily set the desired room temperature via the user interface:

- For your daily needs, you can use preset values and schedules.

- To deviate from your daily needs, you can temporarily overrule the preset

values and schedules, or use the holiday mode.
