4 | About the box
Installer reference guide
25
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02

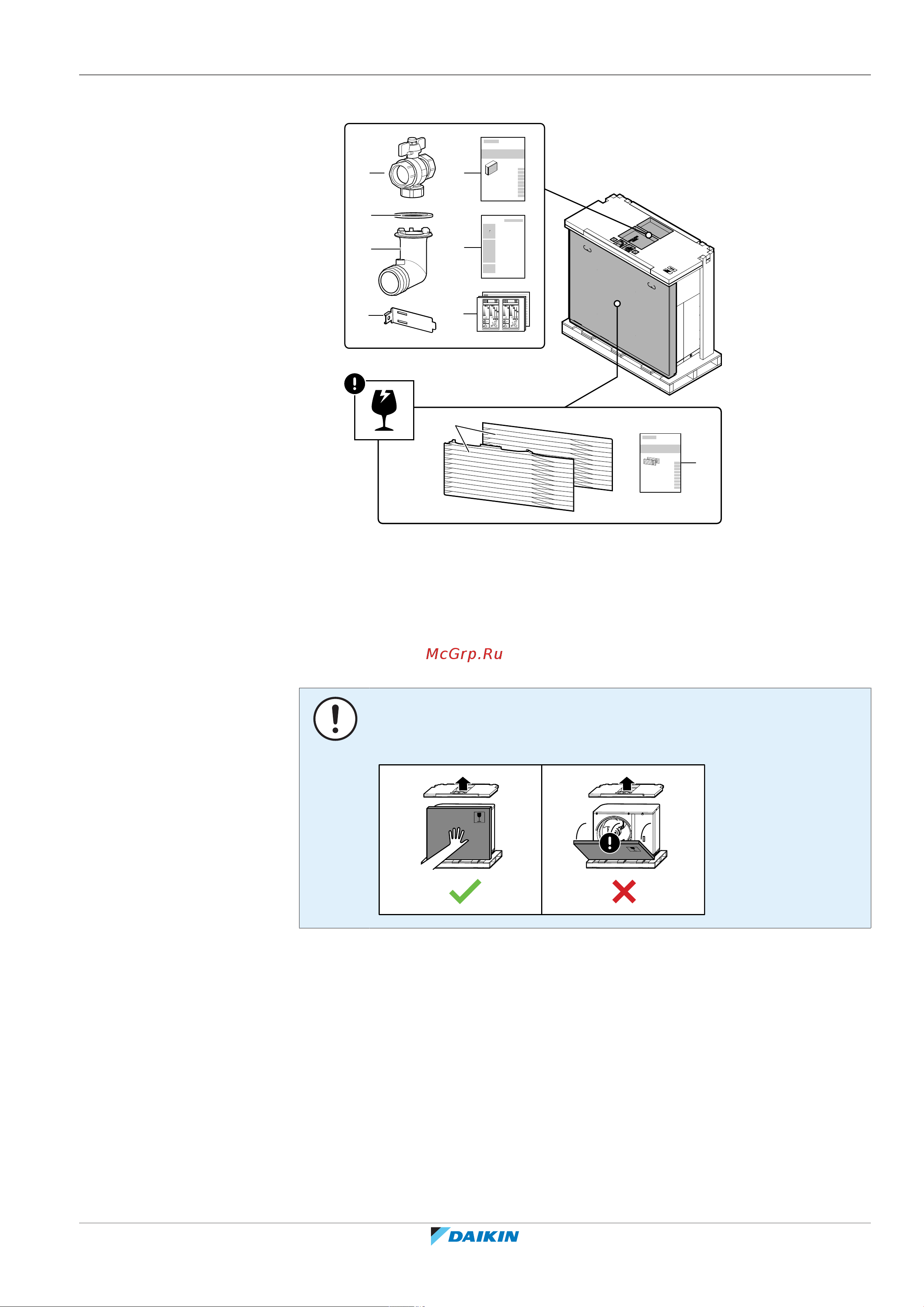

4.2.3 To remove the accessories from the outdoor unit
b
c
d
e
f
a
g
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
h
i
a Shut-off valve (with integrated filter)
b O-ring for drain socket
c Drain socket
d Thermistor fixture (for installations in areas with low ambient temperatures)
e Installation manual – Outdoor unit
f Disposal manual – Recovering refrigerant
g Energy label
h Discharge grille (upper + lower part)
i Installation manual – Discharge grille
NOTICE
Unpacking. When you remove the top packaging/accessories, hold the box
containing the discharge grille to prevent it from falling.
4.3 Indoor unit
▪ At delivery, the unit MUST be checked for damage. Any damage MUST be
reported immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation position to
prevent damage during transport.
▪ Unpack the indoor unit completely according to the instructions mentioned on
the unpacking instructions sheet.
