5 | About the units and options
Installer reference guide
30
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02

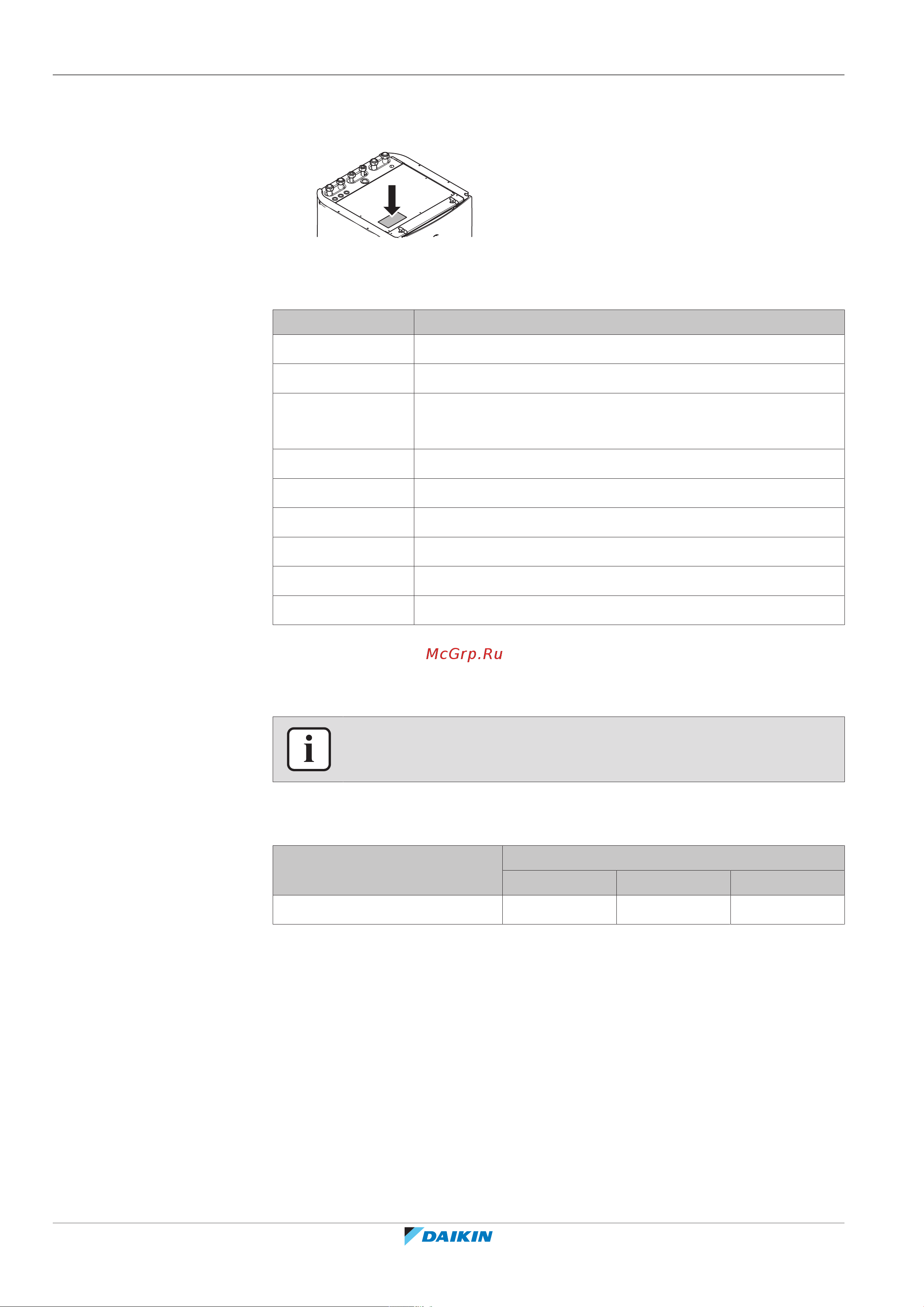

5.2.2 Identification label: Indoor unit
Location
Model identification
Example: ETVH16SU23EA6V
Code Description
E European model
TV Floor-standing hydro-split unit with integrated tank
H H=Heating only
X=Heating/cooling
16 Capacity class
S Integrated tank material: Stainless steel
U UK model
23 Integrated tank volume
EA Model series
6V Backup heater model
5.3 Combining units and options
INFORMATION
Certain options might NOT be available in your country.
5.3.1 Possible combinations of indoor unit and outdoor unit
Indoor unit Outdoor unit
EPRA14 EPRA16 EPRA18
ETVH/X16 O O O
5.3.2 Possible options for the outdoor unit
Mounting stand (EKMST1, EKMST2)
In colder regions where heavy snowfall can occur, it is recommended to install the
outdoor unit on a mounting frame. Use one of the following models:
▪ EKMST1 with flange feet: to install the outdoor unit on a concrete foundation
where drilling is allowed.
▪ EKMST2 with rubber feet: to install the outdoor unit on foundations where
drilling is not allowed or possible, such as flat roofs or pavements.
For installation instructions, see the installation manual of the mounting stand.
