7 | Unit installation
Installer reference guide
71
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02
2
1
1
3
4
X14Y
X1A

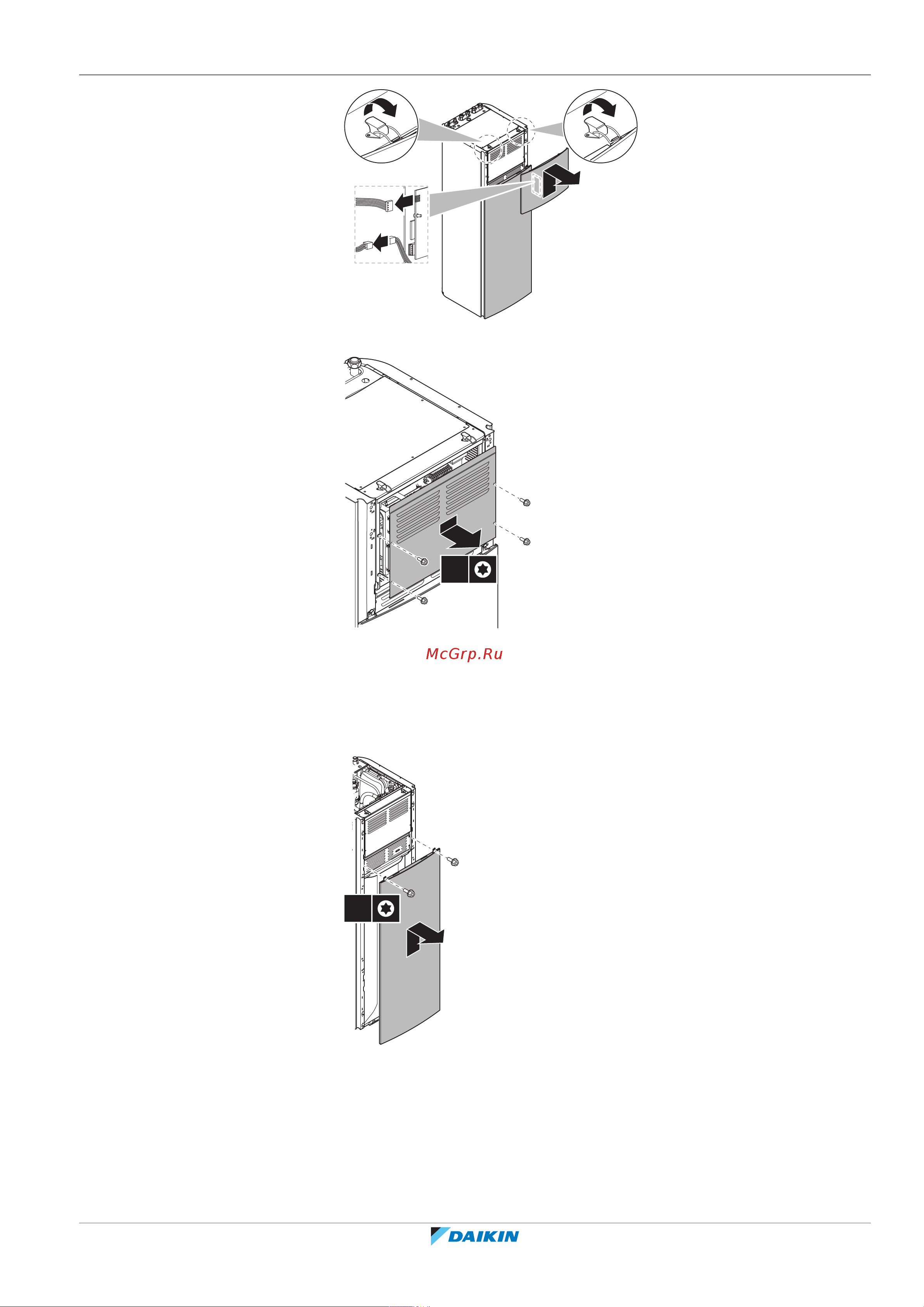

3 Remove the switch box cover.
4×
T25
4 If necessary, remove the front plate. This is, for example, necessary in the
following cases:
▪ "7.2.6To lower the switch box on the indoor unit"[472]
▪ "7.4.4To connect the drain hose to the drain"[481]
▪ When you need access to the high voltage switch box
2×
T25
5 If you need access to the high voltage components, remove the high voltage
switch box cover.
