5 | About the units and options
Installer reference guide
29
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02
5 About the units and options
In this chapter
5.1 Overview: About the units and options ................................................................................................................................. 29
5.2 Identification........................................................................................................................................................................... 29
5.2.1 Identification label: Outdoor unit .......................................................................................................................... 29
5.2.2 Identification label: Indoor unit ............................................................................................................................. 30
5.3 Combining units and options.................................................................................................................................................. 30
5.3.1 Possible combinations of indoor unit and outdoor unit ....................................................................................... 30
5.3.2 Possible options for the outdoor unit.................................................................................................................... 30
5.3.3 Possible options for the indoor unit ...................................................................................................................... 31
5.1 Overview: About the units and options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
5.2 Identification

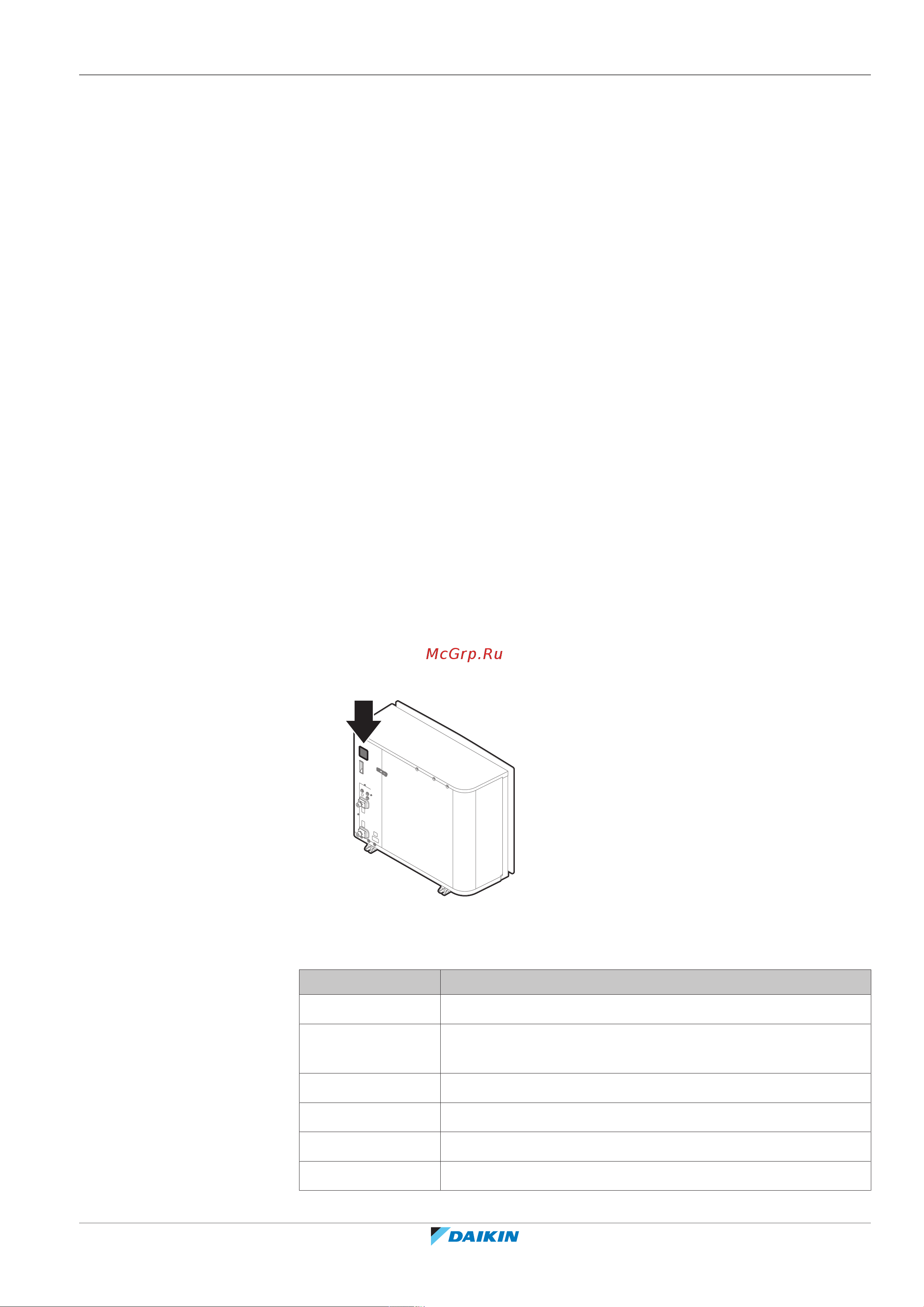

5.2.1 Identification label: Outdoor unit
Location
Model identification
Example: EPRA14DAV3
Code Explanation
EP European hydro-split outdoor pair heat pump
R High water temperature – ambient zone 2 (see operation
range)
A Refrigerant R32
14 Capacity class
DA Model series
V3 Power supply
