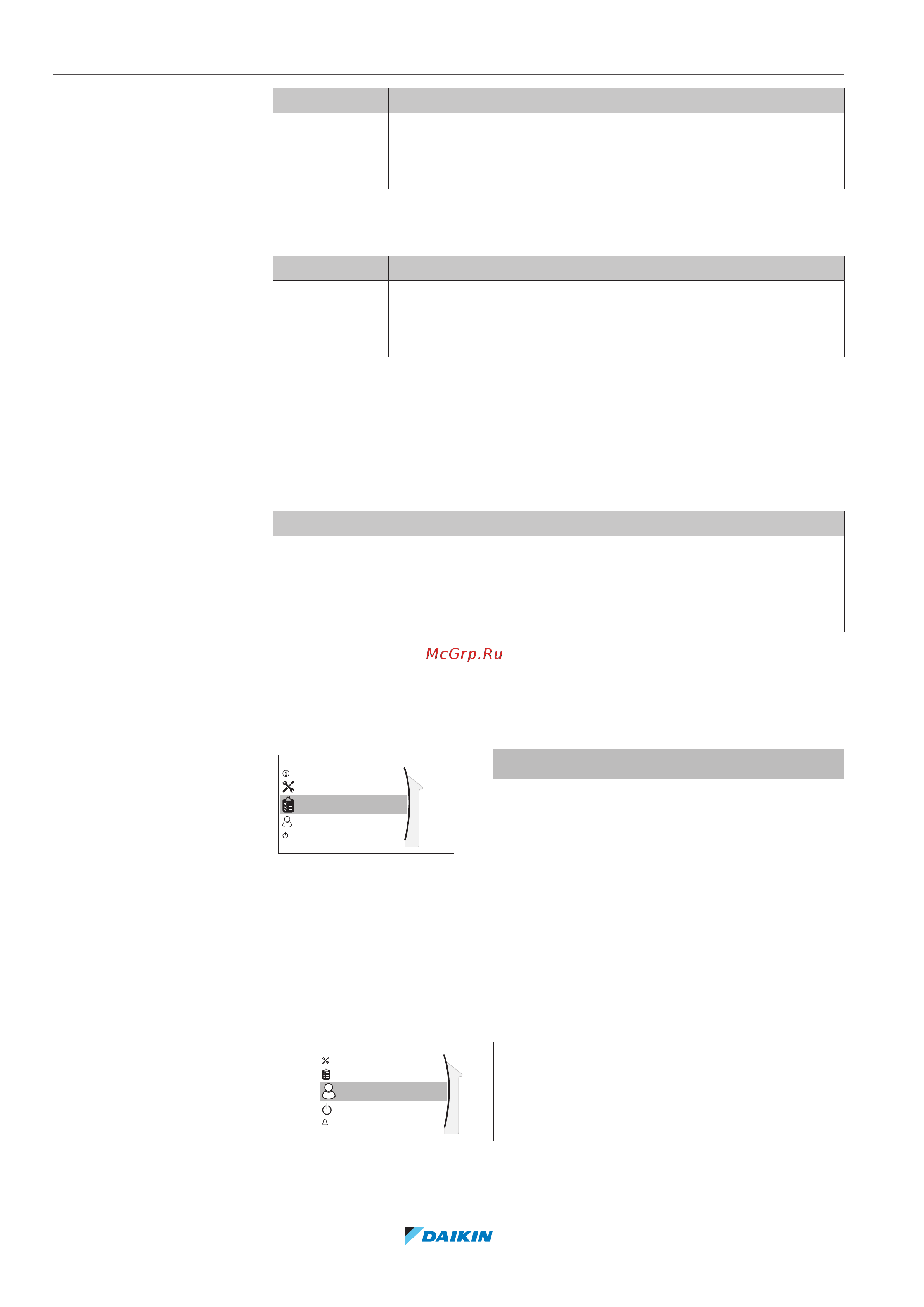

10 | Configuration
Installer reference guide
218
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02
# Code Description
[9.P.3] [7-0A] Add zone pump fixed PWM: Fixed pump
speed for additional (direct) zone.
▪ 20~95% (default: 95)
Main zone pump fixed PWM
The speed of the main zone pump can be fixed with this setting.
# Code Description
[9.P.4] [7-0B] Main zone pump fixed PWM: Fixed pump
speed for main (mixed) zone.
▪ 20~95% (default: 95)
Mixing valve turning time
If a third party mixing valve is installed in combination with controller EKMIKPOA,
the valve turning time must be set accordingly.
For this setting, space heating/cooling and tank operation MUST be off:
[C.2] Space heating/cooling=0 (Off) and [C.3] Tank=0 (Off). See
"10.5.12Operation"[4219].
# Code Description
[9.P.5] [7-0C] Mixing valve turning time: Time in
seconds for the mixing valve to turn from one
side to the other.
▪ 20~300sec (default: 125)
10.5.10 Commissioning
Overview
The following items are listed in the submenu:
A
Commissioning
User profile
Installer settings
Information
Operation
[A] Commissioning
[A.1] Operation test run
[A.2] Actuator test run
[A.3] Air purge
[A.4] UFH screed dryout
About commissioning
See: "11Commissioning"[4225]
10.5.11 User profile
[B] User profile: See "To change the user permission level"[4135].
B
User profile
Operation
Commissioning
Installer settings
Malfunctioning
