4 | About the box
Installer reference guide
23
EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V
Daikin Altherma 3 H HT F
4P644738-1 – 2021.02

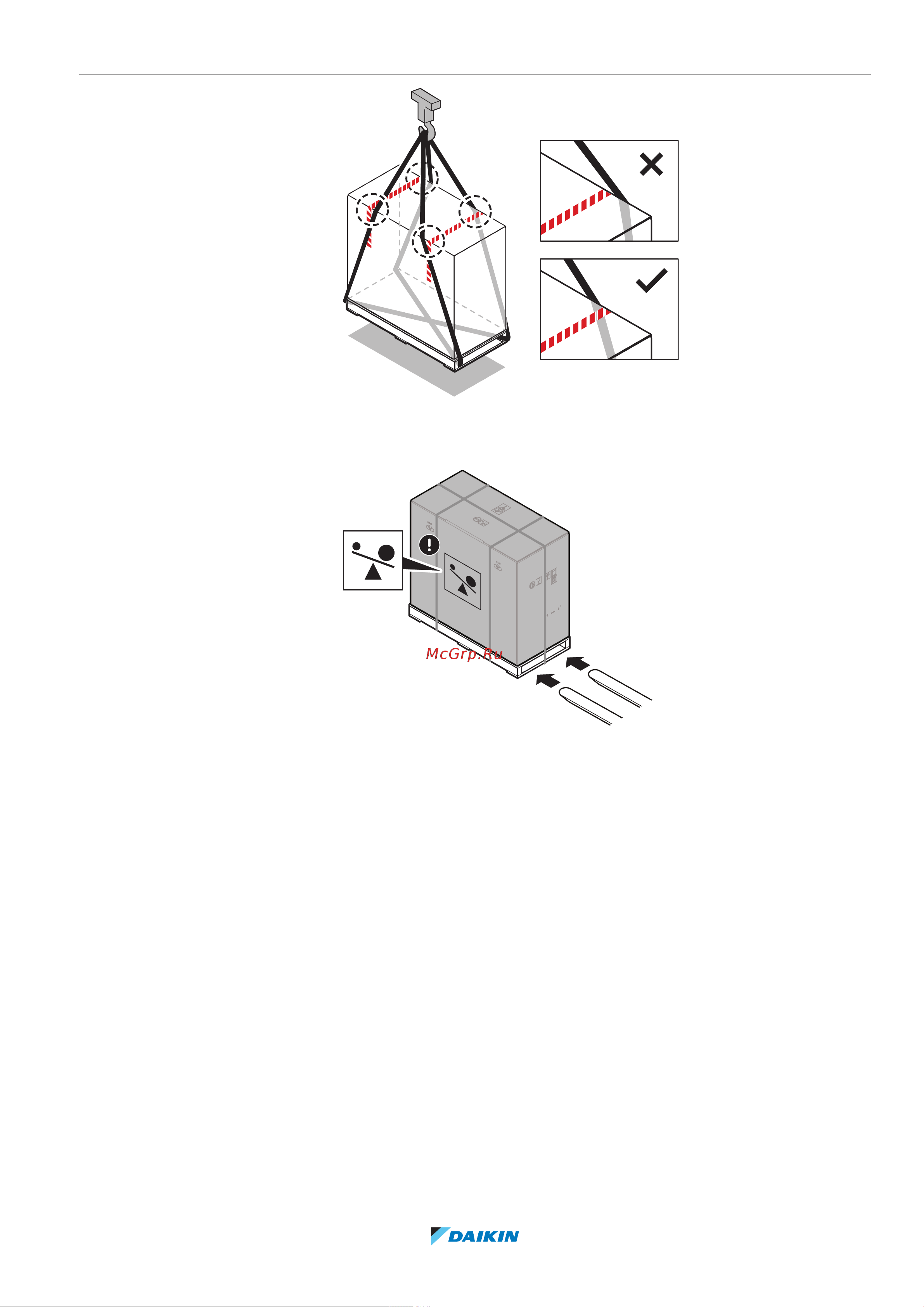

Forklift or pallet truck
Enter the pallet from the heavy side.
Manually
After unpacking, carry the unit using the slings attached to the unit.
See also:
▪ "4.2.2To unpack the outdoor unit"[424]
▪ "7.3.4To install the outdoor unit"[474]
