Daikin ETVH16SU23EA6V [162/296] Configuration

10 | Configuration

Installer reference guide

162

EPRA14~18DAV3+W1 + ETVH16SU18+23EA6V

Daikin Altherma 3 H HT F

4P644738-1 – 2021.02

# Code Description

[2.5] [1-00]

[1-01]

[1-02]

[1-03]

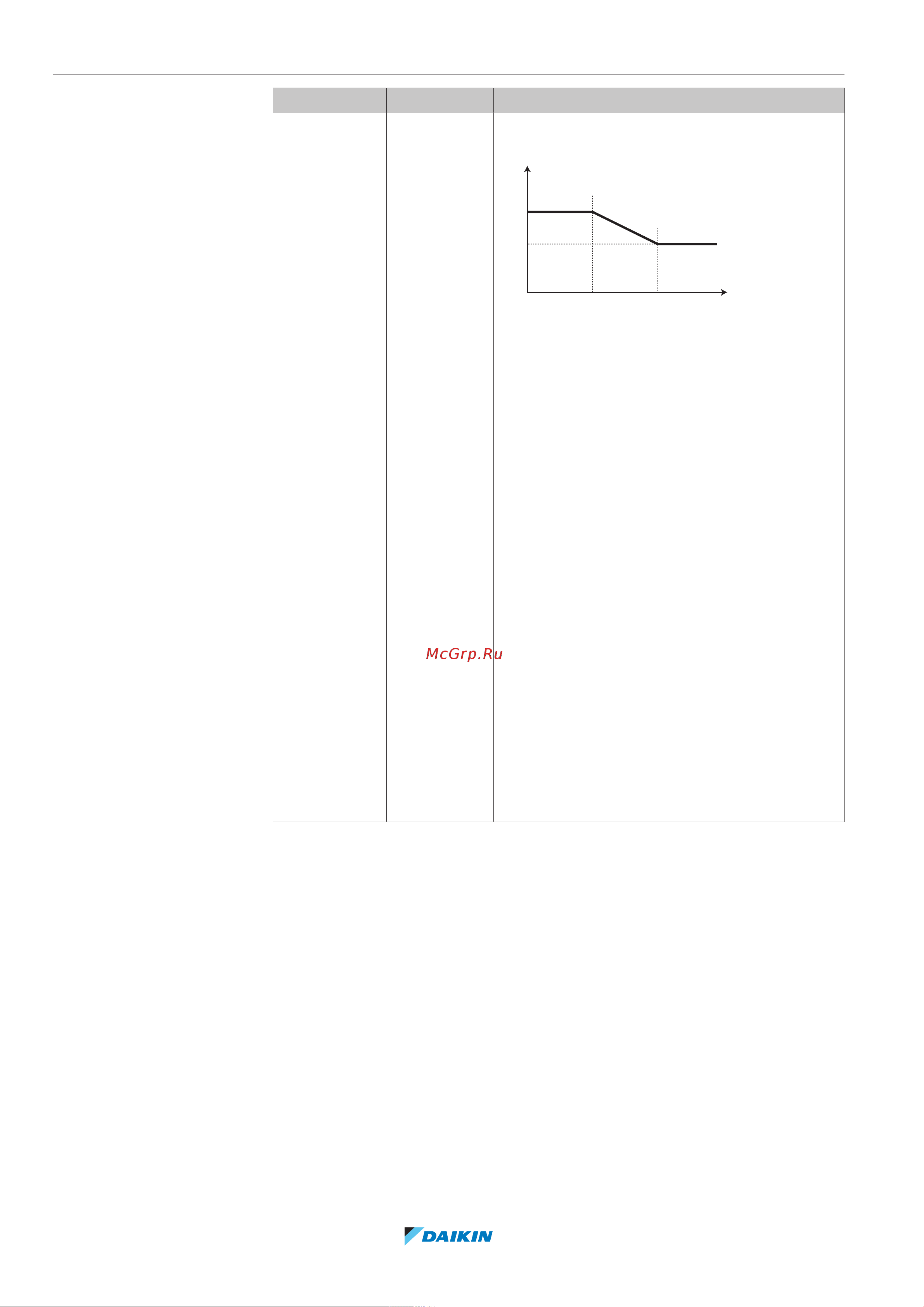

Set weather-dependent heating in [2.5] Heating

WD curve:

[1-03]

[1-02]

[1-00] [1-01]

Target leaving water temperature (main zone)

Outdoor temperature

Set weather-dependent heating in [9.l]

Overview field settings:

▪ [1-00]: Low outdoor ambient temperature. –

40°C~+5°C

▪ [1-01]: High outdoor ambient temperature.

10°C~25°C

▪ [1-02]: Desired leaving water temperature

when the outdoor temperature equals or drops

below the low ambient temperature.

[9‑01]°C~[9‑00]°C

Note: This value should be higher than [1‑03]

as for low outdoor temperatures warmer water

is required.

▪ [1-03]: Desired leaving water temperature

when the outdoor temperature equals or rises

above the high ambient temperature.

[9‑01]°C~min(45, [9‑00])°C

Note: This value should be lower than [1‑02] as

for high outdoor temperatures less warm water

is required.

Cooling WD curve

Set weather-dependent cooling for the main zone (if [2.4]=2):
