RCMMS User Manual
46
If you click Play without opening the list, the macro runs with the default
choice. The default choice (NoWait or TimeCtrl), is shown in the Playback
column.

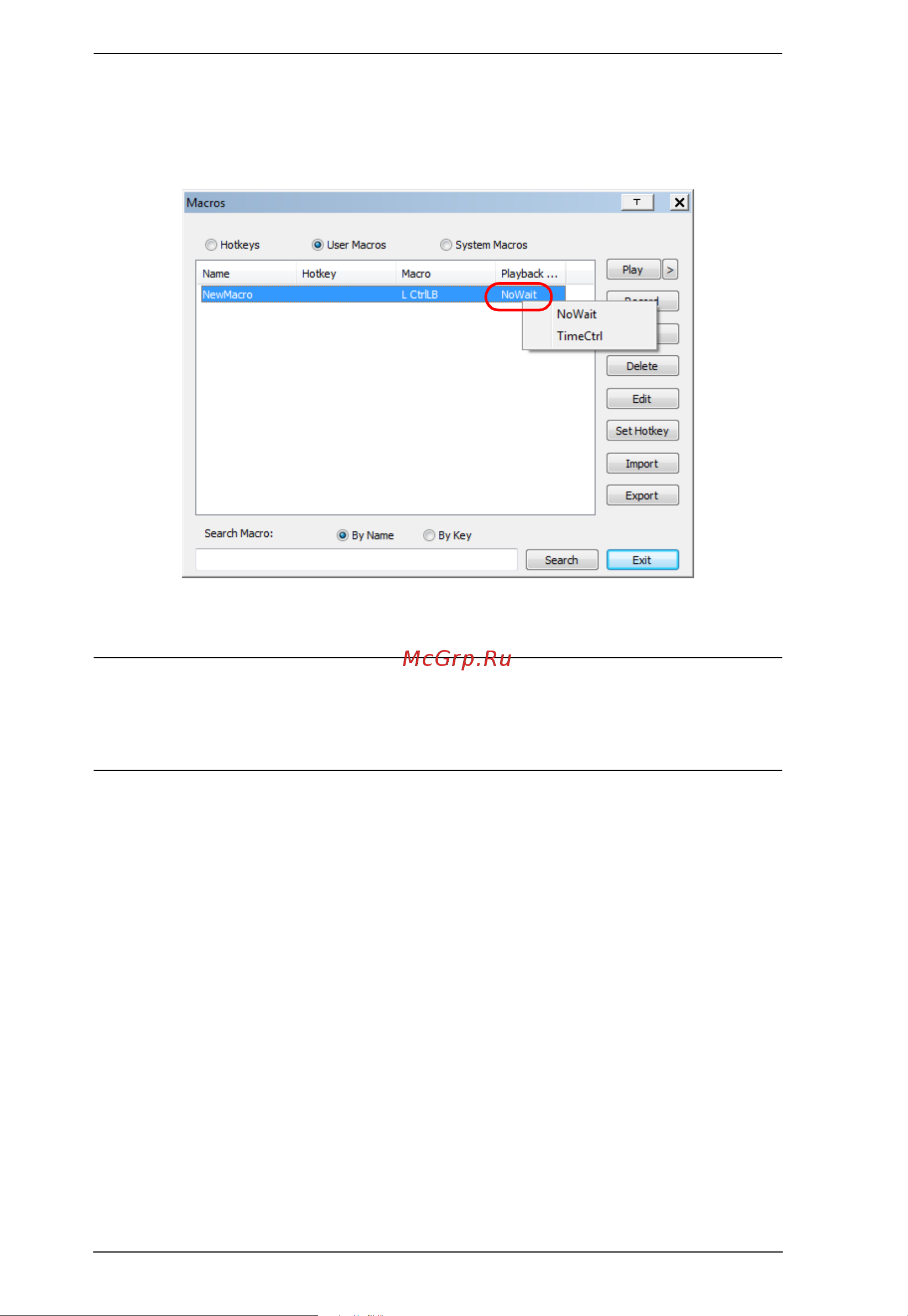

You can change the default choice by clicking on the current choice
(NoWait in the screenshot above), and selecting the alternative choice.
Note: User Macros are stored on the Local Client computer of each user.
Therefore there is no limitation on the of number of macros, the size of
the macro names, or makeup of the hotkey combinations that invoke
them
Search lets you filter the list of macros that appear in the large upper panel for
you to play or edit. Click a radio button to choose whether you want to search
by name or by key, enter a string for the search and click Search. All instances
that match your search string appear in the upper panel.
