Aten RCMMS [55/73] System macros

Chapter 8. The WinClient Viewer

System Macros

System Macros are used to create exit macros for when you close a session. For

example, as an added measure of security, you could create a macro that sends

the Winkey-L combination which would cause the remote device’s log in page

to come up the next time the device was accessed. To create the macro, do the

following:

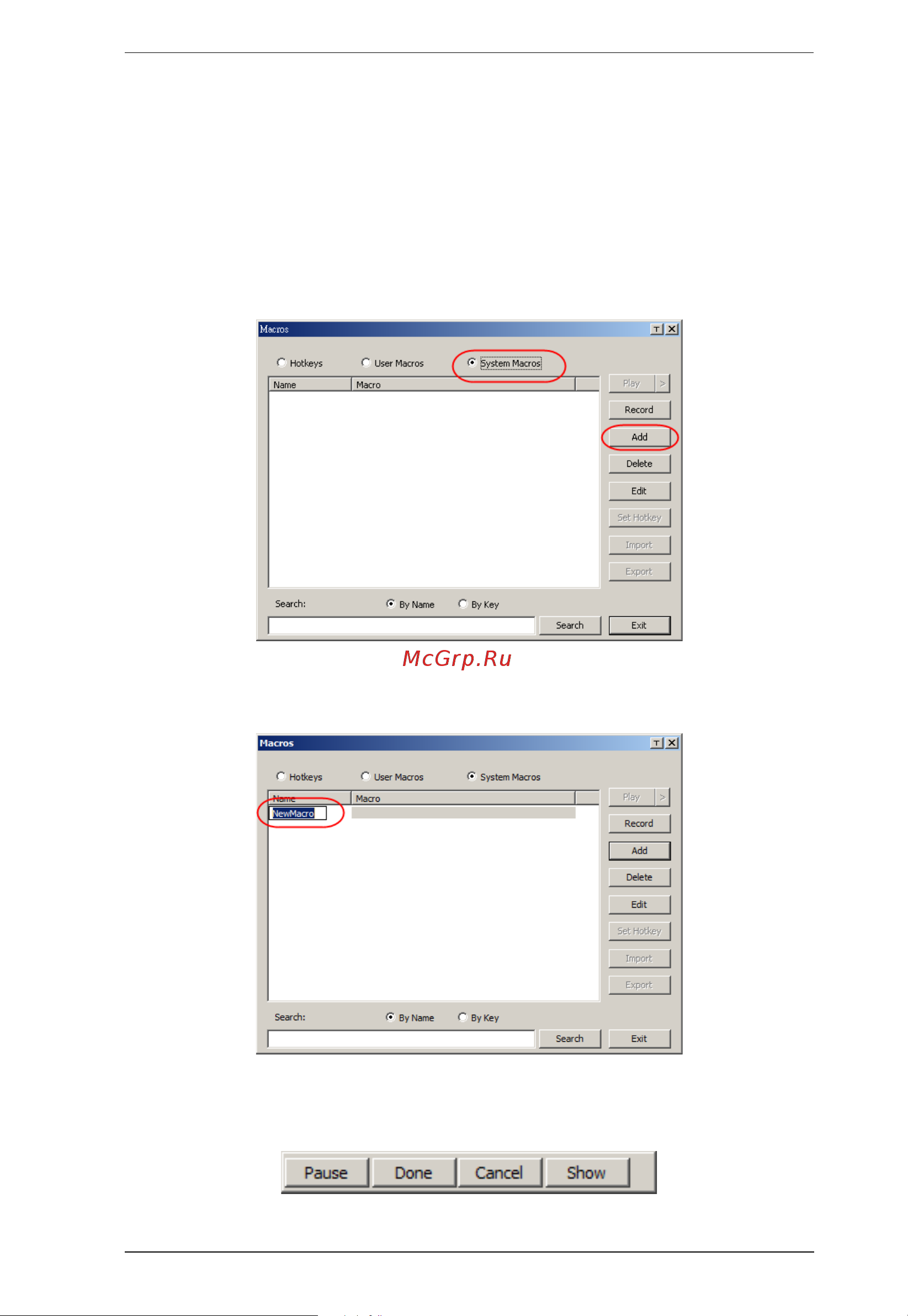

1. Select System Macros, then click Add.

2. In the dialog box that comes up, replace the “New Macro” text with a

name of your choice for the macro:

3. Click Record. The dialog box disappears, and a small panel appears at the

top left of the screen:
