RCMMS User Manual
52
Gamma Adjustment
If it is necessary to correct the gamma level for the remote video display, use
the Gamma function of the Video Adjustment dialog box.

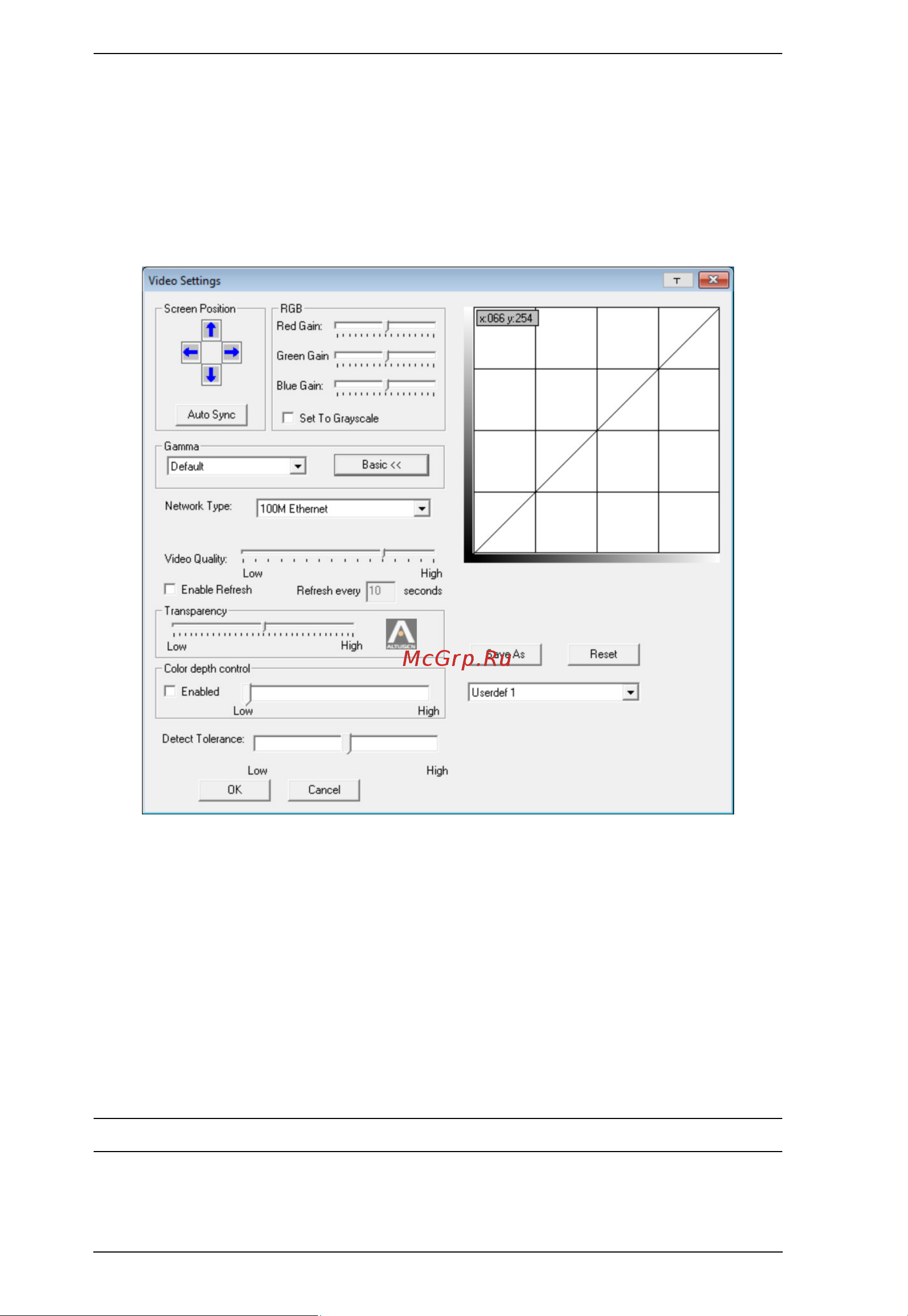

For greater control, clicking the Advanced button brings up the following
dialog box.
This section allows you to adjust the video display's gamma level.
Click and drag the diagonal line at as many points as you wish to achieve the
display output you desire.
If a gamma level is desirable, click Save As to save the current configuration
as one of the four user-defined configurations. Saved configurations can be
recalled from the list box at a future time.
Click Reset to abandon any changes and return the gamma line to its original
diagonal position.
Note: For best results, change the gamma while viewing a remote computer.
