Chapter 8. The WinClient Viewer
59

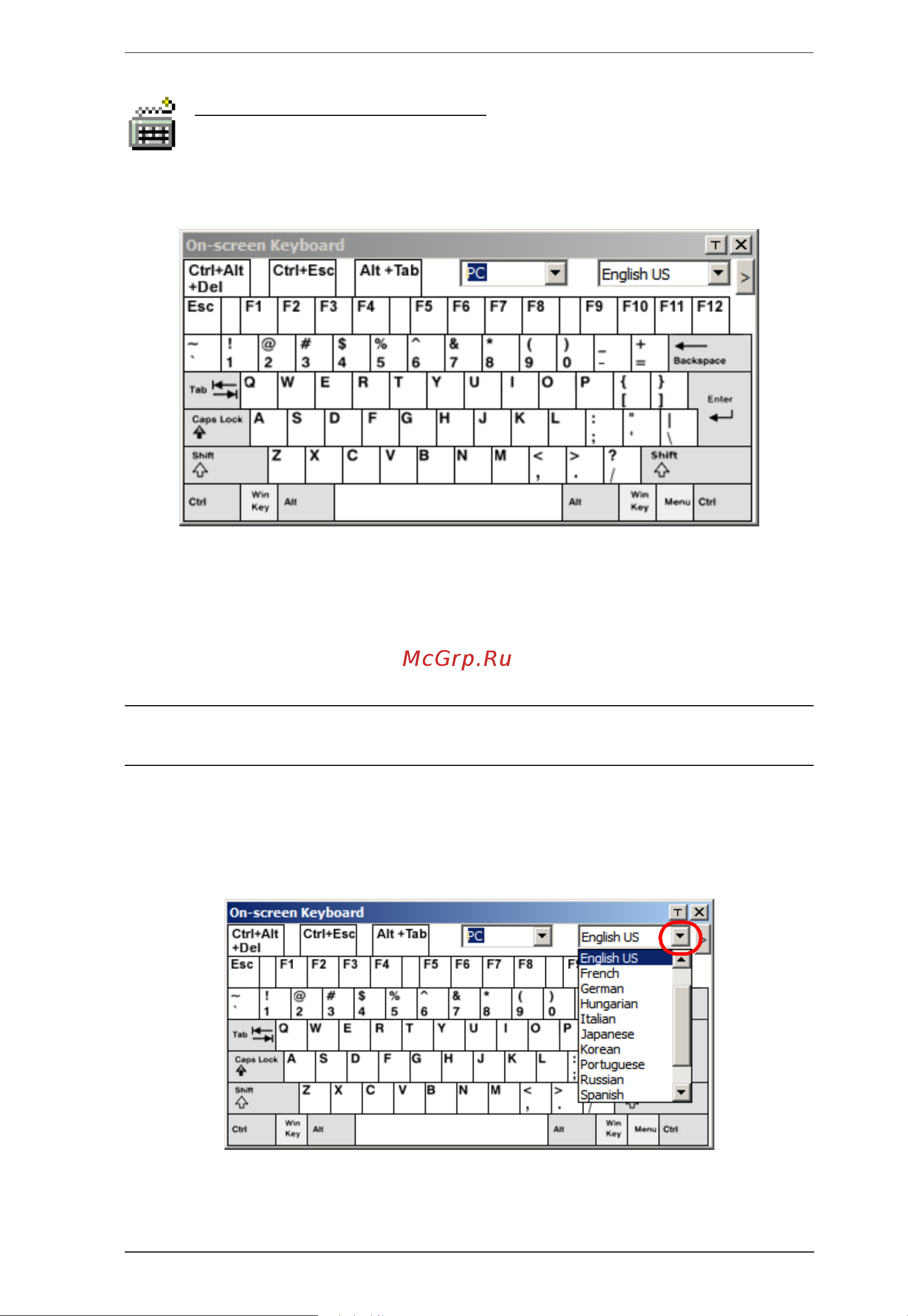

The On-Screen Keyboard
The RCM device supports an on-screen keyboard, available in multiple
languages, with all the standard keys for each supported language.
Click this icon to pop up the on-screen keyboard:
One of the major advantages of the on-screen keyboard is that if the keyboard
languages of the remote and local systems are not the same, you do not have to
change the configuration settings for either system. The user just has to bring
up the on-screen keyboard; select the language used by the computer on the
port he is accessing; and use the on-screen keyboard to communicate with it.
Note: You must use your mouse to click on the keys. You cannot use your
actual keyboard.
To change languages, do the following:
1. Click the down arrow next to the currently selected language to drop down
the language list.
2. Select the new language from the list.
