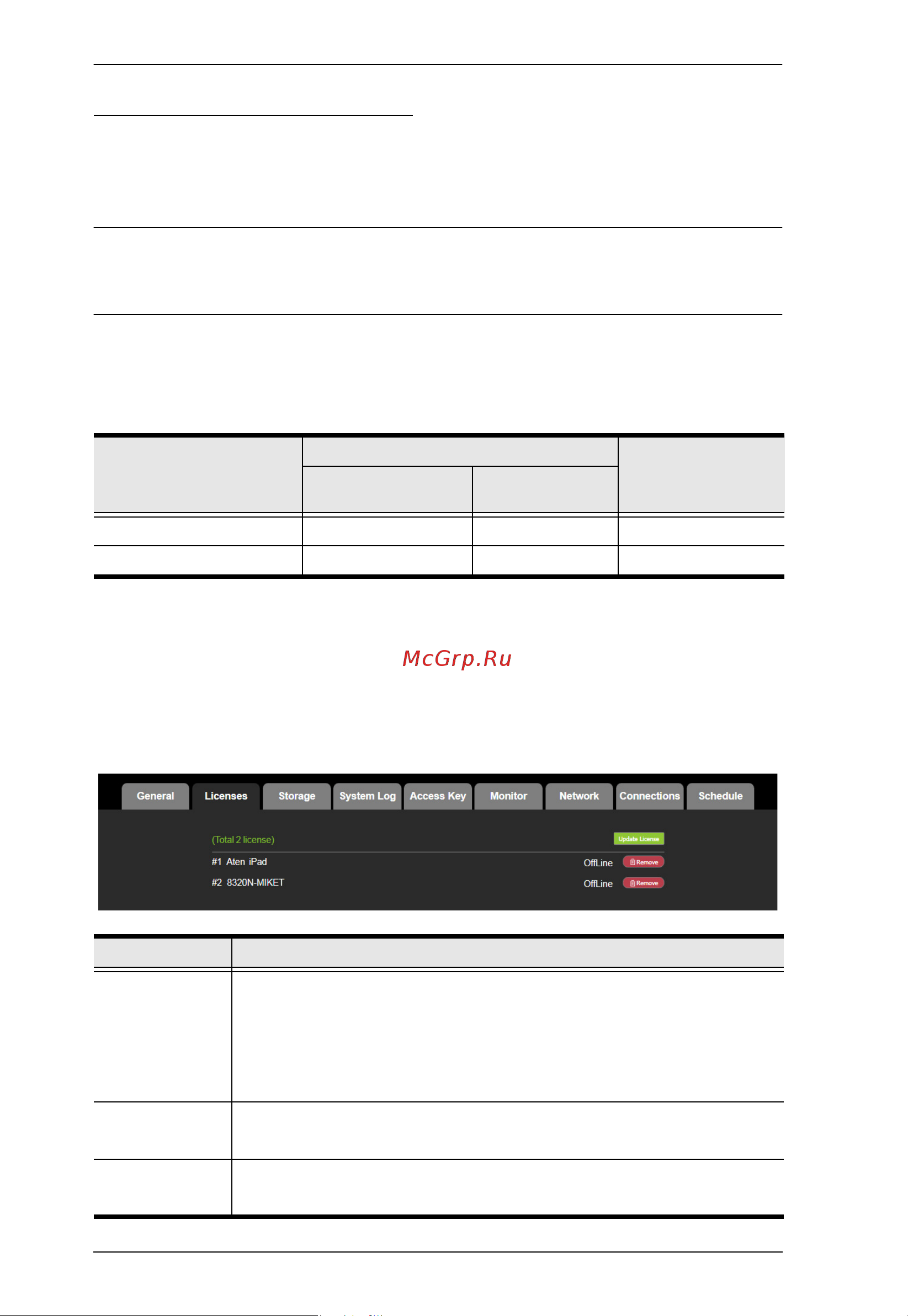

ATEN Control System User Manual
84
Licenses for Mobile Control
A license is a software permit that an ATEN controller grants to a mobile
device for remote control. If you have three licenses for a controller, you can
have three mobile devices remotely operate the controller at the same time.
Note: When using an ATEN Touch Panel for remote control, make sure to
upgrade the controller to version 2.8 or later, which recognizes the
Touch Panel as an ATEN device and will not require a license.
Refer to the table below for the number of free licenses and the maximum
number of paid licenses each controller supports. To purchase additional
copies of license, contact your local sales representative.
You can use the Licenses tab to:
Find out the total number of licenses, the number of licenses that are
available, and those that are in use
Upload licenses to the ATEN controller
View license information
Licenses
ATEN Control Box
ATEN Control Pad
(VK0100 / VK0200)
VK1100 / VK2100
VK1100A / VK2100A
VK1200 / VK2200
No. of free licenses 2 2 0
Maximum no. of licenses 16 32 10
Setting Description
Licenses
In Use: displays the number of licenses being used by mobile
devices.
Not in Use: displays the number of licenses available for use.
Total shows the number of licenses purchased for the controller.
Update License Clicking Add License opens the Add License window to import new
licenses to the controller.
Remove When a device is accessing the controller, you can click the Remove
button to disconnect the session.
