ATEN Control System User Manual
170
Configuring Button/Slider Bar Actions
To add one or more actions to a button, slider bar, or dial key, follow the steps
below.

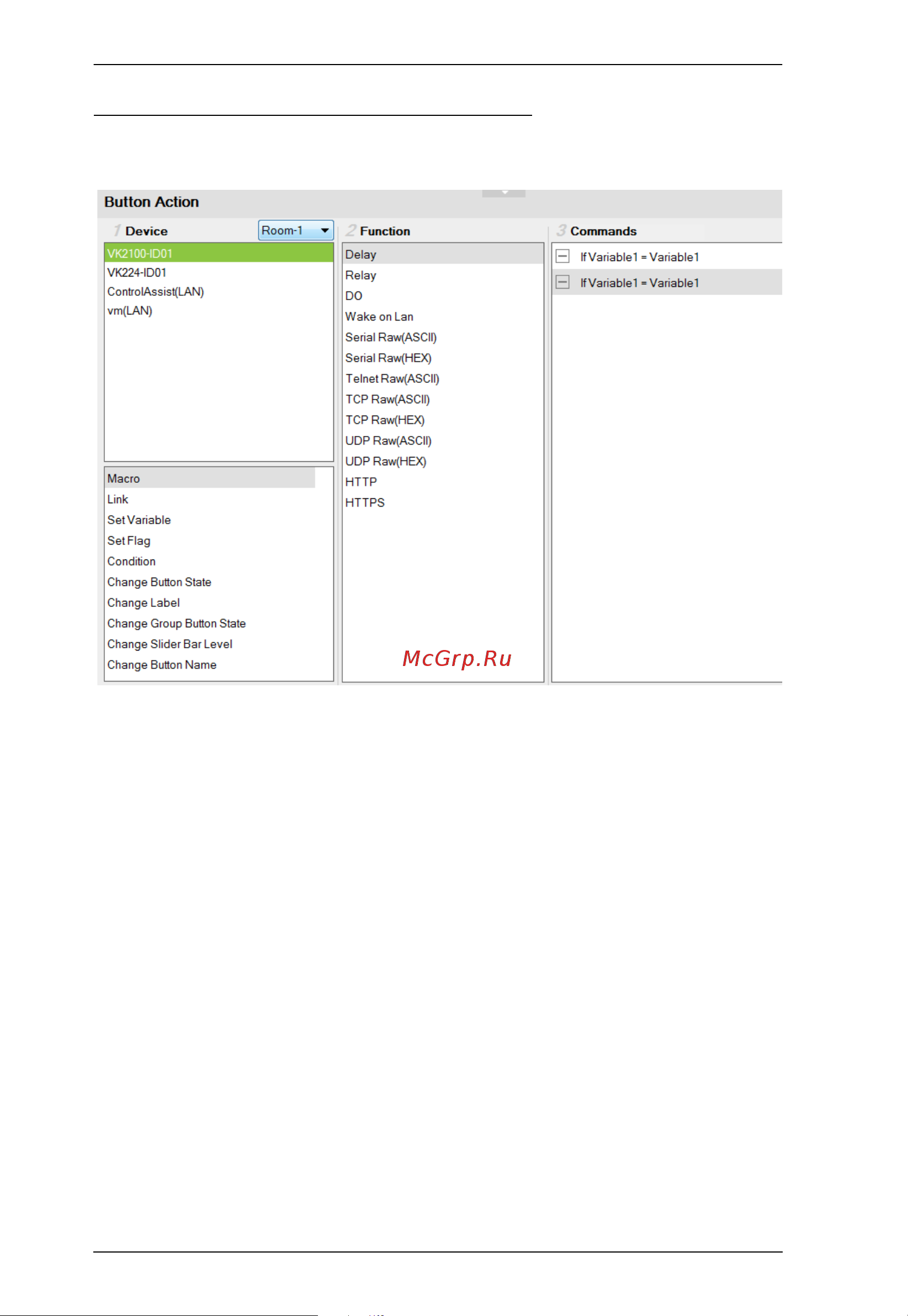

1. In the project file, click to select the button, slider bar, or dial key in the
Viewer. The Button/Slider Bar Action panel appears.
2. In the Button/Slider Bar Action panel, select a Room.
3. Add commands.
For details on device functions and advanced functions, see Functions,
page 171.
a) Click a device or an advanced option to display its supported functions.
b) Double-click a function to add it to the Commands list.
c) Repeat step 3a and 3b if you wish to initiate a sequence of actions.
4. In the Commands list, double-click the commands to configure them.
