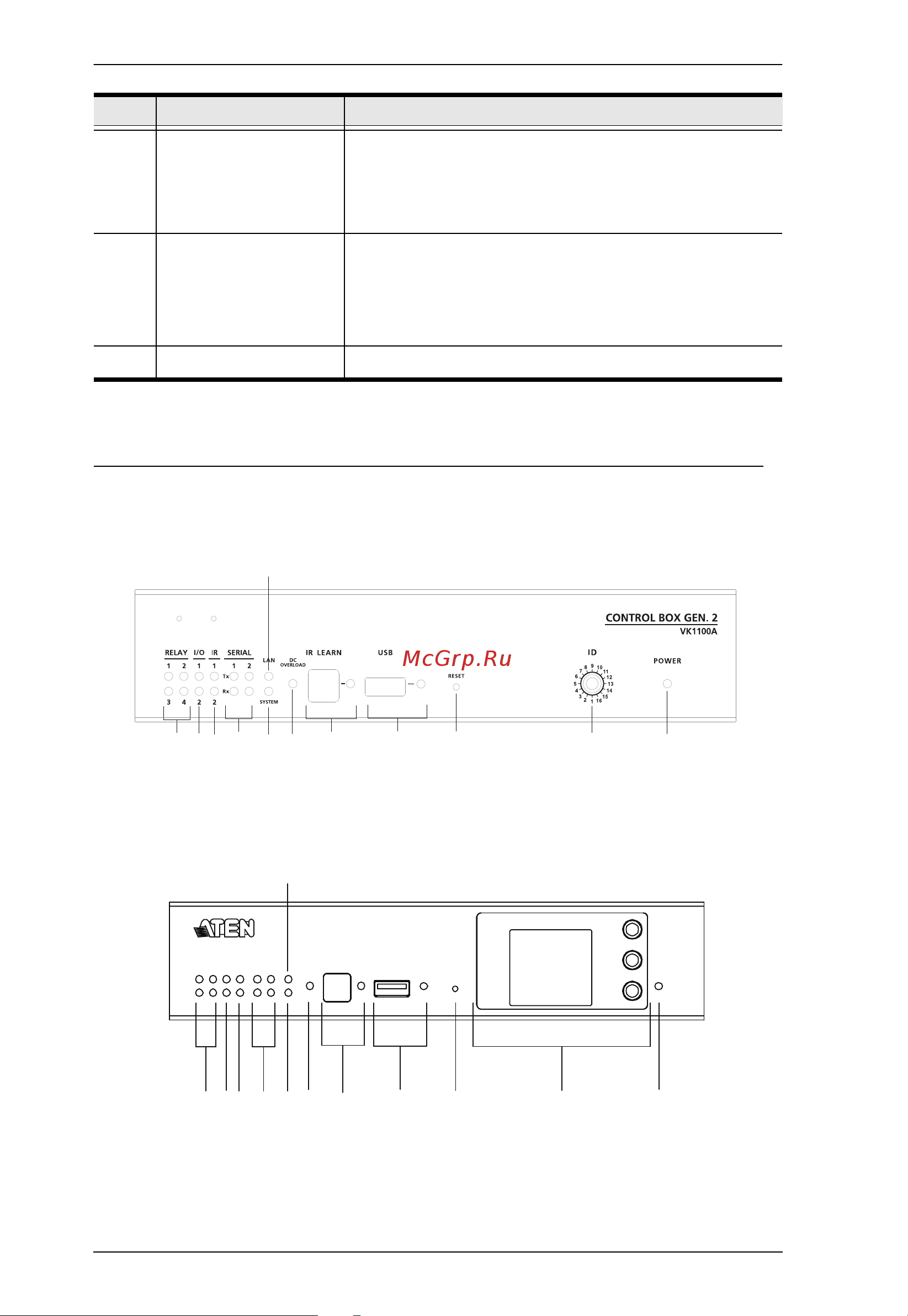

Aten VK330 [38/378] Vk1100a vk1200 vk2100a vk2200 panel components

ATEN Control System User Manual

VK1100A / VK1200 / VK2100A / VK2200 Panel Components

VK1100A Front View

VK1200 Front View

9 RS-232/422/485

serial ports

4 / 2 ports supporting RS-232/422/485 conversion by

pin assignment and RTS/CTS flow control. The RS-

232, RS-422, or RS-485 connection is defined by pin.

For pin assignments, see page 46.

10 Ethernet port Connects the unit to a network. If no IP address is

assigned by a DHCP server within 30 seconds, the

below default IP settings are used:

IP: 192.168.0.60 / mask: 255.255.255.0

11 controller ID switch Used to set an ID for the Control Box.

No. Component Description

2 3

8 9

12 14

8 9

10 141311
