Chapter 4. ATEN Configurator (VK6000)
143
Viewer Control Objects
Understanding Control Objects
The ATEN control system supports a wide range of control objects, such as
buttons, slider bars, videos, and PowerPoint controls that you can use and
customize.

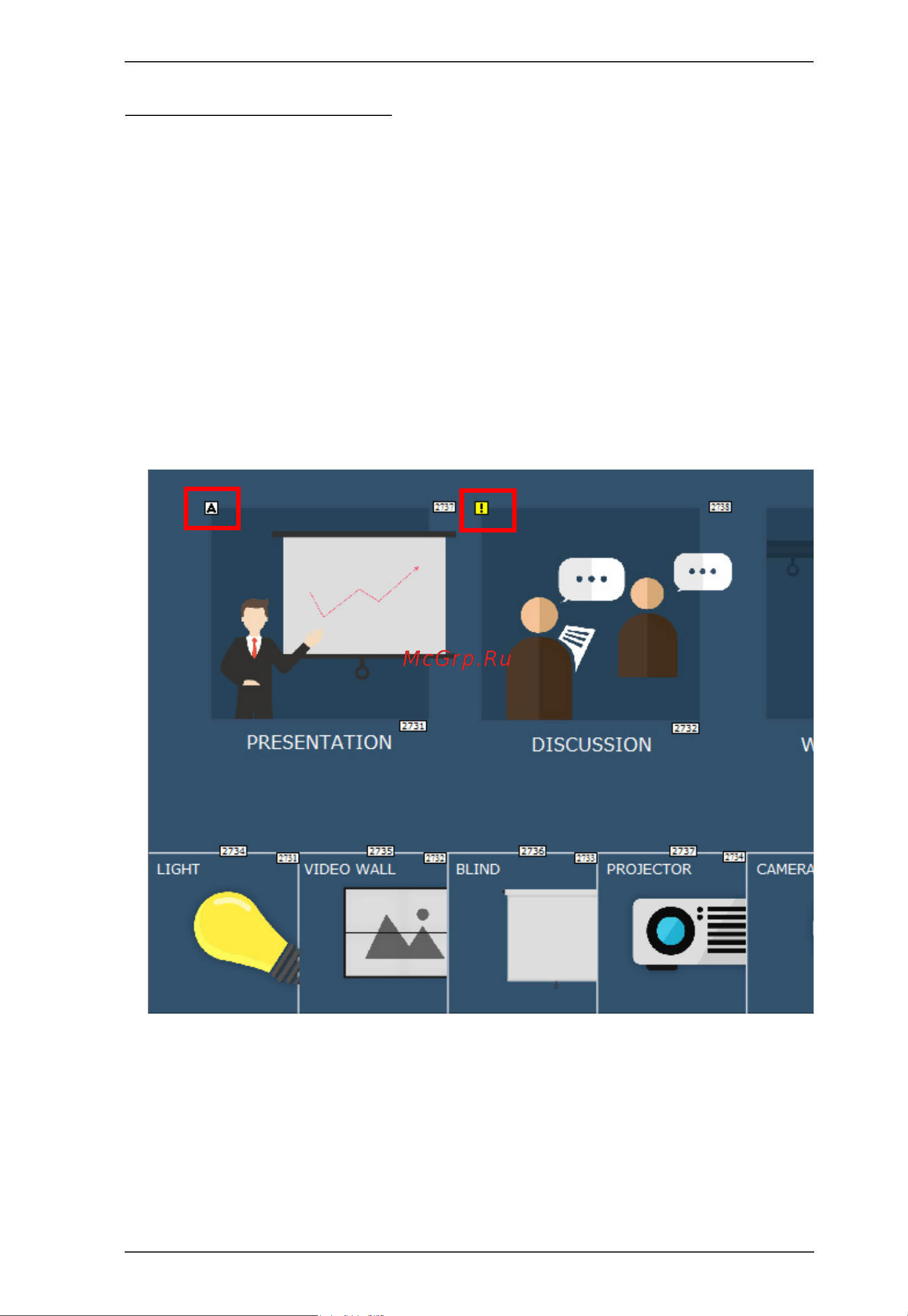

Each button has a symbol in the top left corner to indicate:
“A” the button’s actions are configured correctly.
“!” the button’s actions need to be modified or they will not work.
Buttons with no symbol indicate that functions have not been added to it.
For details on adding functions, see Button / Slider Bar / Dial Kit Actions,
page 168.
Each object is identified by an ID at the top right corner. These IDs are assigned
in the order of creation. These IDs help identify a label when configuring a
Change Label (page 185) or a button when configuring a Change Button
State (page 184).
