ATEN Control System User Manual
106
Creating Projects

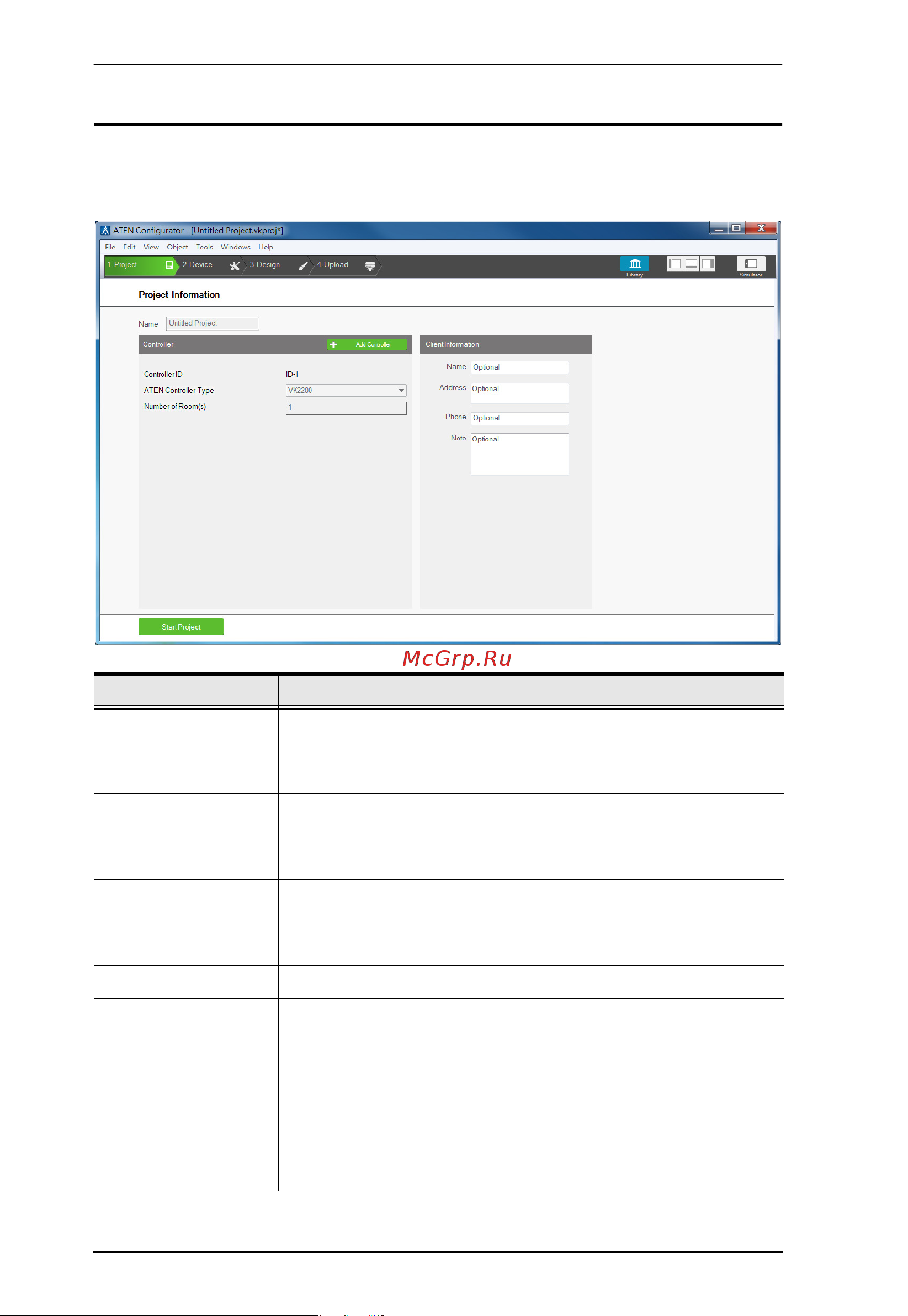

The Project tab allows you to enter details about the installation to start the
project. Enter the information using the table below as a guide.
Control Description
Name Enter the project name you are setting up. You can create
multiple projects but for most installations only one project is
required.
Add Controller Click to add controllers to the project. The number added
should match the number of controllers installed. A project can
have up to 16 controllers.
Controller ID Displays the controller ID. Make sure the ID in this field
matches the ID on the controller so that the project file will be
uploaded to the specified controller.
ATEN Controller Type Select the model for the controller.
Number of Rooms Enter the number of rooms each controller will control. Each
hardware device you add will be associated with a room. When
buttons are configured in the Design tab, you can select a
Room under Button Action to filter the Device list so that only
hardware in that room appears. This link between the
controller, devices and room is how the Viewer knows which
devices to control.
