ATEN Control System User Manual
244

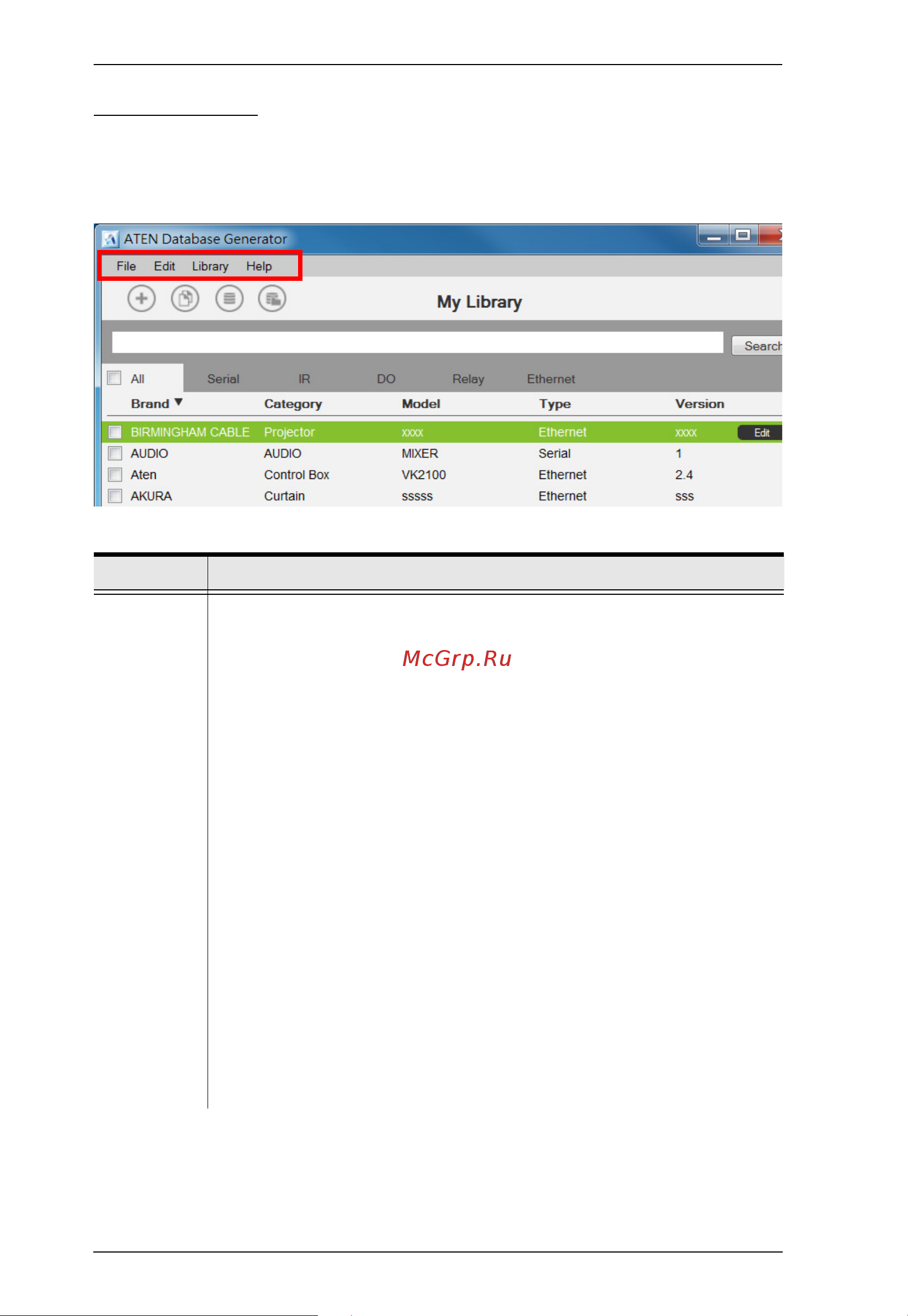

Function Tabs
More functions can be accessed from the function tabs toward the top of the
My Library window. Refer to the table below for information about each
function.
Tab Description
File The File menu providdes options to:
Add New Device: Configure a custom hardware device
to add to Device Library.
Add Device from ATEN Device Library: Add devices
from the ATEN Device Library to My Library.
Add Device from Driver File: Add devices from a data-
base file (*.vkd) to My Library.
Export My Library: Saves My Library as a database file
(*.vkd) that can be imported later.
Export Selected Device: Saves the selected device(s)
as a database file (*.vkd) that can be imported later.
Controller Connection: Searches for a controller to
test the connection or run the learning mode for the IR
port.
Quit: Exits the program.
