ATEN Control System User Manual
120
I/O Device Properties

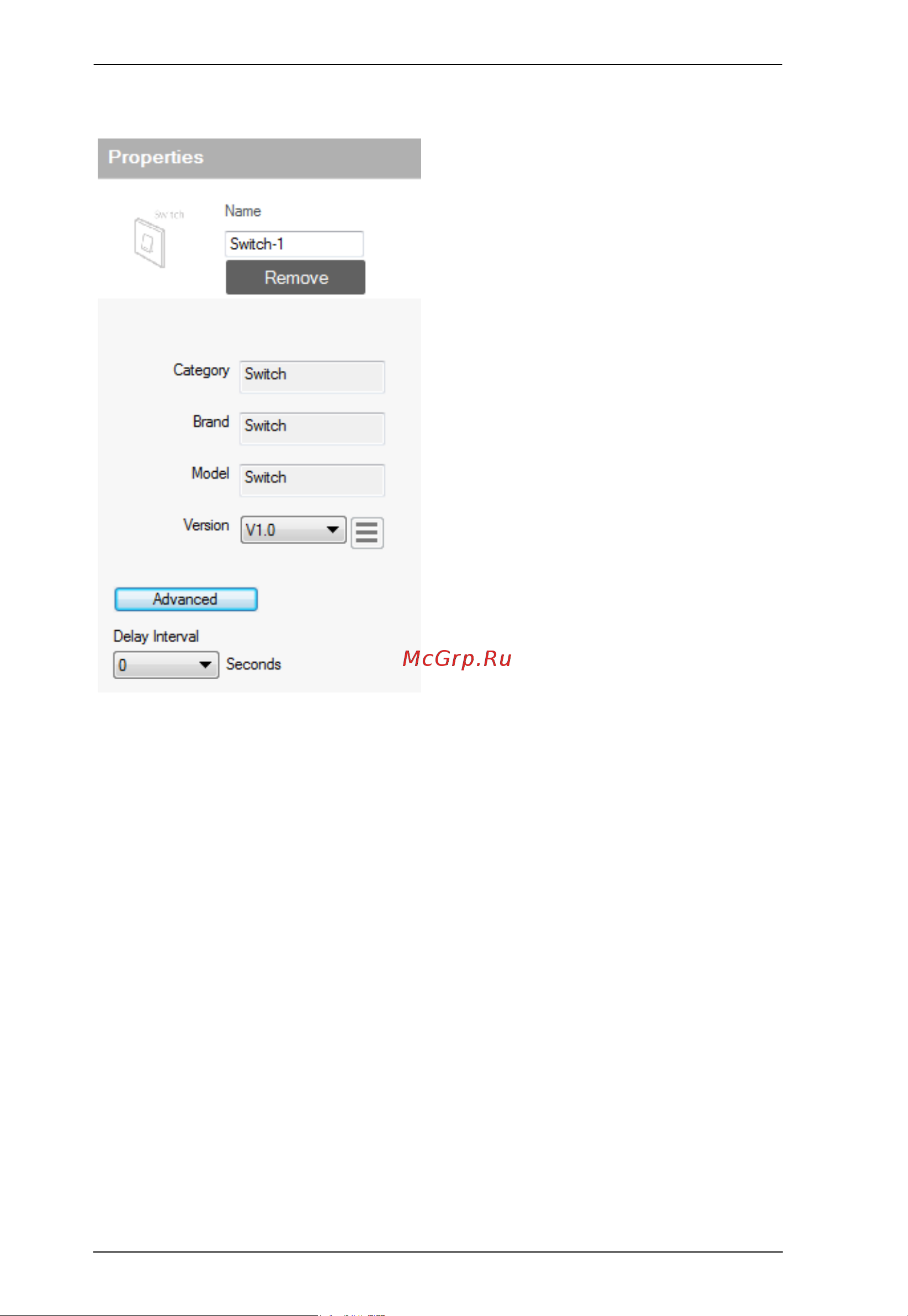

Click an I/O device from the Device
Configuration list and select Input
(VDC), Input (Dry Contact), or Output
to configure its properties.
Name: Displays the device model.
Add Device: Use this button to add
devices. For details, see Adding Non-
KNX-Compliant Devices to ATEN
Configurator, page 112.
Category: Displays the category of
the selected device.
Brand: Displays the brand of the
selected device.
Model: Displays the model of the
selected device.
Version: Shows the firmware version
selected for the device. Use the drop-
down menu to select a different
firmware version. Click the menu box
next to the version number to open a
PDF with the version history. The
version history and different versions for a device can be manually added/
updated via the Database Generator (see step 3 of Editing / Adding a New
Device, page 248).
Lower Threshold & Upper Threshold: Set the thresholds according to the
hardware device you are connecting and then configure a Monitor (see
page 197).
Advance Settings: Click Advanced to display the Delay Interval setting.
Delay Interval: Sets a time delay for each command before they are
sent to the device.
