ATEN Control System User Manual
226

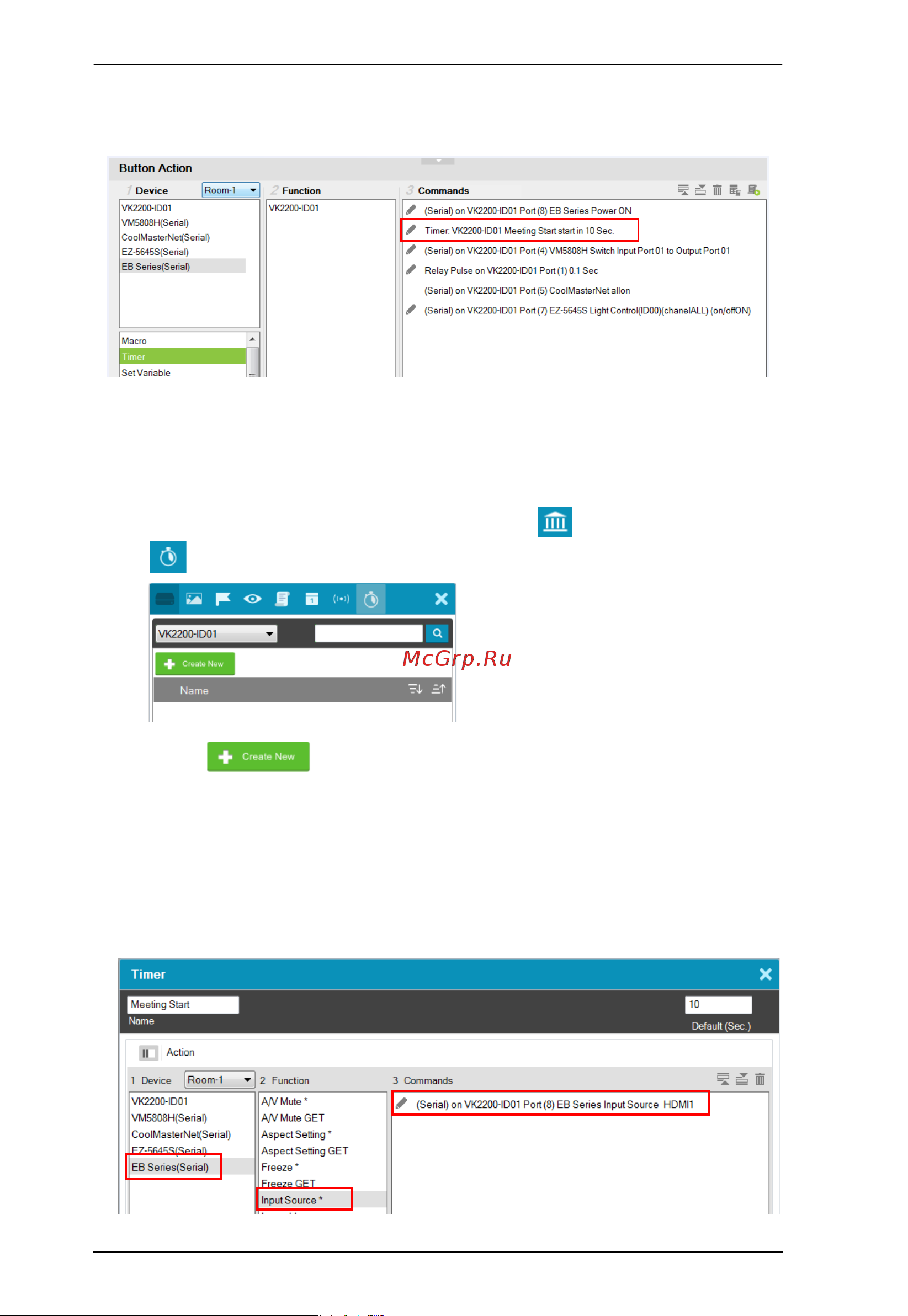

The configuration for the start meeting button is as follows, with the projector
source switching configured as a timer event:
Configuring a Timer Event
1. Create a timer event in the Library.
a) In Configurator, go to 3. Design > Library , and then click Timer
in the pop-up window. This screen appears.
b) Click . The Timer window appears.
c) Add a device action (command). For more details about commands
(device actions), see Configuring Button/Slider Bar Actions, page 170.
For example, for a projector to switch its input source to HDMI, click
the device in the Device column and then double-click the input source
command from the Function column. Double-click the added
command to select HDMI for the Input Source.
