ATEN Control System User Manual
72
Mounting the Touch Panel
The VK330 Touch Panel supports desk mount, wall mount, or any 3rd-party
mounting accessory that is VESA compliant (75 x 75 mm). For more information
about the mounting accessories, please visit the product web page.

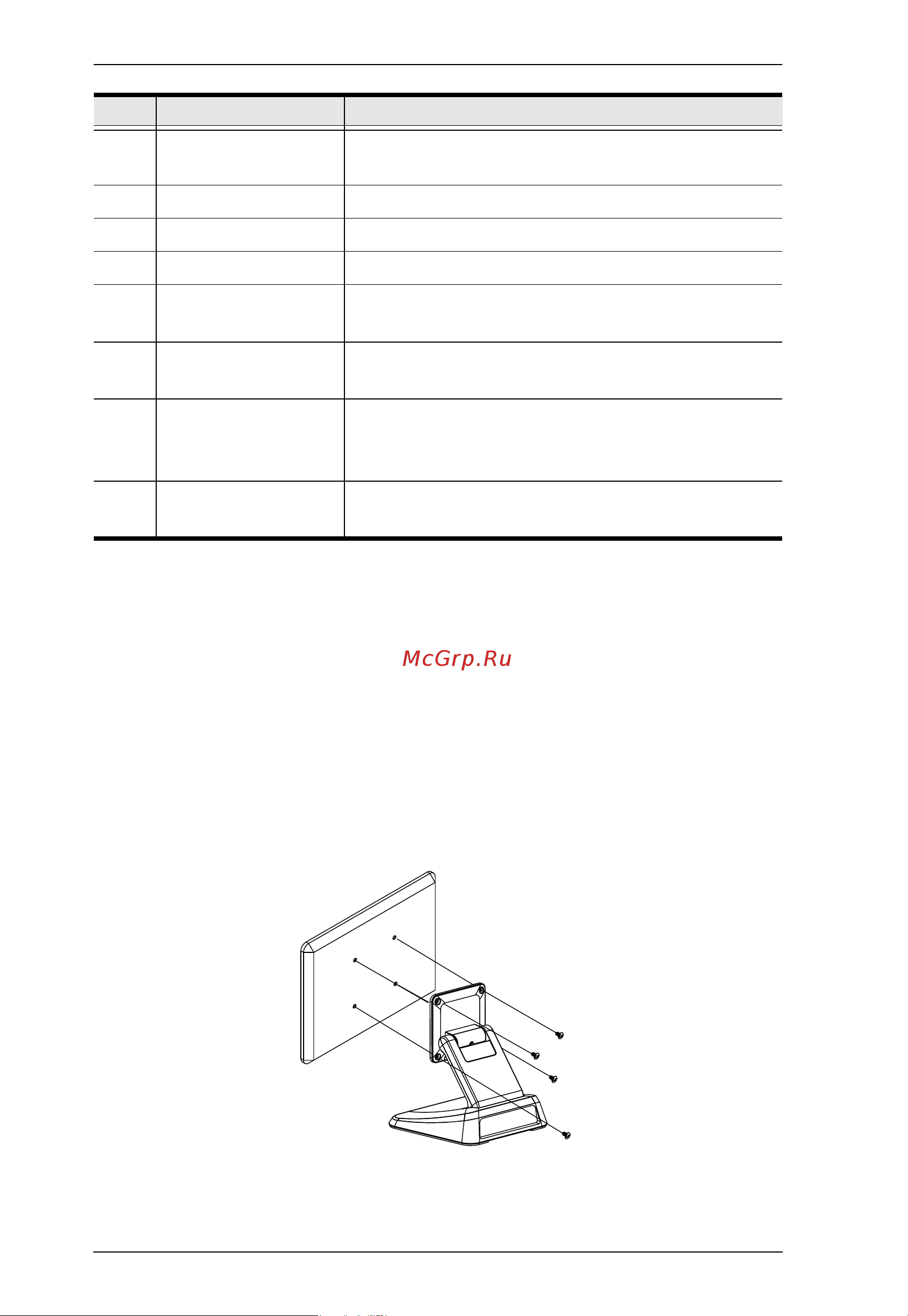

Desk Mount
To mount the VK330 on a desk using ATEN desk mount accessory — VK304
— refer to the diagram below.
6 screw holes for panel
plate
Screw holes used to secure a panel plate to mount the
touch panel on a wall.
7 speakers Plays beep sounds to indicate control actions.
8 power switch Turns the touch panel on or off.
9 power jack Receives a power cord.
10 reserved for
debugging purpose
These ports are reserved for debugging.
11 USB Micro-B port Use this port to upgrade/downgrade the device
firmware.
12 USB type-A port Use this port to update the ATEN Control System app
installed in the Touch Panel. For details, see Updating
Control System App, page 79.
13 LAN port with PoE Receives an Ethernet cable which supplies network
connectivity (and power by PoE).
No. Component Description
