Chapter 4. ATEN Configurator (VK6000)
115
Device Properties
The Properties panel provides information and configuration fields for
controllers, Expansion Boxes, remote devices, or rooms. Click a device or room
from the left sidebar or the Device Configuration list to display its properties.

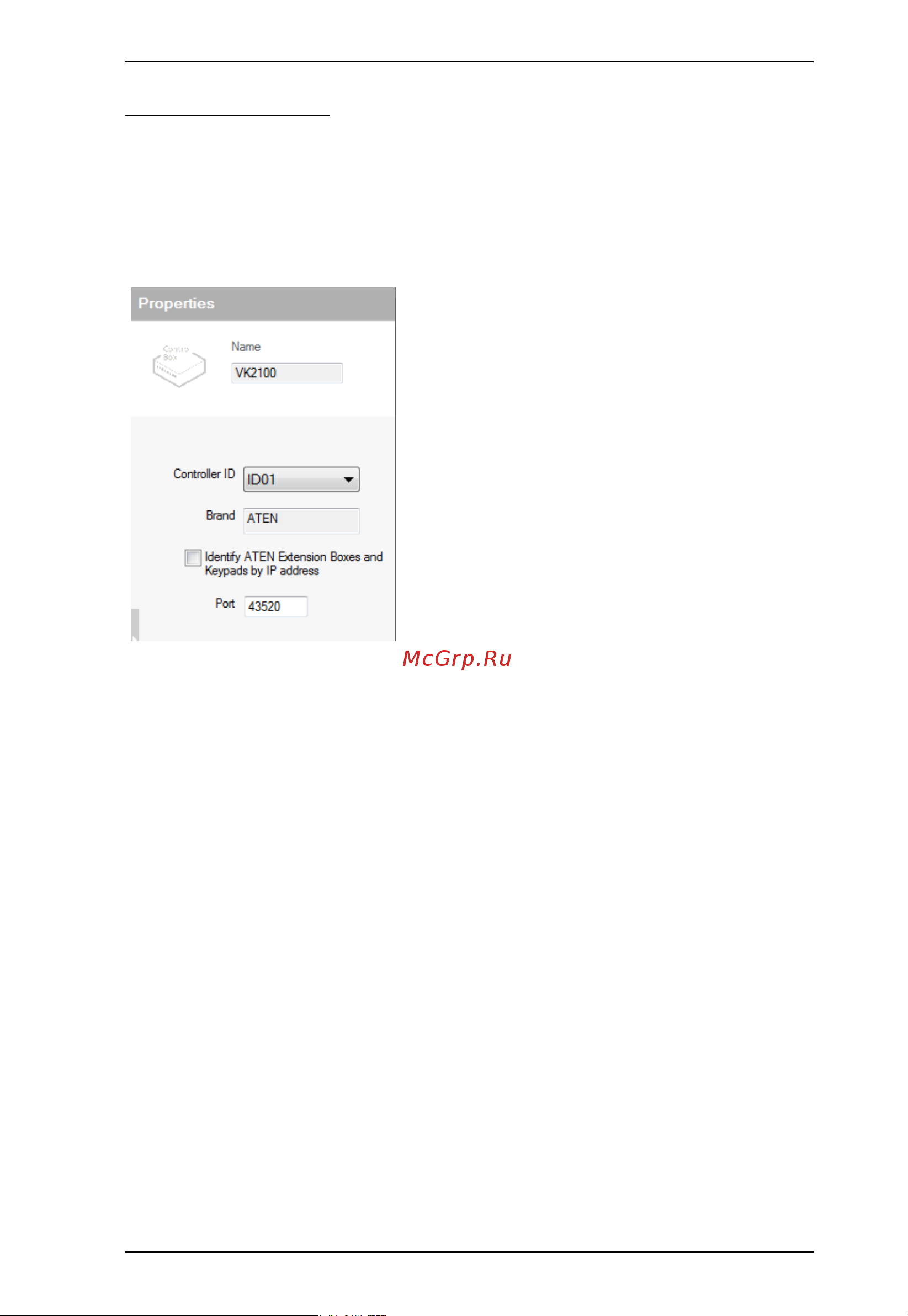

Controller Properties
Click a controller from the left sidebar or from
the Device Configuration list to configure or
view the following properties.
Name: Displays the device model.
Controller ID: Sets the controller ID. ATEN
Expansion Box and Keypad will connect to a
controller with a matching controller ID as set
on the Expansion Box or Keypad using the
Controller ID Switch.
Identify ATEN Expansion Box and Keypad by IP Address
Enable this function for the controller to connect to ATEN Expansion Box or
Keypad by identifying their IP addresses. Use this function if any of the
following scenarios applies:
When you have more than 16 controllers under the same subnet, in
which case you would have at least one controller using the same ID.
When your network switch blocks multicast signals between the
controller and the Expansion Box / Keypad.
To use this function, make sure to do the following.
On the Expansion Box/Keypad:
Set the controller ID using the Controller ID Switch. When you
have more than 16 controllers under a subnet, at least two of the
Expansion Boxes and/or Keypads will be assigned with the same
controller ID.
Set the Expansion Box/Keypad to a fixed IP address.
In the project files:
