Labels

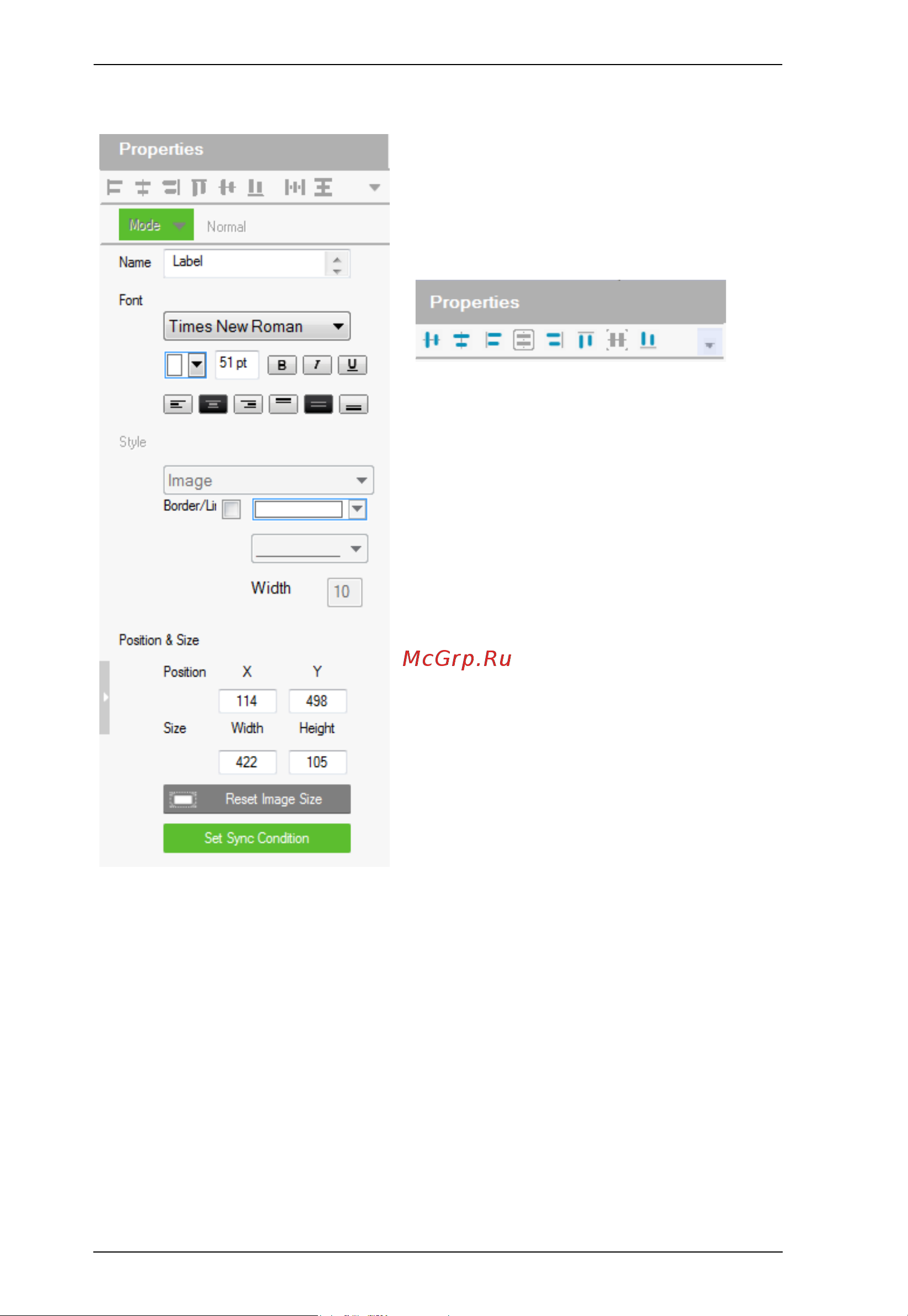

The Label properties provide settings for

the displayed text and its format.

Alignment – Aligns a group of objects.

Select multiple objects for the buttons to

become available:

Name – enter the text you want to use

for the label or slow double-click the

label on the Edit page.

Font – use the drop-down menu to

select the font type.

Color – use the drop-down menu to

change the color of the text.

Size – enter a number (1-200) to set the

size of the text.

Format– format text to Bold, Italic or

Underline.

Alignment – click a box to align the

text Right, Center or Left; and Top,

Middle or Bottom within the label box.

Border/Line – select this option to

configure the color, format, and width of

the display screen border.

 Position and Size – X and Y position the label at the coordinates entered.

Width and Height set the size of the label.

 Set Sync Condition – Displays the value of the selected variable in

percentage or its raw form. To create variables, see Variables, page 218.
