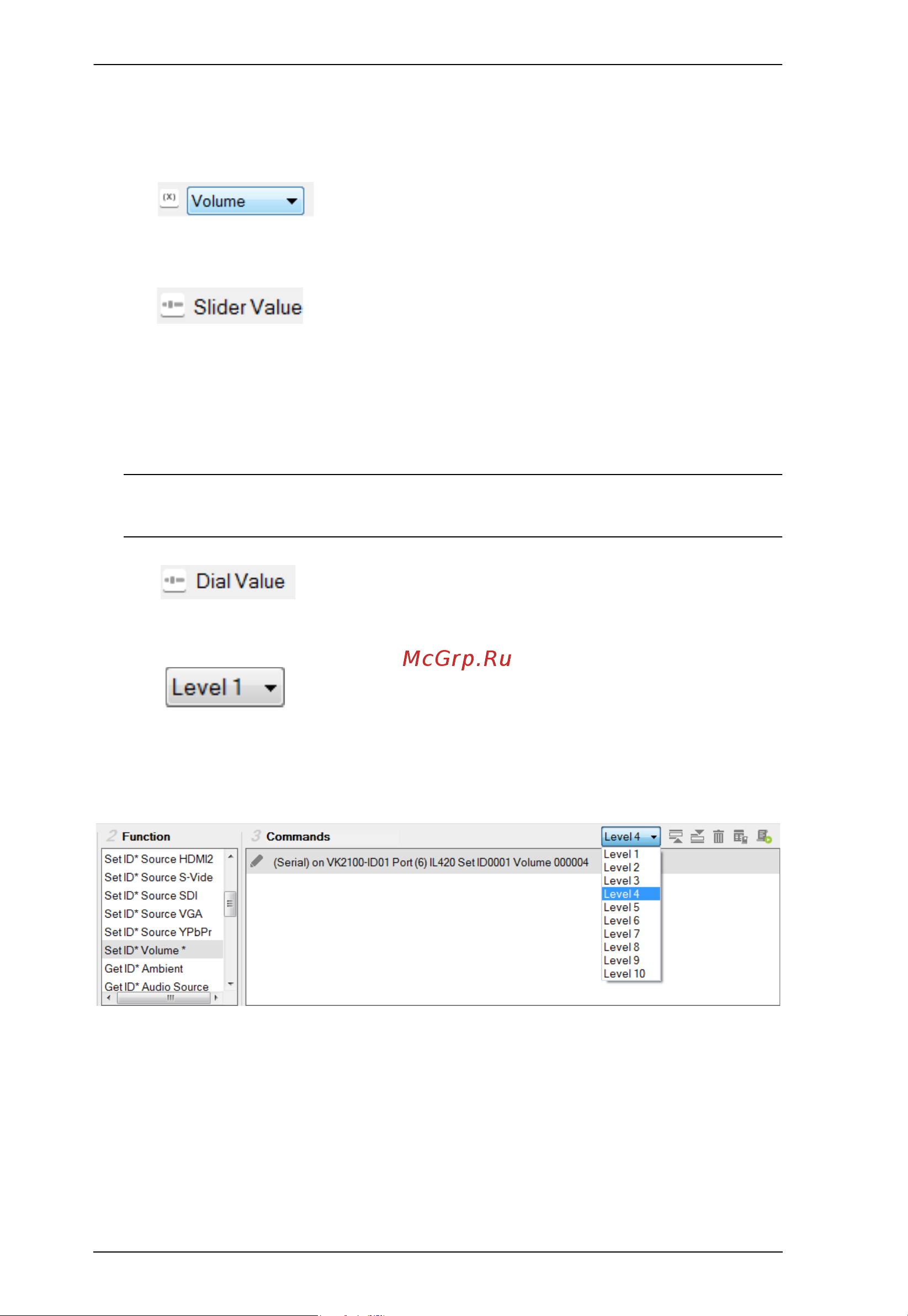

ATEN Control System User Manual
174
the device). When that (Set Flag) button is pressed, the Flag value is
set for that particular device, and will be used as the setting for this
action, when it’s button is pressed.
Variables – Select this option to use a Variable in
the command. After selecting the option, a drop-down menu
containing a list of the Variables that you created appear.
Slider Value – select this option to configure a Basic
Slider Bar’s command. The range and change levels are automatically
configured according to the minimum and maximum values set for the
Basic Slider Bar. This option only appears when a Basic Slider Bar is
selected on the Viewer page and you are adding Slider Bar Action
commands.
Note: The Show Flag Menu allows you to use a single Flag for all devices
rather than adding a Conditional Flag for each device.
Dial Value – select this option to use the string of
values that has been dialed using the dial kit via Viewer from a mobile
device.
Level – When an Advanced Slider Bar is selected on a
Viewer page, the Level drop-down menu appears above the Commands
list. A command must be added to each level of an Advanced Slider
Bar. To configure each level, use the drop-down menu to select a level
and then add a command to it.
