Chapter 4. ATEN Configurator (VK6000)
189
Change Button Name
The Change Button Name command is used to display specified text on a
selected button when the configured button is tapped. An application of this
command is indicating the assigned source for a display device on a Viewer as
soon as the source is assigned. This way, you can keep track of the source that
is currently showing on a particular display device.
Example:

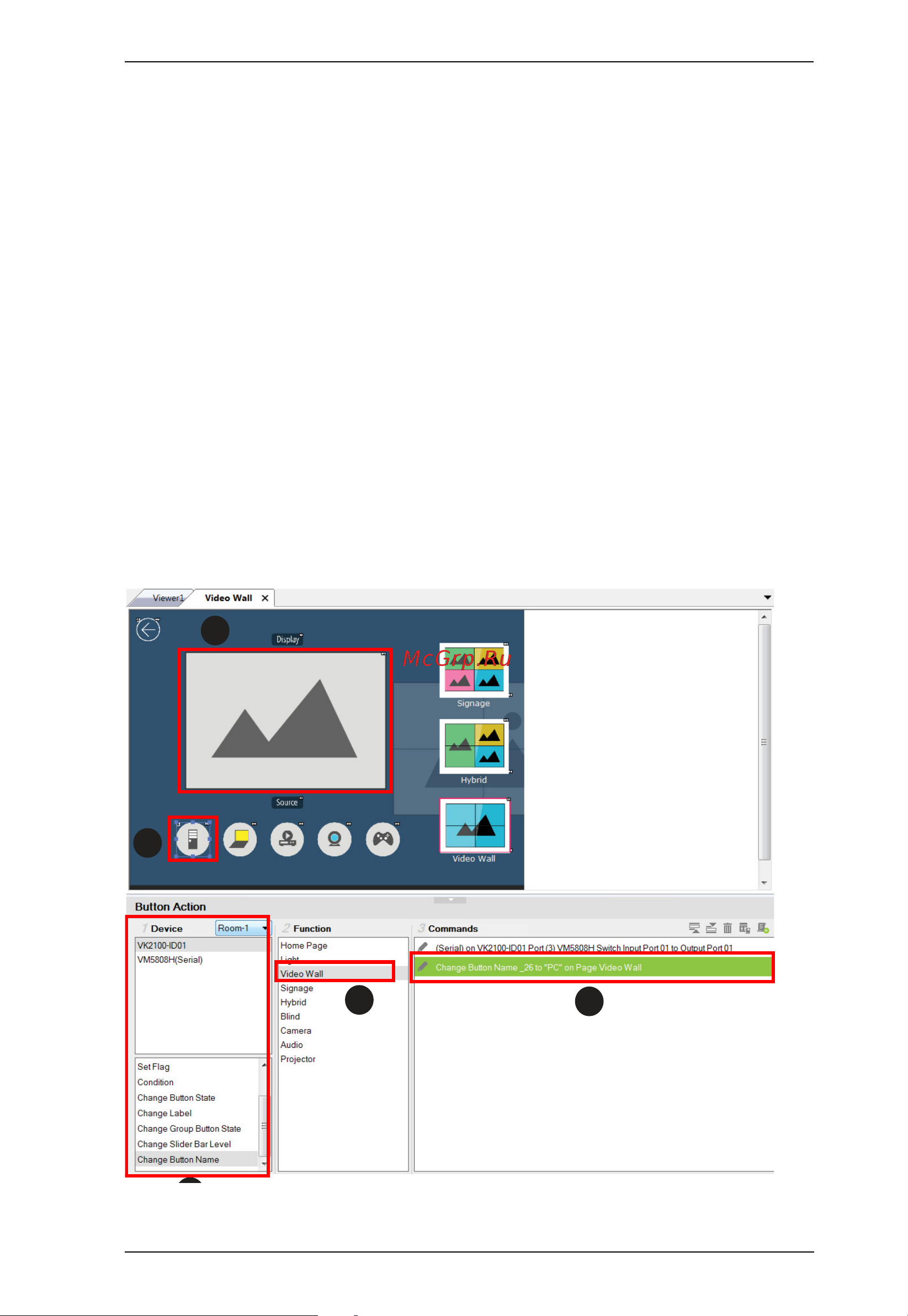

Indicate the currently assigned source on a display device (in the Viewer).
Assume an environment consisting of one monitor and five sources
buttons (computer, laptop, camera...etc.), as illustrated below, and that
when a source button is tapped, the source will be immediately assigned to
the display.
Configuration goal: To have the assigned source printing on the display
button (on the Viewer page), configure each source button so that when it is
tapped, the following actions (commands) initiate: (1) Display the source to the
display; (2) Print the name of the assigned source onto the display device.
1
