Chapter 4. ATEN Configurator (VK6000)

215

Macro

Macros allow you to create a button that will initiate a sequence of

actions across the same or different hardware devices. This saves time

by allowing multiple devices to initiate actions all at once from one button. For

example, you can create a macro to start a video presentation by adding

functions to: dim lights, power on source, power on display, lower screen and

play source. You can also add time delays between actions in a macro. Each

project can store up to 104 macros.

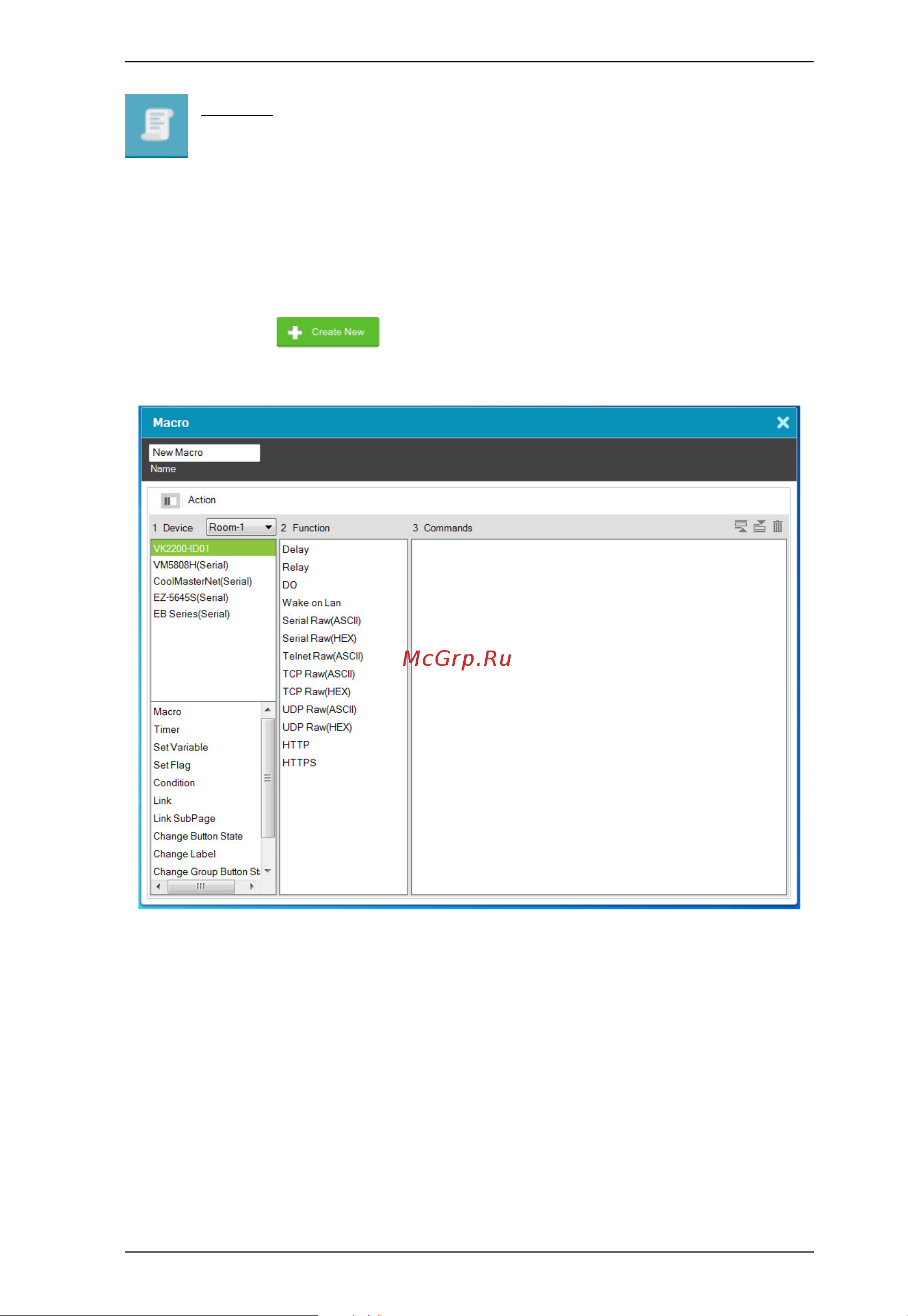

When you click

from the Library’s Macro tab, the window

opens:
