Samsung ITP5012L [26/164] Using the desktop stand

Page 10 © SAMSUNG Electronics Co., Ltd.

PREPARATION

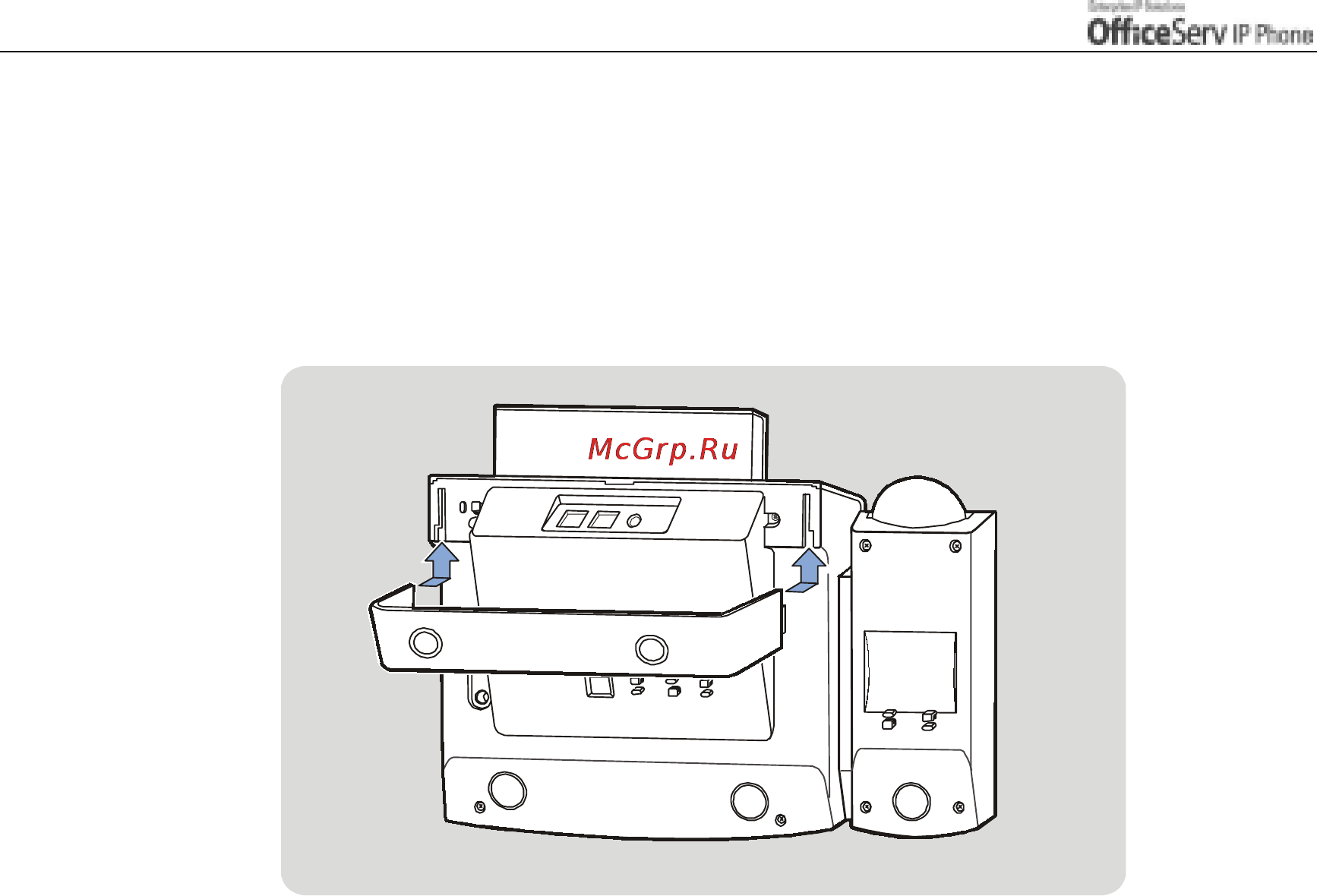

Using the Desktop Stand

If the phone needs to be used in a desktop environment, insert the desktop stand into the

two side holes, which are located at the rear of the phone, and push it in the upward

direction, as shown in Figure below.
