© SAMSUNG Electronics Co., Ltd. Page 49
MAKIN
G
A
C
ALL

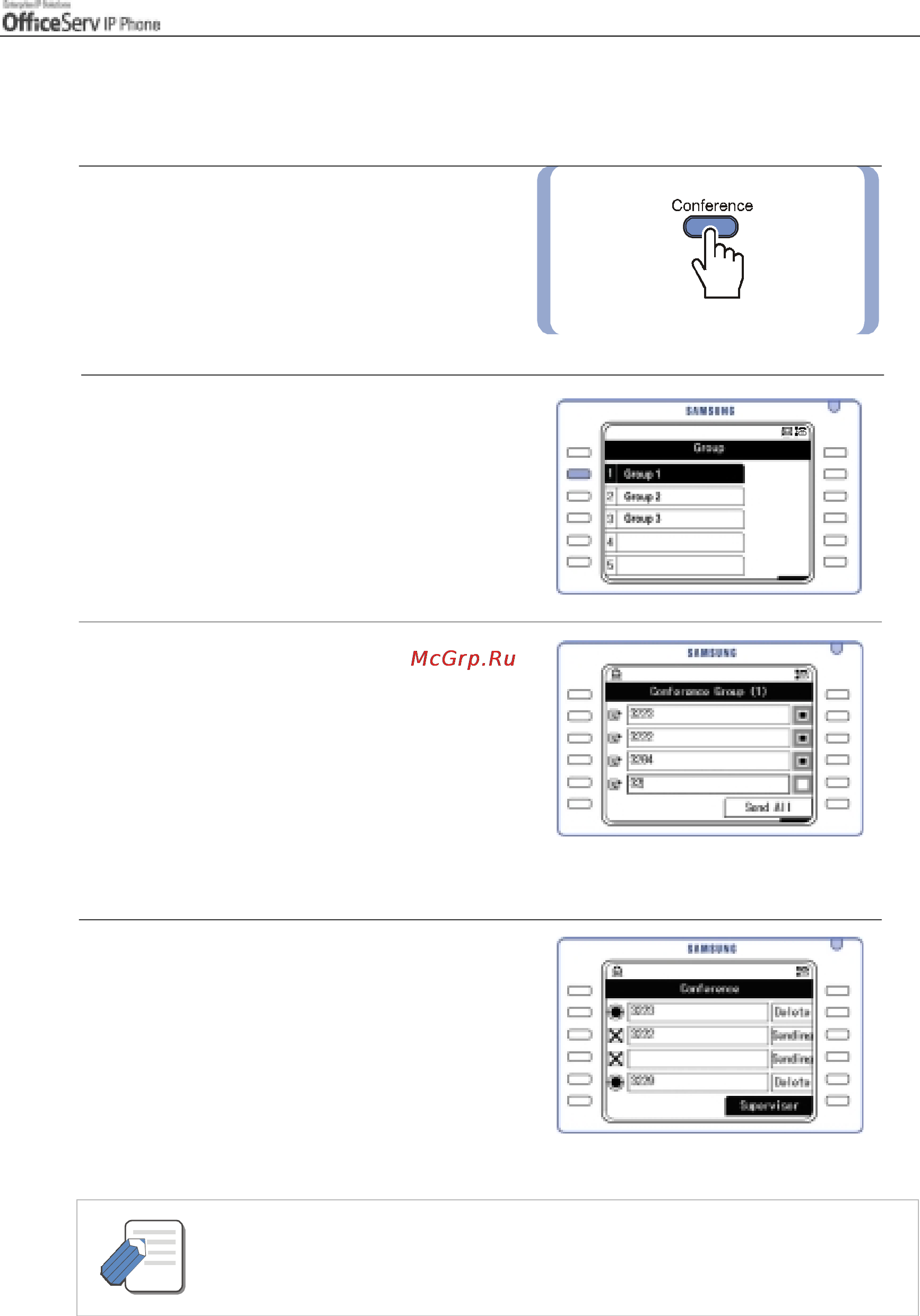

Conference Call
Up to 5 members, including you, can participate in a conference simultaneously.
1.
Press
[Conference]
button in the standby
mode.
2.
Press the
[Select]
button
for
[Group]
in the conference screen to display
the group list.
3.
Press the left
[Select]
button of the entry
box and enter the phone numbers
of the participants.
And press the
[Enter]
button.
!
To save the entered phone numbers in the group,
press the [Menu] button.
!
You can set or cancel the participant by pressing
the right [Select] button.
4.
Press the
[Select]
button of
the
[Send All]
menu.
The conference connection status
of all the numbers is displayed.
!
To disconnect a number from the
conference, press the [Select] button
of the [Delete] menu on the right side
of the number.
- If you press the [Transfer] button and dial the conference function code [4][6], you can
use the conference function to add additional parties. Please follow the displayed
instructions.
