Screen
4. Using the Soft Menu Screen

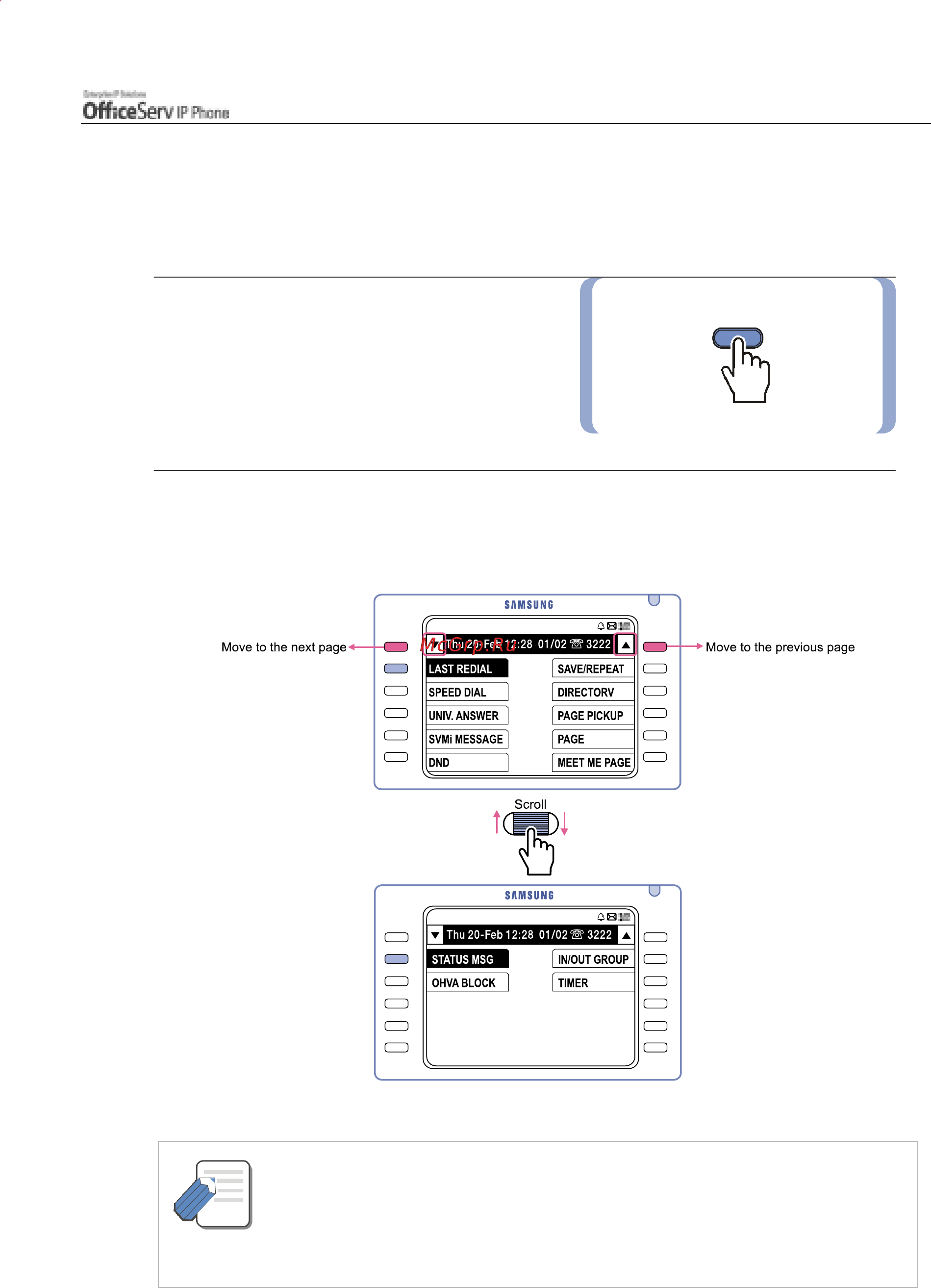

In the Soft Menu screen, the various features that can be used during the setup of a call or during
standby mode are displayed. You can use those features by pressing the associated [Select] button.
1.
When the telephone is in standby mode or
during a call, press the
[Screen]
button until
the Soft menu screen is displayed.
!
Even if you do not press the
[Screen] button during a call, the features that
can be used during a call will be displayed.
2.
Press the
[Select]
button
of the desired function from the displayed menus.
For example, if you want to use the [Last Redial] feature, you can press the [Select]
button next to [Redial].
- Moving the Scroll key up and down, allows you to search over multiple menu pages
on the soft menu screen.
- You can move to the preferred feature using either the Scroll key or navigation
direction buttons.
- The features displayed on the Soft menu screen vary with OfficeServ system versions.
