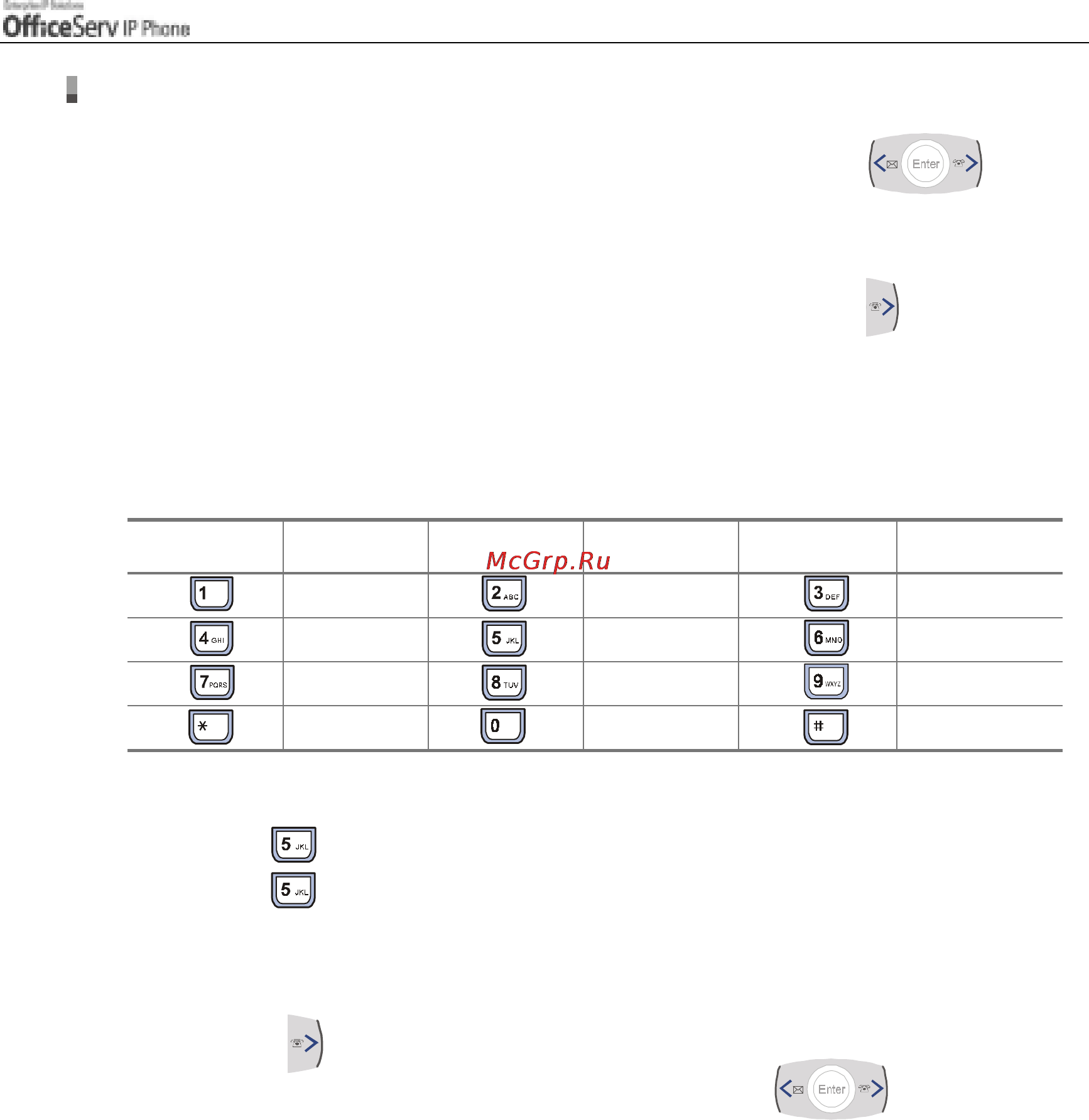

EMBEDEntering Letters of the Alphabet
1.
Press the
[Menu]
button to select the alphabet input mode. Use the
direction button to move a cursor.
2.
Then, press the dial buttons to modify or insert the desired letters.
If the letter to enter is the same as the previous character, press the direction button
to move the cursor one space to the right or wait until the cursor moves automatically
after a 3 second delay.
The location of alphabet letters on dial buttons is as follows.
Dial Button Alphabet Dial Button Alphabet Dial Button Alphabet
A B C
D E F
G H I
J K L
M N O
P Q R S
T U V
W X Y Z
* / . # @ -
!
Press the button repetitively until the desired alphabet letter appears.
e.g.) Dial twice to enter K.
Dial three times to enter L.
!
To enter another letter from the same button sequentially, enter the first
letter, wait for about 3 seconds, and then press the button again.
- Press the direction button to insert blank.
- To insert a blank between the entered characters, press the direction
buttons to move a cursor to a character that will be right next to the blank, and press
the dial button [0] once.
!
Press the [Cancel] button to delete any characters one by one. Press the [Cancel] button for
more than 2 seconds to delete all characters.
