CONVENIENT FEATURES

Off-Hook Voice Announce (OHVA)

Allows you to make an announcement to another station currently on a call.

This feature is useful when you have an urgent message to deliver to a station user.

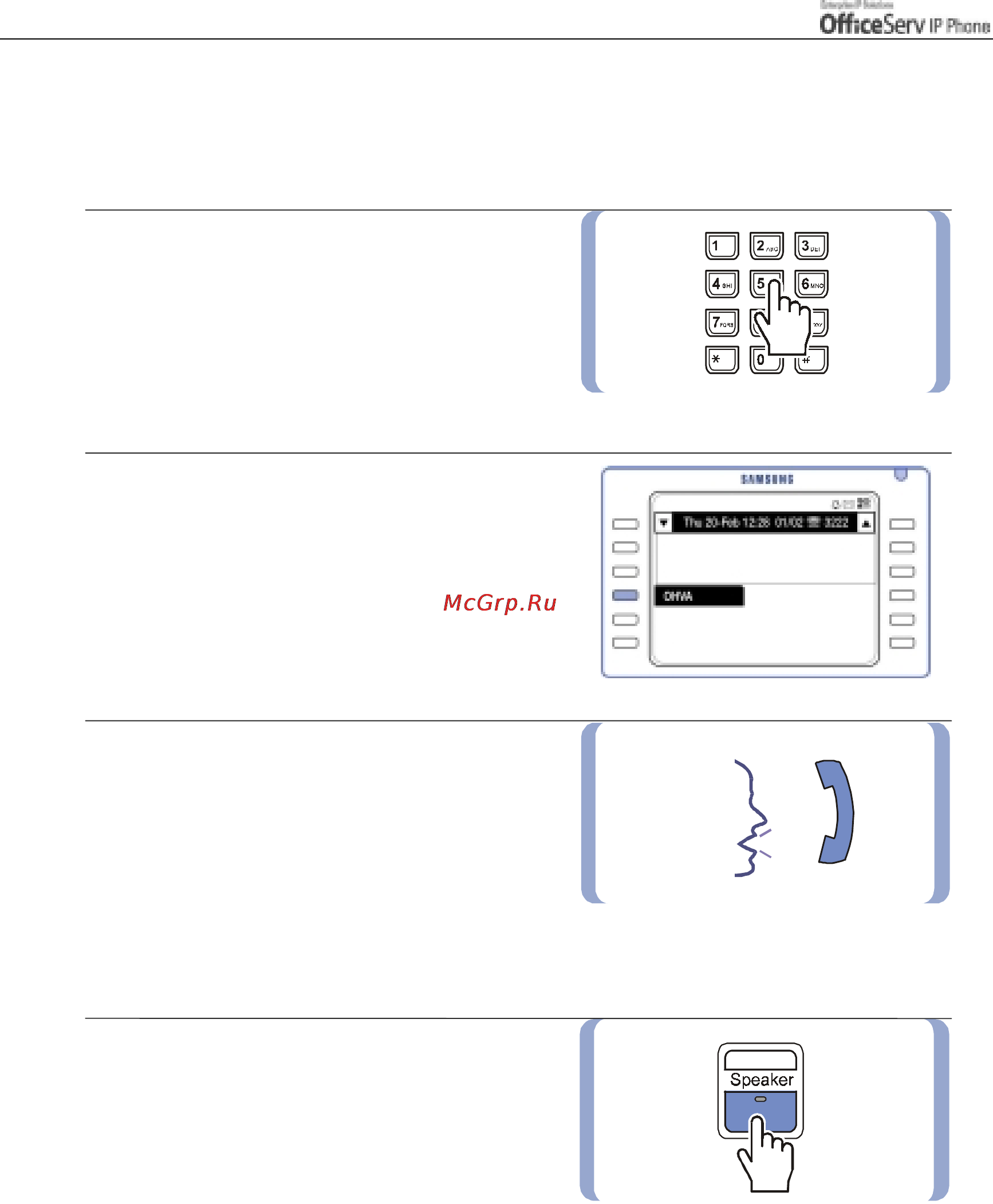

Dial the busy station.

After hearing the busy tone, press the

[Select]

button for

[OHVA]

After the warning tone,

deliver the announcement which will be heard

through the handset or the speaker on

the busy station.

Only the internal station will hear

the announcement, it will not be heard by

an external caller.

Disconnect the call by replacing the handset

or by pressing the

[Speaker]

button or

[End]

button.
