Samsung ITP5012L [66/164] Conference groups

Page 50

MAKIN

ALL

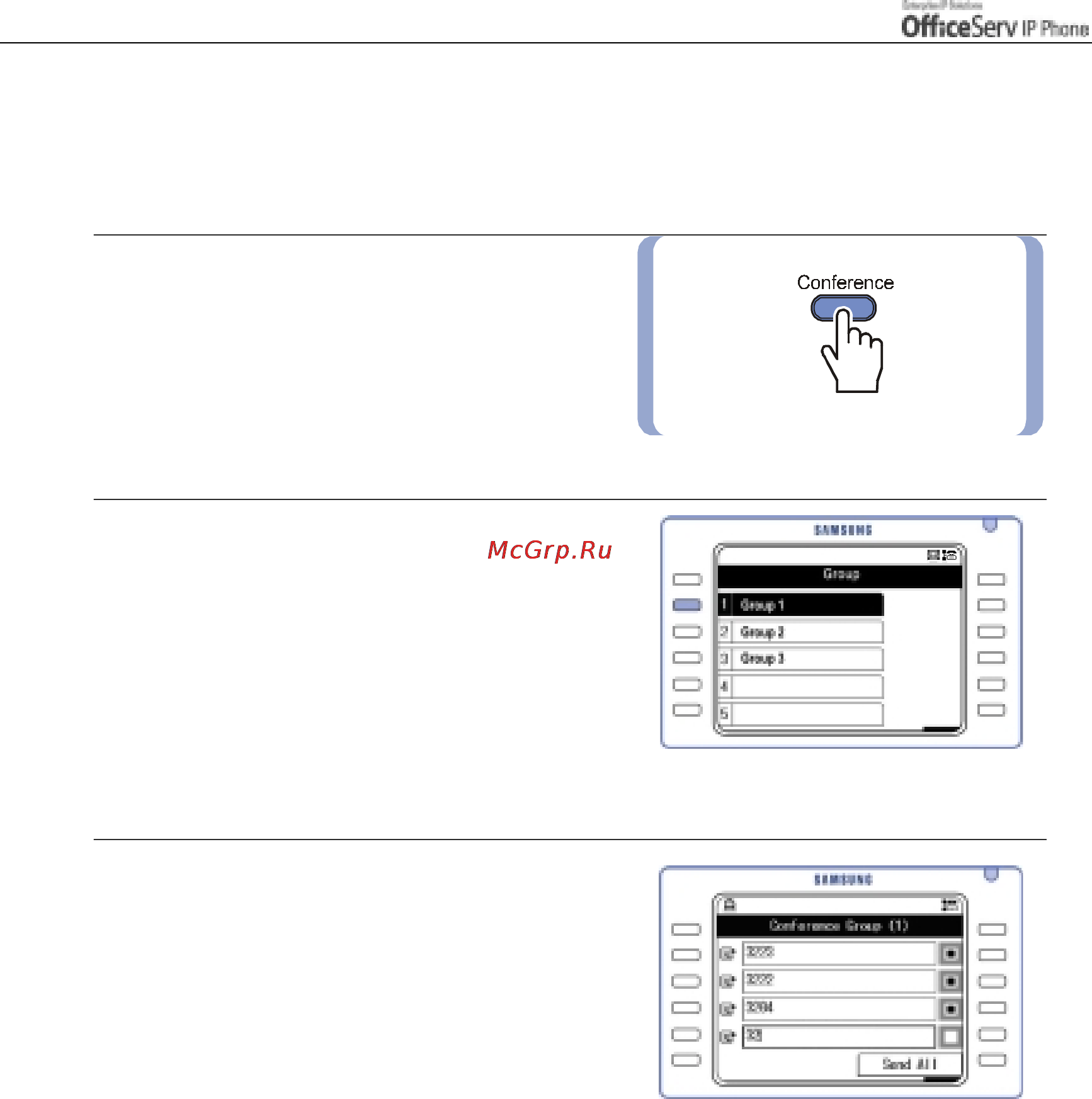

Conference Groups

You can establish a conference simply by selecting one of 5 possible groups and the conference will be setup

automatically. You can also review and edit the members of each group.

Press the

[Conference]

button

in the

standby mode.

Press the

[Select]

button

for

[Group]

in the conference screen to display

the group list.

You can load or delete a number in the

group by moving to the group and pressing

the [Menu] button.

Select [Save] to save the entered

number to the group.

Press the

[Select]

button for the required group

to display the members of the group.

Press the

[Select]

button for

[Send All]

to establish the conference.
