Samsung ITP5012L [93/164] Meet me page

Page 77

CONVENIENT FEATURES

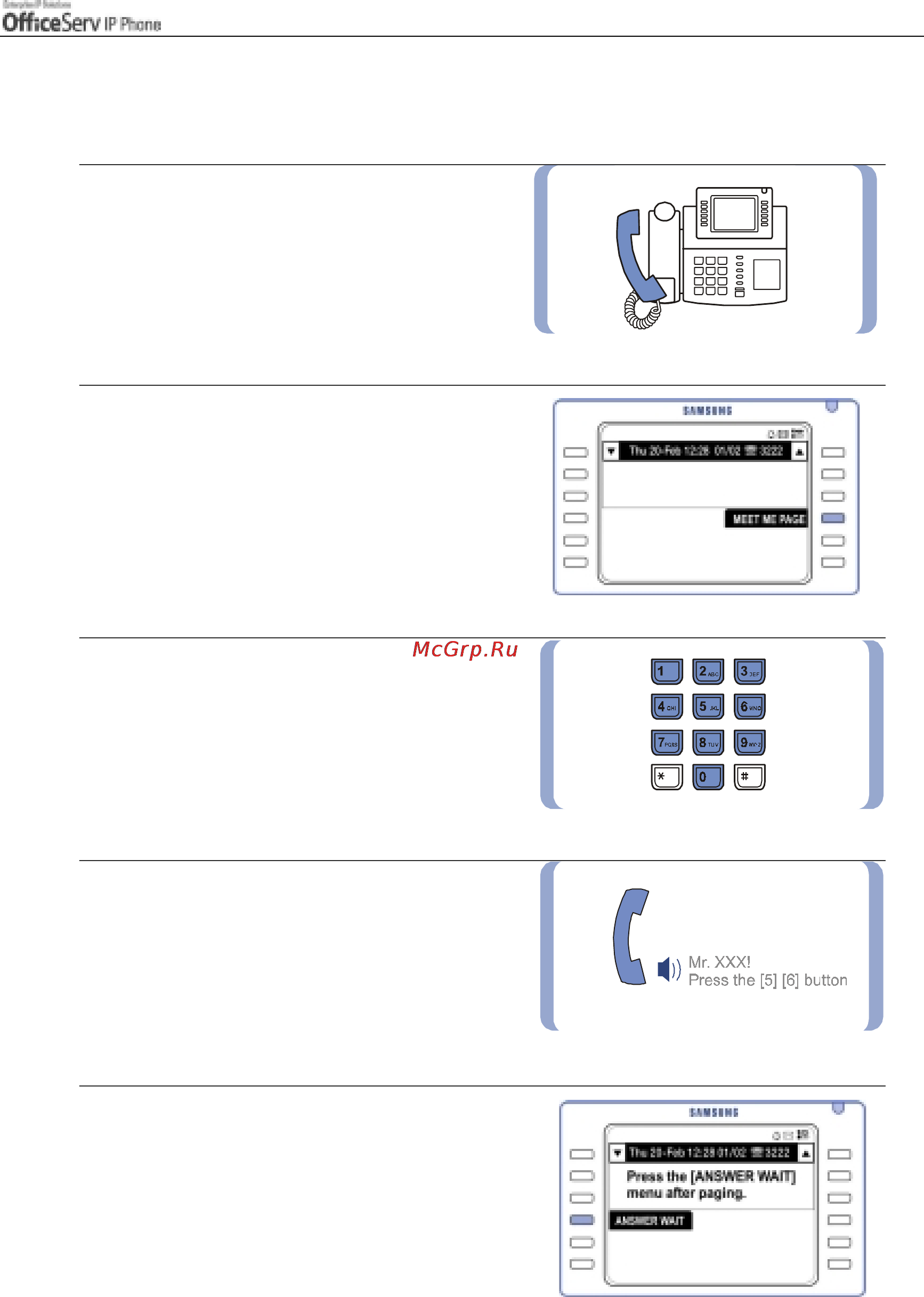

Meet Me Page

You can use page to find the recipient of a call.

Lift the handset.

Or, dial the Meet Me Page function code

[5][4].

Press the

[Select]

button for

[MEET ME PAGE]

displayed on

the screen.

Dial the page zone number(0~9).

After the confirmation tone advise the

the person you require to dial

[5][6]

The ‘Please press ANSWER WAIT’

message is displayed on the screen. Press

the

[Select]

button for

[ANSWER WAIT]

or Press [Transfer] followed by [5][4].
