Page 24
© SAMSUNG Electronics Co., Ltd.
THING
S
YOU
S
HOULD KNOW

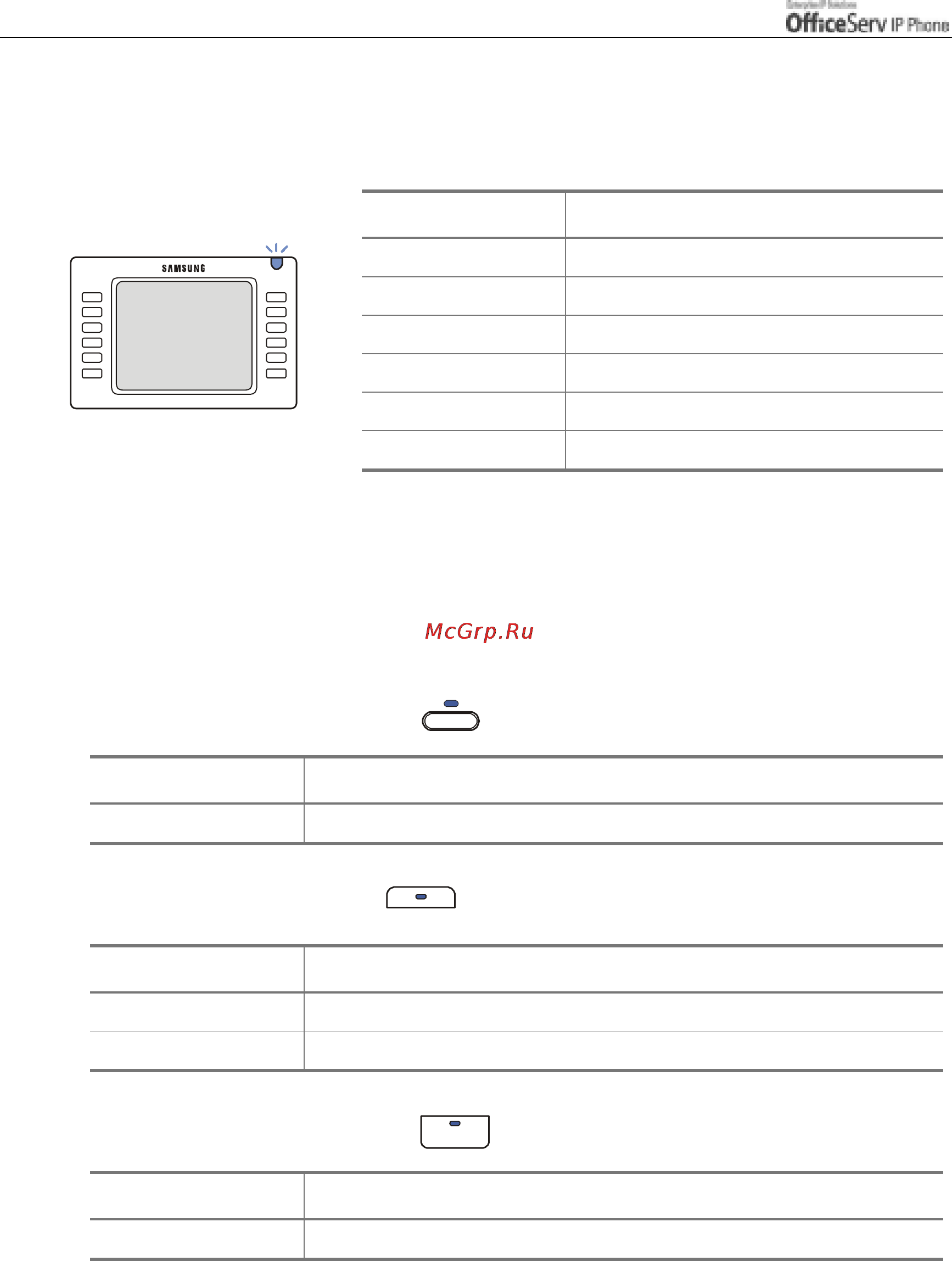

11. Telephone Status Indicator
The status indicator turns on or off according to the telephone status.
Situation Status Indicator
Busy Steady red.
Station Ring Flashing red.
Trunk Ring Flashing blue.
Recall Ring Flashing purple.
Message Camp On Flashing red.
DND Fast flashing red within 1-second interval.
12. Button LED
The [Transfer] button, [Hold] button, and [Speaker] button have a LED that turns on or off
according to the phone status.
"
[Transfer] button LED
"
""
"
"
""
"
"
""
"
"
""
"
LED Status Function
Steady red When ‘Forward All Calls’ is set or a Follow-me has been set.
"
[Hold] button LED
"
""
"
"
""
"
"
""
"
"
""
"
LED Status Function
Flashing red When the phone is locked for any outgoing Trunk call.
Steady red When the entire phone is locked.
"
[Speaker] button LED
"
""
"
"
""
"
"
""
"
"
""
"
LED Status Function
Steady red When the phone is used as a speakerphone.
Transfer
Hold
Speaker
